TH-EQ2 Series

SKU:

  • TH-43EQ2
  • TH-50EQ2
  • TH-55EQ2
  • TH-65EQ2
  • TH-75EQ2
  • TH-86EQ2
Featured Specs

TH-EQ2 Series 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.

Contact Sales

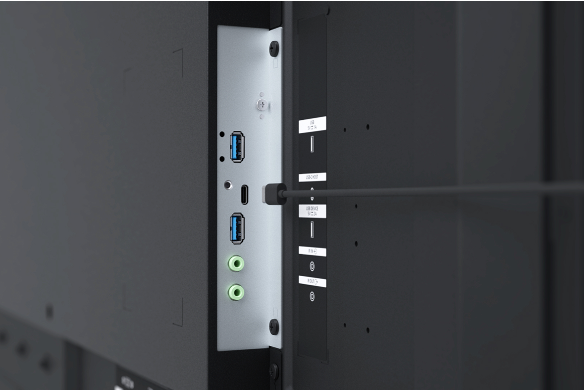

  • Easy to connect peripherals (camera/speaker) directly to display
  • Increased input type and number of available inputs
  • Function slot for increased functionality
  • Higher visibility due brightness typically found on higher end products

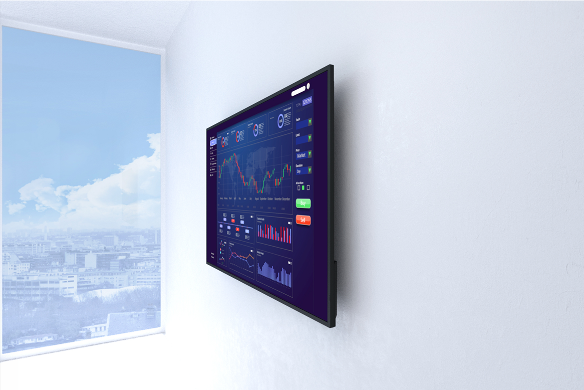

  • Installation flexibility – portrait and tilt supported

Featured Specs

SKU TH-43EQ2 TH-50EQ2 TH-55EQ2 TH-65EQ2 TH-75EQ2 TH-86EQ2
Screen size (diagonal) (inch) 42.5-inch (1079.8 mm)  49.5-inch (1257.3 mm) 54.6-inch (1387.8 mm) 64.5-inch (1638.9 mm) 74.5-inch (1892.7 mm) 85.6-inch (2174.2 mm)
Screen size (diagonal) (mm) 42.5-inch (1079.8 mm) 49.5-inch (1257.3 mm) 54.6-inch (1387.8 mm) 64.5-inch (1638.9 mm) 74.5-inch (1892.7 mm) 85.6-inch (2174.2 mm)
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9
Effective display area (W x H) (mm) 941.1 x 529.4 mm(37.05" x 20.84") 1095.8 x 616.4 mm(43.14" x 24.26") 1209.6 x 680.4 mm(47.62" x 26.78") 1428.4 x 803.5 mm(56.23" x 31.63") 1649.6 x 927.9 mm(64.94" x 36.53") 1895.0 x 1065.9 mm (74.60" x 41.96")
Effective display area (W x H) (inch) 941.1 x 529.4 mm(37.05" x 20.84") 1095.8 x 616.4 mm(43.14" x 24.26") 1209.6 x 680.4 mm(47.62" x 26.78") 1428.4 x 803.5 mm(56.23" x 31.63") 1649.6 x 927.9 mm(64.94" x 36.53") 1895.0 x 1065.9 mm (74.60" x 41.96")
Resolution  3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Brightness (typ.) 500 cd/m2 500 cd/m2 500 cd/m2 500 cd/m2 500 cd/m2 500 cd/m2
Contrast Ratio 1200 : 1 5000:1 1200 : 1 1200 : 1 1200 : 1 1200 : 1
Response Time 8.0 ms (G to G) 9.5 ms (G to G) 8.0 ms (G to G) 8.0 ms (G to G) 8.0 ms (G to G) 8.0 ms (G to G)
Viewing angle [(T/B)/(L/R)] 178°/178° (CR>10) 178°/178° (CR>10) 178°/178° (CR>10) 178°/178° (CR>10) 178°/178° (CR>10) 178°/178° (CR>10)
Panel Surface Treatment Anti-glare type (Haze 25%) Anti-glare type (Haze 25%) Anti-glare type (Haze 25%) Anti-glare type (Haze 25%) Anti-glare type (Haze 25%) Anti-glare type (Haze 25%)

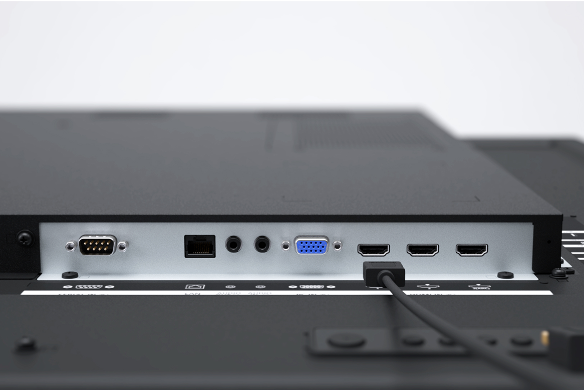

Terminals | HDMI IN TYPE A Connector x 3 (HDCP2.2 supported) TYPE A Connector x 3 (HDCP2.2 supported) TYPE A Connector x 3 (HDCP2.2 supported) TYPE A Connector x 3 (HDCP2.2 supported) TYPE A Connector x 3 (HDCP2.2 supported) TYPE A Connector x 3 (HDCP2.2 supported)
Terminals | PC IN/AUDIO IN (L/R) Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1
Terminals | Serial D-sub 9-pin x 1, RS232C Compatible D-sub 9-pin x 1, RS232C Compatible D-sub 9-pin x 1, RS232C Compatible D-sub 9-pin x 1, RS232C Compatible D-sub 9-pin x 1, RS232C Compatible D-sub 9-pin x 1, RS232C Compatible
Terminals | AUDIO OUT

Stereo Mini Jack (M3) x 1

 Stereo Mini Jack (M3) x 1 Stereo Mini Jack (M3) x 1 Stereo Mini Jack (M3) x 1 Stereo Mini Jack (M3) x 1 Stereo Mini Jack (M3) x 1
Terminals | LAN RJ45 x 1, RJ45 10BASE-T/100BASE-TX RJ45 x 1, RJ45 10BASE-T/100BASE-TX RJ45 x 1, RJ45 10BASE-T/100BASE-TX RJ45 x 1, RJ45 10BASE-T/100BASE-TX  RJ45 x 1, RJ45 10BASE-T/100BASE-TX RJ45 x 1, RJ45 10BASE-T/100BASE-TX
Terminals | USB Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD) Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD) Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD) Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD) Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD) Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD)
Terminals | Slot SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A
Built-in Speaker 20W [10 W + 10 W] 20W [10 W + 10 W] 20W [10 W + 10 W] 20W [10 W + 10 W] 20W [10 W + 10 W] 20W [10 W + 10 W]
Power Requirements AC 110 - 240 V 50 Hz / 60 Hz AC 110 - 240 V 50 Hz / 60 Hz AC 110 - 240 V 50 Hz / 60 Hz AC 110 - 240 V 50 Hz / 60 Hz AC 110 - 240 V 50 Hz / 60 Hz AC 110 - 240 V 50 Hz / 60 Hz
Power consumption TBD TBD TBD TBD TBD TBD
Power Off Condition Approx. 0.3 W Approx. 0.3 W Approx. 0.3 W Approx. 0.3 W Approx. 0.3 W Approx. 0.3 W
Standby Condition Approx. 0.5 W Approx. 0.5 W Approx. 0.5 W Approx. 0.5 W Approx. 0.5 W Approx. 0.5 W
Dimensions (W x H x D) (mm) 973 x 562 x 65*mm(38.31" x 22.10" x 2.56"*) (TBD)*Not including handles. 1129 x 649 x 66* mm(44.43" x 25.56" x 2.60"*) (TBD)*Not including handles. 1242 x 713 x 66 mm(48.89" x 28.06" x 2.60") (TBD)*Not including handles. 1463 x 838 x 69 mm(57.58" x 32.97" x 2.72") (TBD)*Not including handles. 1684 x 962 x 70* mm(66.28" x 37.87" x 2.74"*) (TBD)*Not including handles. 1929 x 1100 x 70* mm(75.95" x 43.31" x 2.74"*) (TBD)
*Not including handles.
Dimensions (W x H x D) (inch) 973 x 562 x 65＊ mm(38.31" x 22.10" x 2.56"*) (TBD)*Not including handles. 1129 x 649 x 66* mm(44.43" x 25.56" x 2.60"*) (TBD)*Not including handles. 1242 x 713 x 66 mm(48.89" x 28.06" x 2.60") (TBD)*Not including handles. 1463 x 838 x 69 mm(57.58" x 32.97" x 2.72") (TBD)*Not including handles. 1684 x 962 x 70* mm(66.28" x 37.87" x 2.74"*) (TBD)*Not including handles. 1929 x 1100 x 70* mm(75.95" x 43.31" x 2.74"*) (TBD)
*Not including handles.
Weight (kg) 12 kg (26.0 lbs.) (TBD) 16 kg (34 lbs.) (TBD) 18 kg (38.4 lbs.) (TBD) 29 kg (63.9 lbs.) 37 kg (81.1 lbs.) (TBD) 50 kg (109.8 lbs.) (TBD)
Weight (lbs.) 12 kg (26.0 lbs.) (TBD) 16 kg (34 lbs.) (TBD) 18 kg (38.4 lbs.) (TBD) 29 kg (63.9 lbs.) 37 kg (81.1 lbs.) (TBD) 50 kg (109.8 lbs.) (TBD)
Bezel width (mm) 13.9 mm (0.55") (T/R/L/B) 14.9 mm (0.59") (T/R/L/B) 13.9 mm (0.55") (T/R/L/B) 14.9 mm (0.59") (T/R/L/B) 14.9 mm (0.59") (T/R/L/B) 15.5 mm (0.61") (T/R/L/B)
Bezel width (inch) 13.9 mm (0.55") (T/R/L/B) 14.9 mm (0.59") (T/R/L/B) 13.9 mm (0.55") (T/R/L/B) 14.9 mm (0.59") (T/R/L/B)  14.9 mm (0.59") (T/R/L/B) 15.5 mm (0.61") (T/R/L/B)
Wall-hanging pitch (mm) VESA Compliant 200 x 200 mm(7.9" x 7.9"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M8 VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8 VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8
Wall-hanging pitch (inch) VESA Compliant 200 x 200 mm(7.9" x 7.9"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M6 VESA Compliant 400 x 400 mm(15.8" x 15.8"), M8 VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8 VESA Compliant 600 x 400 mm(23.6" x 15.8"), M8
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Tilting angle 0 - 20 degrees forward/backward with landscape/portrait setting 0 - 20 degrees forward/backward with landscape/portrait setting 0 - 20 degrees forward/backward with landscape/portrait setting 0 - 20 degrees forward/backward with landscape/portrait setting 0 - 20 degrees forward/backward with landscape/portrait setting 0 - 20 degrees forward/backward with landscape/portrait setting
Operating Time 18 h/day 18 h/day 18 h/day 18 h/day 18 h/day 18 h/day
Operating environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft) Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)

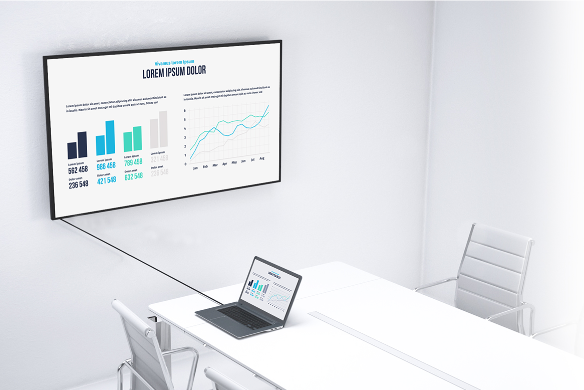

High visibility and installation properties

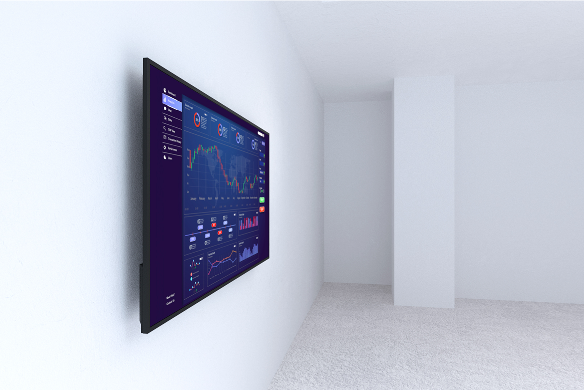

With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, the EQ2 Series is ideal for conference rooms, classrooms and open spaces such as receptions and shopping malls. The ability to position the display in portrait or landscape mode, with up to a 20-degree tilt angle and 18 hours continuous operation also makes the Series perfect for information display.

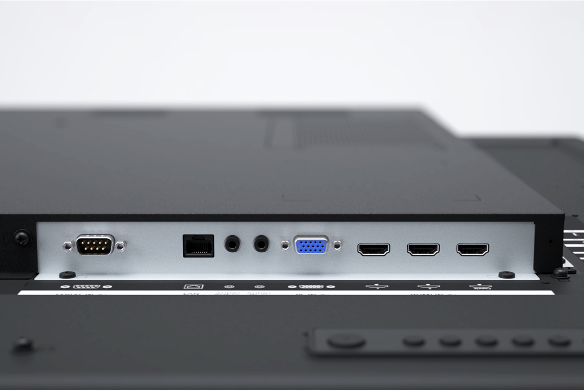

Scalability that enables cooperation with various systems

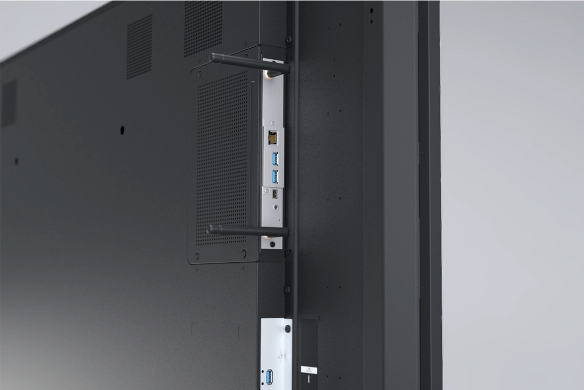

The EQ2 Series supports the Intel® SDM (Smart Display Module) specification slot, which can be used with the receiver board version of Panasonic's wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK. Equipped with HDMI (x 3), PC and USB Type-C video input terminals, it can connect external devices according to the usage environment.

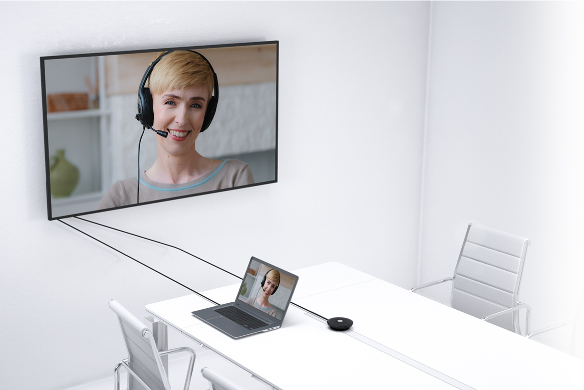

Enhanced functions useful for communication

Enhanced functions useful for communication

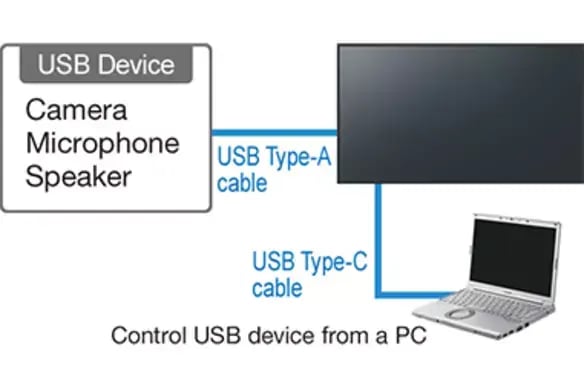

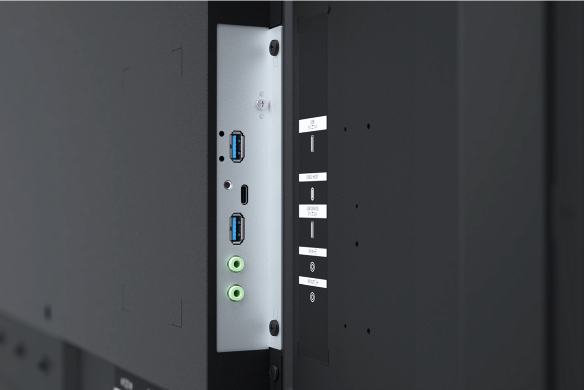

Features a built-in whiteboard function to annotate the display screen and zoom in and out using a mouse. USB devices can be connected to the display via a USB Type-A cable and controlled using a PC connected to the EQ2 via the USB Type-C port. This functionality, for example, is ideal for a simple and quick start to video conferences. If a camera or speakerphone is permanently connected to the display in a conference room, a user can just plug in their PC and immediately control all devices to start the meeting.

Elaborate 4K Picture Quality Down to the Tiniest Details

With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.

4K vs. Full-HD Resolution

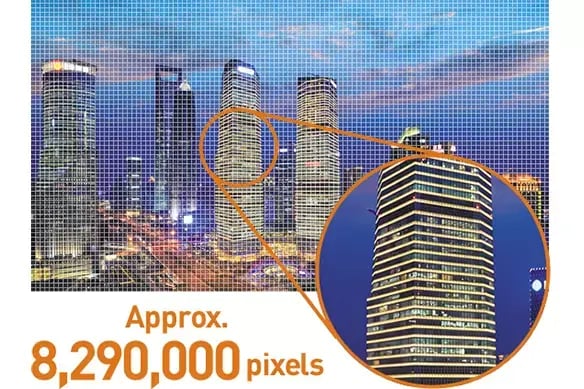

eq2-series-4k-resolution
4K Resolutoin

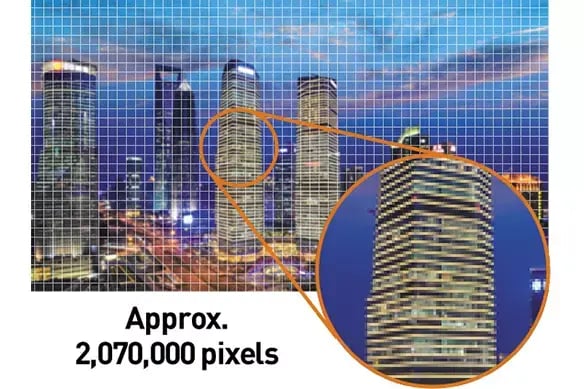

eq2-series-full-hd-resolution
Full-HD Resolution
The EQ2 Series displays 4K resolution images at a brightness of 500

Ensures high visibility even in bright rooms

The EQ2 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.
