All-In-One Direct View LED Display
SKU:
- TL-137AD15AW
- TL-165AD19AW
- User-friendly all-in-one model designed for convenience.
- Long-term operation with stability
- Efferently installation and expandability
An All-In-One DvLED Display Built for Convenience
The AD Series is an all-in-one DvLED display that ships with everything needed for installation, including the display panel, power box, control box, complete cable set, and mounting hardware. Modules are assembled and calibrated at the factory before shipping, so color and alignment stay consistent from unit to unit, and setup and day-to-day operation work just like a commercial display, right down to the included remote controller.
High Visibility and a Wide Color Gamut in Any Room
700 cd/m² brightness keeps images clear and easy to read even in brightly lit rooms, so there's no need to dim the lights for a presentation or meeting. A wide color gamut, characteristic of LED displays, reproduces texture and depth realistically, and a built-in color gamut conversion function faithfully renders content created for LCD or smartphone color spaces.
Stable, Reliable Performance for 24-Hour Environments
Panasonic's proprietary APL (Average Picture Level) power control adjusts brightness to match displayed content, and a built-in illumination sensor tunes brightness to the room, balancing visibility with energy efficiency. Highly reliable parts support continuous 24-hour operation, and a humidity sensor gradually raises brightness on startup in humid conditions to help prevent lighting failures.
Lightweight, Semi-Assembled Design for Faster Installation
A thinner, lighter cabinet reduces the load on the wall and the effort of installation, without sacrificing structural strength. Because the AD Series ships semi-assembled, with modules already adjusted at the factory, gaps and color misalignment between modules are minimized and installation time is shortened.
Reliability Features Built into Every Display
From startup to everyday operation, the AD Series is engineered to keep images consistent and downtime low.
-
Burn-In Prevention & Brightness Correction: Shifts screen pixels at fixed intervals and corrects brightness degradation in affected areas, keeping images uniform and easy to view over time.
-
Humidity Sensor Warm-Up: Gradually increases brightness on startup in humid conditions, using self-heating to reduce internal humidity and minimize stress on LED elements.
-
Illumination Sensor Power Control: Automatically adjusts display brightness to match ambient room light, reducing power consumption without sacrificing visibility.
-
Front-Access Repair: LED modules can be removed and replaced from the front of the display, minimizing downtime and allowing installation even where rear access is limited.
Expand and Scale to Fit Your Space
Two Intel® SDM expansion slots let you add function boards as your needs grow, extending the display's interfaces and capabilities over time. Multiple units can also be combined seamlessly, without visible joints, into larger NxN configurations for expanded screen real estate.²
Centralized Control Across Your Network
The included remote controller supports power, input switching, and other everyday operations from across the room. For larger deployments, the AD Series can be controlled over LAN or serial connection, with simultaneous control and centralized management across a network, and compatibility with AMX and Crestron Connected™ systems.
Two Sizes to Fit Your Space

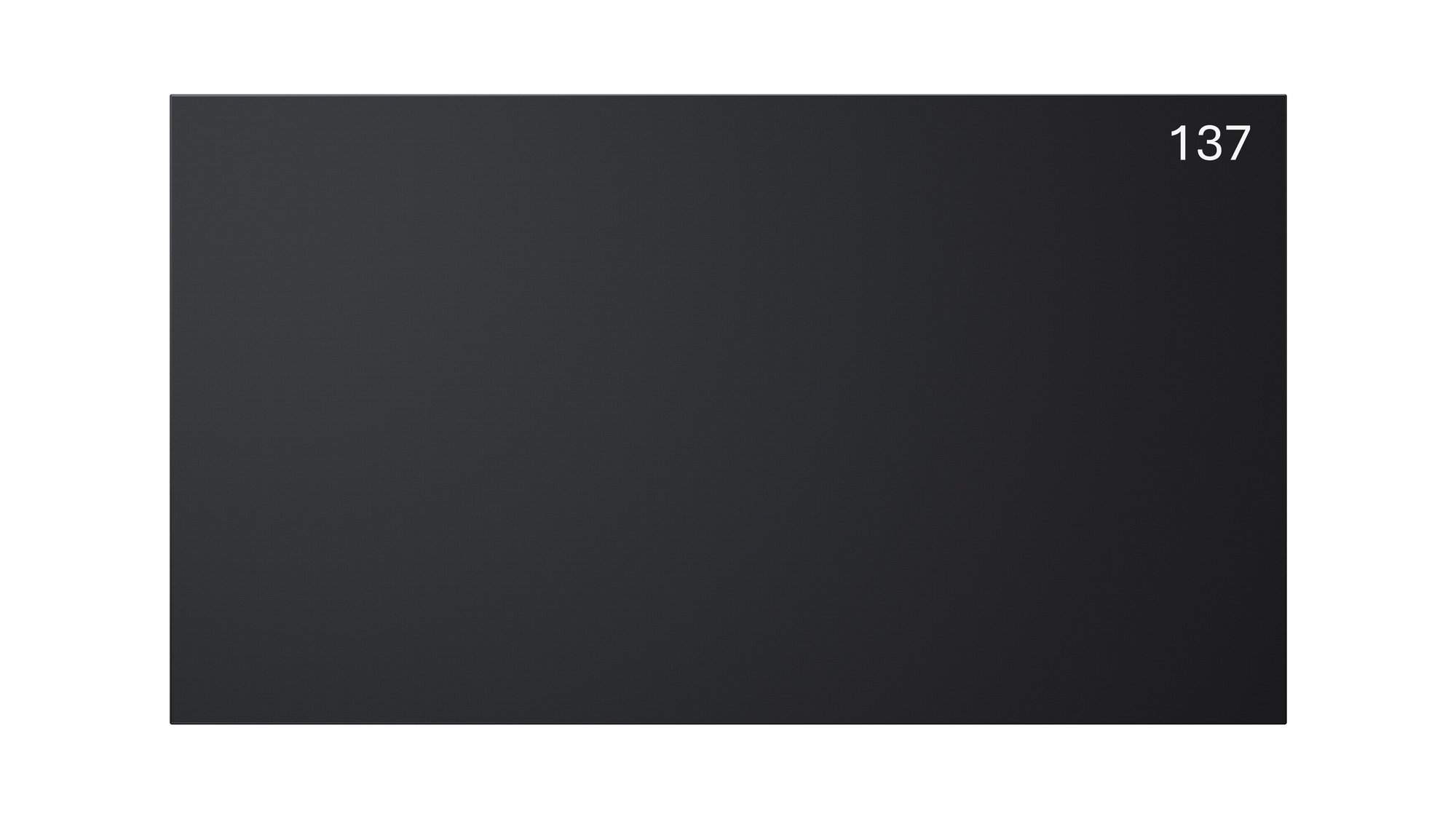

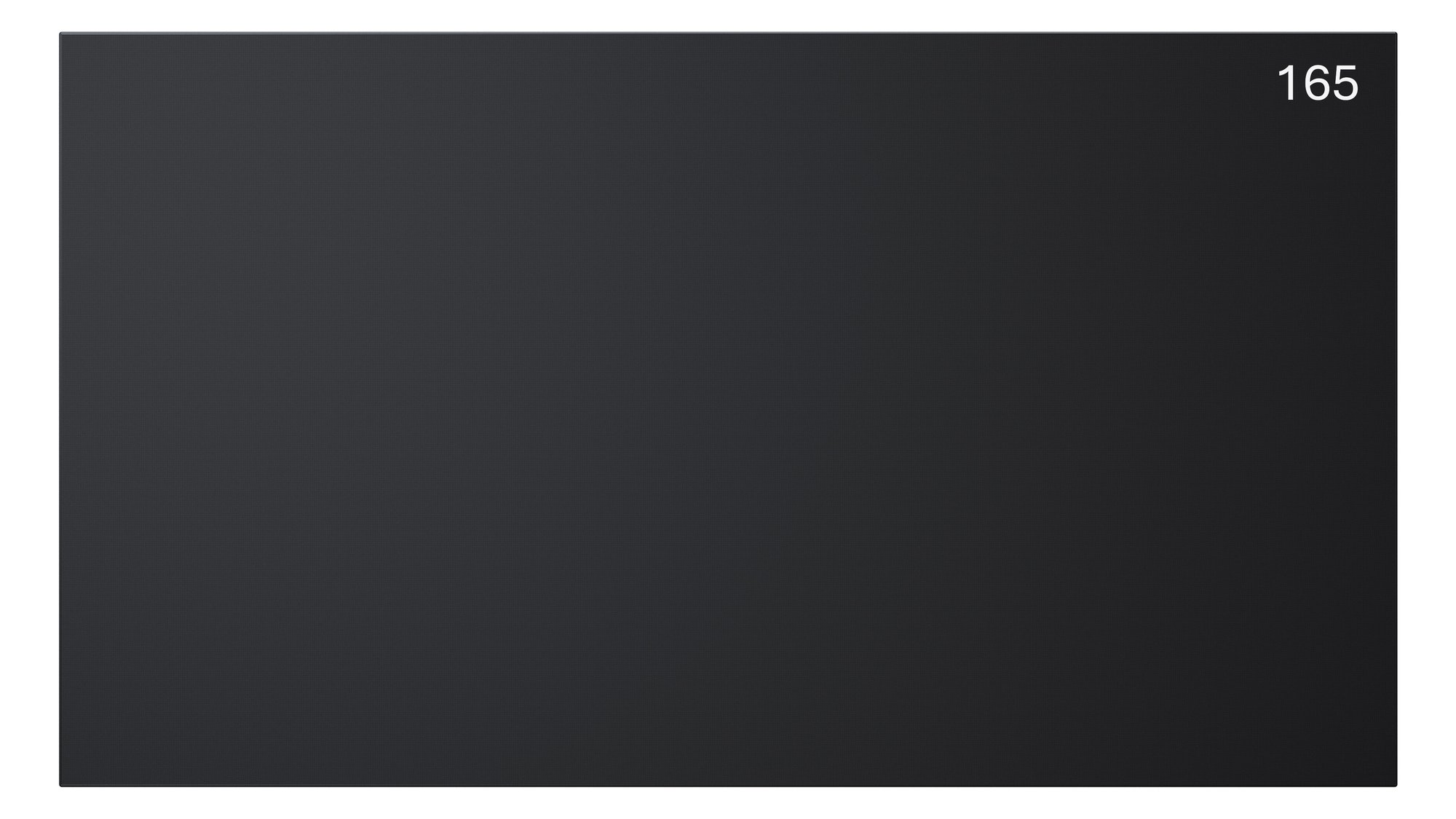

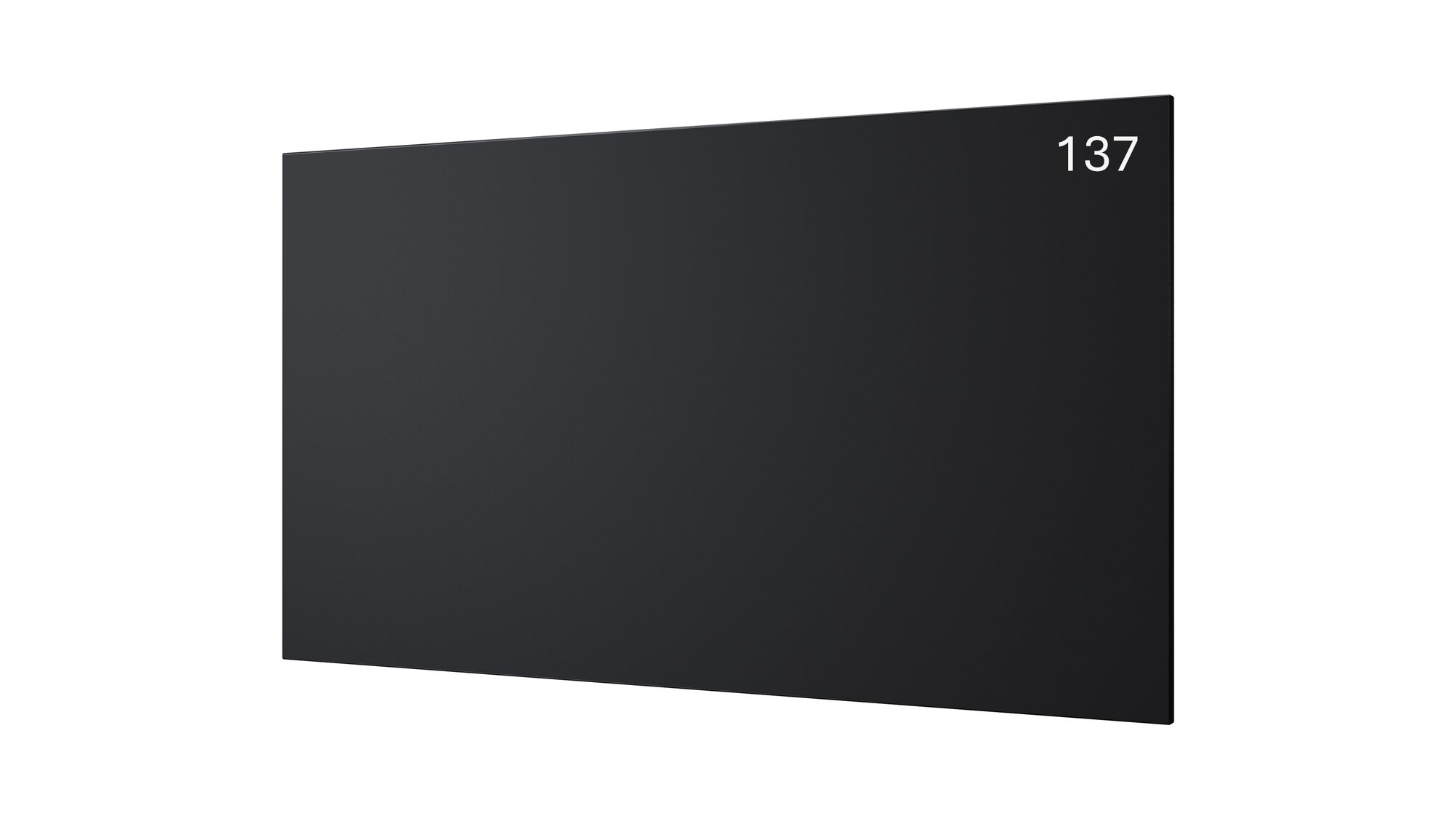

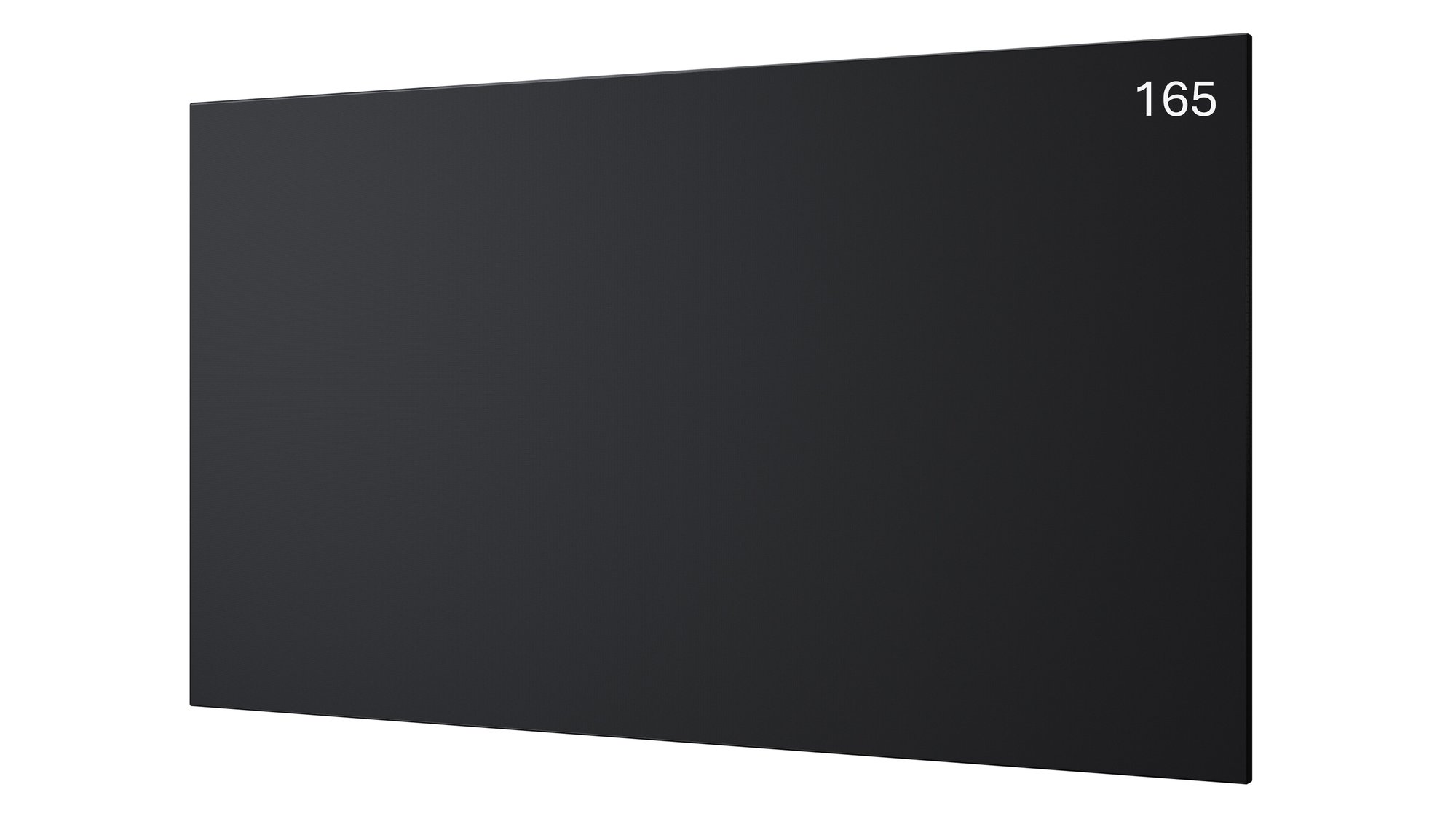

The AD Series is available in two sizes for North America: the 137-inch TL-137AD15AW and the 165-inch TL-165AD19AW, both delivering 700 cd/m² brightness at 1920 x 1080 resolution.³ Choose the size that fits your room, then scale further with multiple units when the space calls for it.
