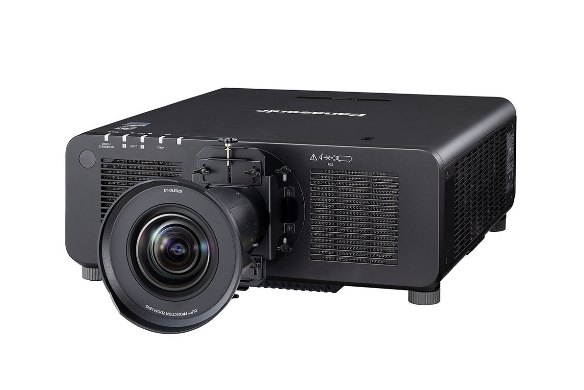

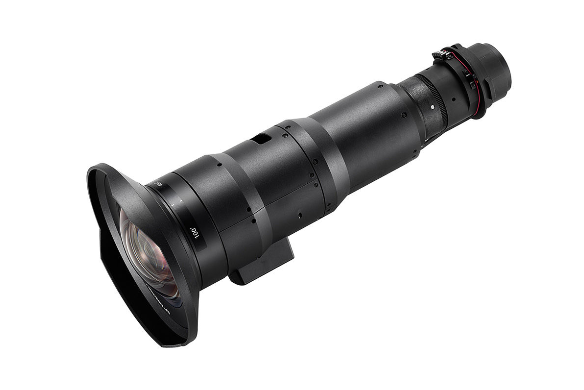

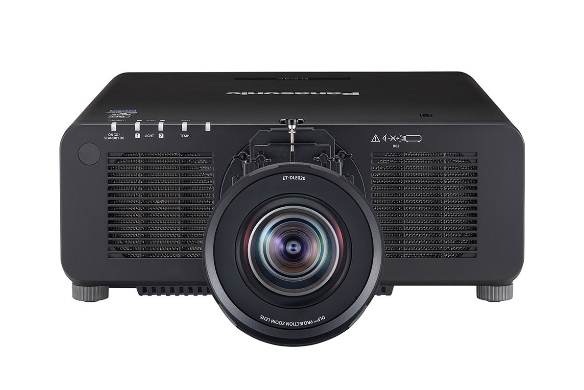

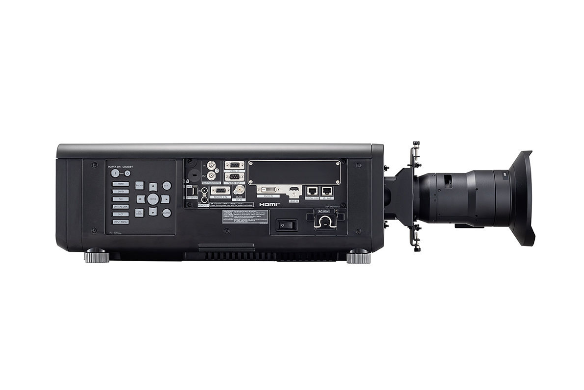

ET-DLE020 Ultra Short Throw Zoom Lens
1-Chip DLP™ Projector Ultra Short Throw Zoom Lens with a 0.280-0.299:1 throw ratio (WUXGA) capable of projecting on 100-400 inch diagonal screen sizes
Brochures (EN)
CAD Data
Spec Files
Featured Specs
| SKU | ET-DLE020 |
|---|---|
| Lens type | Ultra-Short-Throw Zoom Lens |
| F value | 2.0 |
| Focal Length | (f) 4.1-4.4 mm |
| Screen size | 100-400 inches |
| Throw ratio | WUXGA | 0.280-0.299:1 |
| Lens-shift*1 | Vertical | +50 % – -16 % |
| Lens-shift*1 | Horizontal | +10 % – -20 % |
| Zoom | Yes |
| Dimensions (W×H×D) | 170 × 170 × 389 mm ( 6 11/16˝ x 6 11/16˝ x 15 13/32˝ ) |
| Weight | Approx. 3.2 kg (7.05 lbs) |
| Note | 1 Value is for ceiling installations at WUXGA resolution. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information: https://panasonic.net/cns/projector/calculator/tdc/. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value. *2 Please use this product with the included lens-bracket attachment. |
| Throw ratio | WXGA | 0.294–0.314:1 |
| Applicable projectors*2 | PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ870 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 |
| Throw ratio | XGA | 0.290–0.309:1 |
