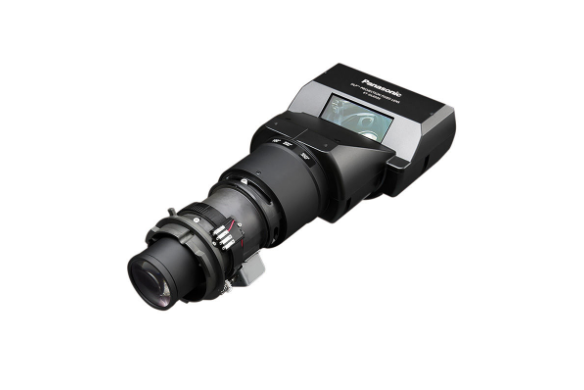

ET-DLE035 1-Chip DLP™ Projector Ultra Short Throw Lens
0.380:1 throw ratio (WUXGA) Ultra Short Throw Lens capable of projecting on 100-350 inch diagonal screen sizes.
- Sreen diagonal: 100 to 350 inch
- Lenses can be used in both vertical and horizontal edge blending
- Throw ratio:
0.38:1 with WUXGA
0.40:1 with WXGA
0.39:1 with XGA projectors
Featured Specs
| SKU | ET-DLE035 |
|---|---|
| F value | 2.0 |
| Throw ratio | WUXGA 0.380:1 for PT-RZ120/RZ970/RZ870/RZ770/RZ660/DZ870/DZ780 (16:10 aspect ratio) WXGA 0.399:1 for PT-RW930/RW730/RW620/DW830/DW750 (16:10 aspect ratio) XGA 0.394:1 for PT-RX110/DX100/DX820 (4:3 aspect ratio) |
| Weight (kg) | 1.3 kg |
| Focal distance (f) | 5.3 mm |
| Dimensions (W x H x D) (mm) | 132 × 102 × 311 mm |
| Dimensions (W x H x D) (inch) | 5-3/16 × 4-1/32 × 12-1/4 inches) |
| Weight (lbs.) | 3.1 lbs |
