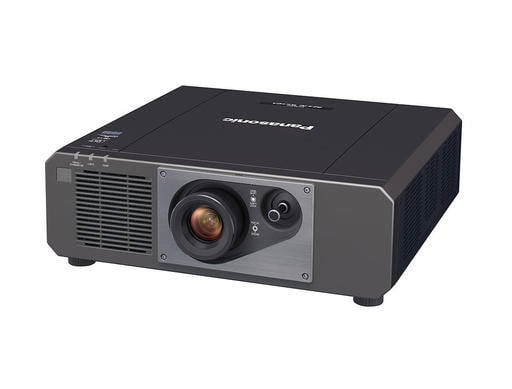

5,200-6,000lm WUXGA 1-Chip DLP™ Projectors
From classrooms to corporate boardrooms, information sharing and collaboration are essential to creating a productive environment. However, too often the tools educators and businesses rely on are difficult to navigate, see and hear. To maximize learning and productivity, clear, bright visuals in well-lit rooms with minimal noise are essential.
The PT-FRZ60 Series compact and lightweight projectors are engineered for these purposes, providing highly visible images under bright lights along with very low noise operation. The FRZ60 series also offers easy, flexible 360° installation and 2.0x optical zoom to increase throw-distance range, enabling the projectors to be installed almost anywhere. To assist collaborative and group work conditions, the PT-FRZ60 projectors support a 4K signal input via DIGITIAL LINK and HDMI® terminals with CEC compatibility. Additionally, because classrooms and corporate spaces require reliable, consistent operation, the PT-FRZ60 projectors provide a filter-less cooling system, a sealed DMD along with a dust-resistant laser drive for virtually 20,000 hours of 24/7 maintenance-free operation.
- Laser 1-chip DLP, 6,200 lumens (center), WUXGA
- DLP™ imaging technology, Quartet Color Harmonizer, Rich Color Enhancer, and digitally modulated Dynamic Contrast 2 optimization
- Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
- Flexible 2.0x zoom lens (1.46 – 2.94:1) with V/H Lens-Shift
- Support uncompressed 4K/60p input signals via HDCP 2.2-compliant HDMI® inputs or DIGITAL LINK terminal
Featured Specs
| SKU | PT-FRZ60U | PT-FRZ50U |
|---|---|---|
| Dimensions (W x H x D) | 498 x 168*5 x 481 mm (19 5/8˝ x 6 5/8˝*5 x 18 15/16˝ ) | 498 x 168*5 x 492 mm (19 5/8˝ x 6 5/8˝*5 x 19 3/8˝ ) |
| Power consumption | TBD | TBD |
| LENS | 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm | 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm |
| Resolution | 1920 x 1200 pixels | 1920 x 1200 pixels |
| Operating environment | Operating temperature: 0–40 °C (32–104 °F),operating humidity: 10–80 % (no condensation) (TBD) | Operating temperature: 0–45 °C (32–113 °F),operating humidity: 10–80 % (no condensation) (TBD) |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±20 °. When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,correction cannot be made exceeding a total of ±60 °. | Vertical: ±40 °, Horizontal: ±20 °. When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,correction cannot be made exceeding a total of ±60 °. |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | Ceiling/floor, front/rear, free 360-degree installation |
| Cabinet materials | Molded plastic | Molded plastic |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software |
| Contrast Ratio*1 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON) | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON) |
| Power supply | AC 100–240 V, 50/60 Hz | AC 100–240 V, 50/60 Hz |
| Light source | Laser diodes | Laser diodes |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| DLP™ chip | Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| DLP™ chip | Display method | DLP™ chip x 1, DLP™ projection system | DLP™ chip x 1, DLP™ projection system |
| Terminals | HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*4 ), CEC supported | HDMI 19-pin x 2 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*4 ), CEC supported |
| Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible,4K/60p signal input*4 | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible,4K/60p signal input*4 |
| Light output | 6,000 lm*1/6,200 lm (Center)*2 | 5,200 lm*1/5,400 lm (Center)*2 |
| Operation noise*1 | 30 dB (Quiet Mode) (TBD), 35 dB (Normal Mode) (TBD) | 27 dB (Quiet Mode) (TBD), 32 dB (Normal Mode) (TBD) |
| Projector type | 1-Chip DLP™ projector | 1-Chip DLP™ projector |
| DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) | 2,304,000 (1920 x 1200 pixels) |
| Screen size [diagonal] | 1.02–7.62 m (40–300 in), 16:10 aspect ratio | 1.02–7.62 m (40–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 90 % | 90 % |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL) | 20,000 hours (NORMAL) |
| Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment. *4 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. *5 With legs at shortest position. *6 Average value. May differ depending on the actual unit. | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment. *4 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. *5 With legs at shortest position. *6 Average value. May differ depending on the actual unit. |
| Weight*6 | Approx. 16.6 kg (36.6 lbs) (TBD) | Approx. 16.3 kg (35.9 lbs) (TBD) |
| Terminals | COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC) |
| Terminals | AUDIO IN 1 | Pin jack x 2 (L, R) | Pin jack x 2 (L, R) |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | USB | USB connector (Type A) x 1 (Output 5 V/2 A) | |
| Terminals | AUDIO OUT | M3 x 1 (Variable) | M3 x 1 (Variable) |
| Terminals | Computer 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC) |
| Lens shift | Vertical(From the origin point of the lens mounter) | +64 %, -44 % (manual) | +64 %, -44 % (manual) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | +34 %, -27 % (manual) | +34 %, -27 % (manual) |
| Terminals | Audio In 2/3 | M3 x 1/M3 x 1 | M3 x 1/M3 x 1 |
