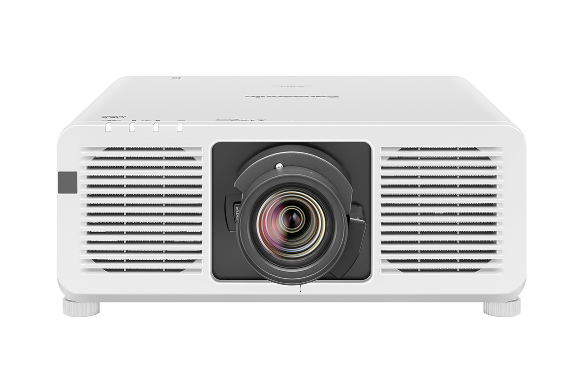

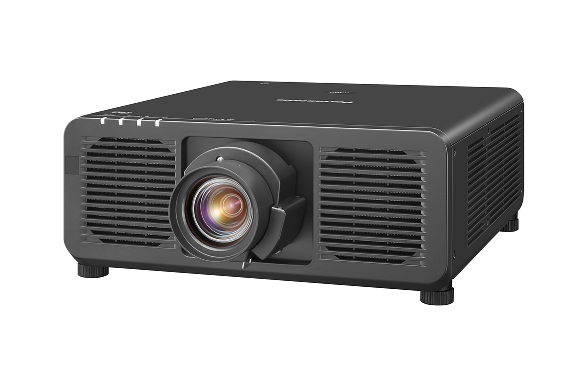

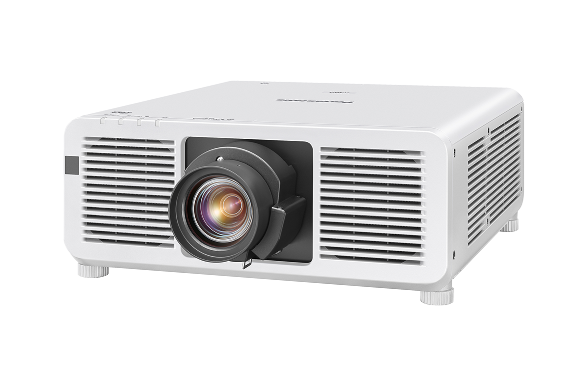

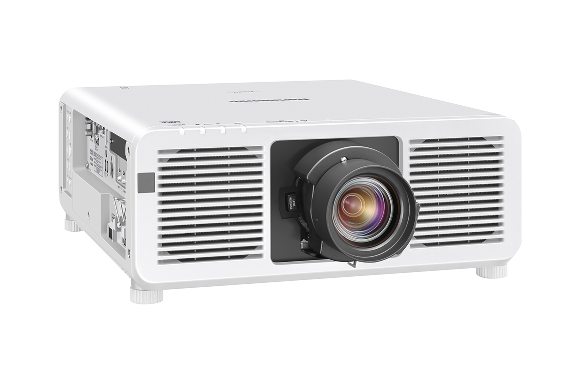

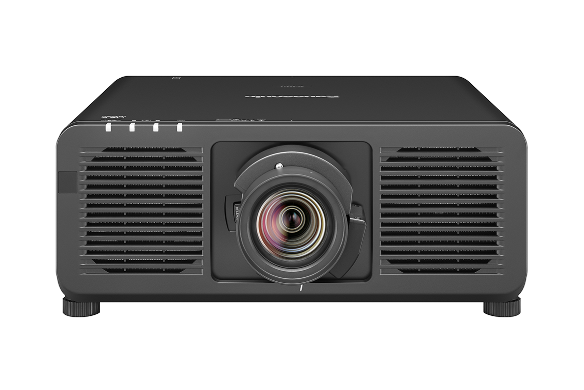

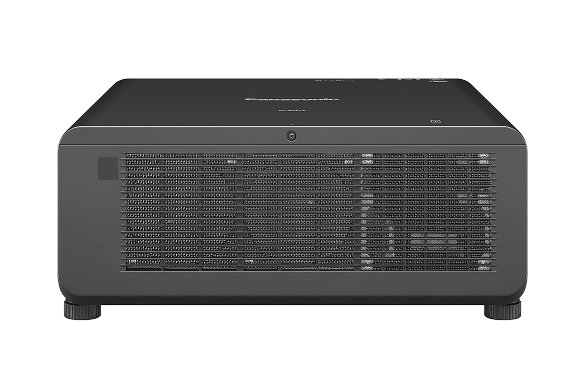

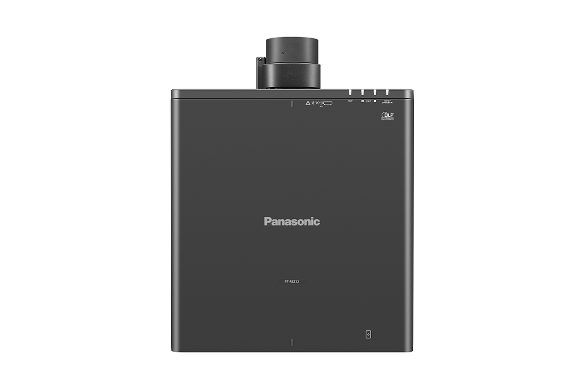

8,000-12,000lm WUXGA 1-Chip DLP™ Projectors
8,000- 12,000lm WUXGA 1-Chip DLP™ Projectors Transform Your Experience with a Smooth, Frictionless Workflow
The PT-REZ12 Series of 1-Chip DLP™ Laser Projectors are designed to streamline events and live productions by delivering exceptional, highly engaging immersive experiences with up to 12,000lm brightness.
Featured Specs
| SKU | PT-REZ12KU | PT-REZ10KU | PT-REZ80KU |
|---|---|---|---|
| Dimensions (W x H x D) * | PT-REZ12/REZ10/REZ80: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position) |
PT-REZ12/REZ10/REZ80: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position)PT-REZ12L/REZ10L/REZ80L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position) | PT-REZ12/REZ10/REZ80: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position) PT-REZ12L/REZ10L/REZ80L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position) |
| LENS * | PT-REZ12/REZ10/REZ80: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens), powered focus; PT-REZ12L/REZ10L/REZ80L: Optional powered zoom/focus lenses | PT-REZ12/REZ10/REZ80: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens), powered focus; PT-REZ12L/REZ10L/REZ80L: Optional powered zoom/focus lenses |
PT-REZ12/REZ10/REZ80: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens), powered focus; PT-REZ12L/REZ10L/REZ80L: Optional powered zoom/focus lenses |
| Resolution * | WUXGA (1920 x 1200 pixels) | WUXGA (1920 x 1200 pixels) | WUXGA (1920 x 1200 pixels) |
| Operating environment * | Operating temperature: 0–45 °C (32–113 °F)*9, operating humidity: 10–80 % (no condensation) | Operating temperature: 0–45 °C (32–113 °F)*9, operating humidity: 10–80 % (no condensation) | Operating temperature: 0–45 °C (32–113 °F)*9, operating humidity: 10–80 % (no condensation) |
| Keystone correction range * | Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500), |
Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500),Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500) | Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500),Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500) |
| Screen Size (Diagonal) * | 70–700 inches (with supplied lens) | 70–700 inches (with supplied lens) | 70–700 inches (with supplied lens) |
| Contrast Ratio*1 * | 25,000:1 (Full On/Full O , Dynamic Contrast [3]) | 25,000:1 (Full On/Full O , Dynamic Contrast [3]) | 25,000:1 (Full On/Full O , Dynamic Contrast [3]) |
| Note * | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. *2 When [OPERATING MODE] is set to [NORMAL]. *3 Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode. *4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. The estimated time until light output declines to 50 % varies depending on the environment. *5 4K signals are converted to WUXGA (1920 x 1200 pixels). *6 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *8 Average value. May differ depending on the actual unit. *9 When the optional AJ-WM50 Series wireless module is attached, the operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. *2 When [OPERATING MODE] is set to [NORMAL]. *3 Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode. *4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. The estimated time until light output declines to 50 % varies depending on the environment. *5 4K signals are converted to WUXGA (1920 x 1200 pixels). *6 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *8 Average value. May differ depending on the actual unit. *9 When the optional AJ-WM50 Series wireless module is attached, the operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped. *2 When [OPERATING MODE] is set to [NORMAL]. *3 Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode. *4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. The estimated time until light output declines to 50 % varies depending on the environment. *5 4K signals are converted to WUXGA (1920 x 1200 pixels). *6 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *8 Average value. May differ depending on the actual unit. *9 When the optional AJ-WM50 Series wireless module is attached, the operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). |
| Power supply * | AC 100–240 V, 50/60 Hz | AC 100–240 V, 50/60 Hz | AC 100–240 V, 50/60 Hz |
| Light source * | Laser diode | Laser diode | Laser diode |
| Terminals | SERIAL IN * | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | LAN * | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | DC OUT * | USB Type A x 1 (for power supply, DC 5 V, 2 A) | USB Type A x 1 (for power supply, DC 5 V, 2 A) | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| DLP™ chip | Panel size * | 0.8 in diagonal (16:10 aspect ratio) | 0.8 in diagonal (16:10 aspect ratio) | 0.8 in diagonal (16:10 aspect ratio) |
| Terminals | SERIAL OUT * | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | USB * | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | REMOTE 2 IN * | D-sub 9-pin (female) x 1 for external control (parallel) | D-sub 9-pin (female) x 1 for external control (parallel) | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | Expansion Slot * | Open slot for for function boards, Intel® SDM compatible | Open slot for for function boards, Intel® SDM compatible | Open slot for for function boards, Intel® SDM compatible |
| Terminals | REMOTE 1 OUT * | M3 stereo mini-jack x 1 for link control (for wired remote control) | M3 stereo mini-jack x 1 for link control (for wired remote control) | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Operation noise*1 * | 38 dB (NORMAL/ECO), 35 dB (QUIET) | 36 dB (NORMAL/ECO), 33 dB (QUIET) | 35 dB (NORMAL/ECO), 32 dB (QUIET) |
| Projector type * | 1-Chip DLP™ projectors | 1-Chip DLP™ projectors | 1-Chip DLP™ projectors |
| DLP™ chip | Number of Pixels * | 2,304,000 (1920 x 1200 pixels) | 2,304,000 (1920 x 1200 pixels) | 2,304,000 (1920 x 1200 pixels) |
| Center-to-corner zone ratio*1 * | 90 % | 90 % | 90 % |
| Lens shift | Vertical(From the origin point of the lens mounter) * | ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100) | ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100) | ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100) |
| Lens shift | Horizontal(From the origin point of the lens mounter) * | ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100) | ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100) | ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100) |
| Terminals | Multi Sync Out * | BNC x 1 | BNC x 1 | BNC x 1 |
| Light Output*1 *2 * | 12,000 lm / 12,400 lm (Center)*3 | 10,000 lm / 10,300 lm (Center)*3 | 8,000 lm / 8,200 lm (Center)*3 |
| Protocol versions * | IPv4, IPv6*6 | IPv4, IPv6*6 | IPv4, IPv6*6 |
| Control function via LAN * | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) |
| Terminals | HDMI™ 1/2 IN * | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) |
| Terminals | DisplayPort™ * | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) |
| Terminals | Multi Sync In * | BNC x 1 | BNC x 1 | BNC x 1 |
| Weight*7 * | PT-REZ12/REZ10/REZ80: Approx. 28.7 kg (63.27 lbs) (with supplied lens), PT-REZ12L/REZ10L/REZ80L: Approx. 27.0 kg (59.52 lbs) (without lens) | PT-REZ12/REZ10/REZ80: Approx. 28.7 kg (63.27 lbs) (with supplied lens), PT-REZ12L/REZ10L/REZ80L: Approx. 27.0 kg (59.52 lbs) (without lens) |
PT-REZ12/REZ10/REZ80: Approx. 28.7 kg (63.27 lbs) (with supplied lens), T-REZ12L/REZ10L/REZ80L: Approx. 27.0 kg (59.52 lbs) (without lens) |
| Time until light output declines to 50 %*4 * | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Terminals | REMOTE 1 IN * | M3 stereo mini-jack x 1 for wired remote control | M3 stereo mini-jack x 1 for wired remote control | M3 stereo mini-jack x 1 for wired remote control |
| Power Consumption*7 | Maximum power consumption * | 995 W (10.4–4.3 A) (1,005 VA) (Power consumption is 950 W at AC 200–240 V) |
840 W (8.8–3.7 A) (850 VA) (Power consumption is 810 W at AC 200–240 V) | 730 W (7.7–3.2 A) (740 VA) (Power consumption is 700 W at AC 200–240 V) |
| Power Consumption*7 | On-mode power consumption (Operating mode) Nomal * | 850 W (AC 100–120 V), 810 W (AC 200–240 V) | 700 W (AC 100–120 V), 675 W (AC 200–240 V) | 570 W (AC 100–120 V), 540 W (AC 200–240 V) |
| Power Consumption*7 | On-mode power consumption (Operating mode) ECO * | 650 W (AC 100–120 V), 625 W (AC 200–240 V) | 540 W (AC 100–120 V), 525 W (AC 200–240 V) | 440 W (AC 100–120 V), 425 W (AC 200–240 V) |
| Power Consumption*7 | On-mode power consumption (Operating mode) QUIET * | 640 W (AC 100–120 V), 615 W (AC 200–240 V) | 530 W (AC 100–120 V), 515 W (AC 200–240 V) | 435 W (AC 100–120 V), 420 W (AC 200–240 V) |
