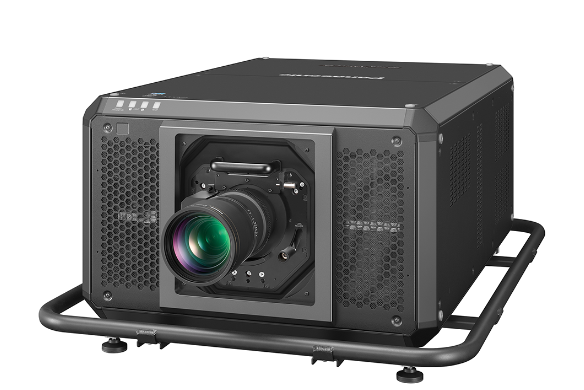

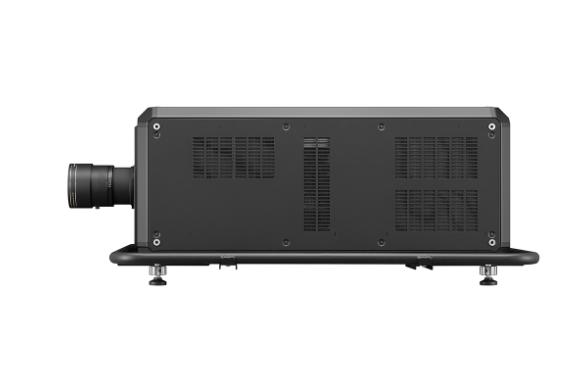

50,000lm Native 4K 3-Chip DLP™ Projector
The PT-RQ50K is an all-in-one projector built to create breath-taking experiences with ease and reassurance. It combines Panasonic’s finest image quality and long-proven reliability.
- Laser 3-chip DLP, 50,000 lumens, Native 4K
- Lamp-free laser projection with hermetically sealed optics and filter-less design, for 20,000 hours maintenance free operation
- Compact body allows for simplified transport, install and adjustment
- Dualised design provides the ultimate in backup and reliability
- 20,000:1 contrast ratio
Featured Specs
| SKU | PT-RQ50KU |
|---|---|
| Projector type | 3-Chip DLP™ projector |
| DLP™ chip | Panel size | 35.1 mm (1.38 in) diagonal (17:9 aspect ratio) |
| DLP™ chip | Display method | DLP™ chip x 3, DLP™ projection system |
| DLP™ chip | Number of Pixels | 8,847,360 (4096 x 2160) pixels x 3 |
| Light source | Laser diodes (Blue LD, Red LD) |
| Light output*1 | 50,000 lm*2 / 50,000 lm (ANSI)*3 / 51,000 lm (Center)*4 |
| Time until light output declines to 50 %*5 | 20,000 hours (NORMAL) |
| Resolution | Native 4K (4096 x 2160 pixels) |
| Contrast Ratio*2 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Screen size [diagonal] | 2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio |
| Center-to-corner zone ratio*1 | 90 % |
| LENS | New optional lenses for PT-RQ50K (no lens included with this model) |
| Lens shift | Vertical (from center of screen) | ±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered) |
| Lens shift | Horizontal (from center of screen) | ±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered) |
| Keystone correction range | Vertical: ±40° (±28° with ET-D3QW300), Horizontal: ±40° (±15° with ET-D3QW300) |
| Installation | Horizontal/vertical, free 360-degree installation |
| Terminals | MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals | MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control |
| Terminals | REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | DC OUT | USB connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A) |
| Terminals | USB | USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick |
| Terminals | Expansion Slot 1 | Interface Board for 12G-SDI (ET-MDN12G10) supplied |
| Terminals | Expansion Slot 2 | Optional interface boards, SLOT NX compatible |
| Power supply | AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz (Brightness restricted to one fifth with voltage of 100‒120 V) |
| Maximum power consumption | 4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W) |
| Cabinet materials | Metal (Partly Plastic Mold) |
| Operation noise*2 | 52 dB |
| Dimensions (W x H x D) | 720 x 445 x 1,070 mm (28 11/32˝ x 17 17/32˝ x 42 1/8˝ ) (excluding handle, adjuster feet, and other protruding parts) |
| Weight*6 | Approx. 126 kg (278 lbs) (without lens) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*5 *6 *7 , operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Note | *1 When [OPERATING MODE] is set to [NORMAL]. |
Newly Developed Laser Engine Expands the Color Gamut
An all-new laser engine expands color-gamut to 114 % of our current PT-RQ32K flagship, achieving lush, vibrant hues that pull audiences into the artist’s world. A new red laser enhances two blue lasers, which output light at different wavelengths for high color accuracy. Combined with digital frame-by-frame control to manage light output according to the scene’s contrast and brightness requirements and dedicated red-laser cooling to precisely control temperature, the PT-RQ50K attains vivid reds and deep, natural blues for spectacular on-screen color expression.
Newly Developed Laser Engine Expands the Color Gamut
An all-new laser engine expands color-gamut to 114 % of our current PT-RQ32K flagship, achieving lush, vibrant hues that pull audiences into the artist’s world. A new red laser enhances two blue lasers, which output light at different wavelengths for high color accuracy. Combined with digital frame-by-frame control to manage light output according to the scene’s contrast and brightness requirements and dedicated red-laser cooling to precisely control temperature, the PT-RQ50K attains vivid reds and deep, natural blues for spectacular on-screen color expression.

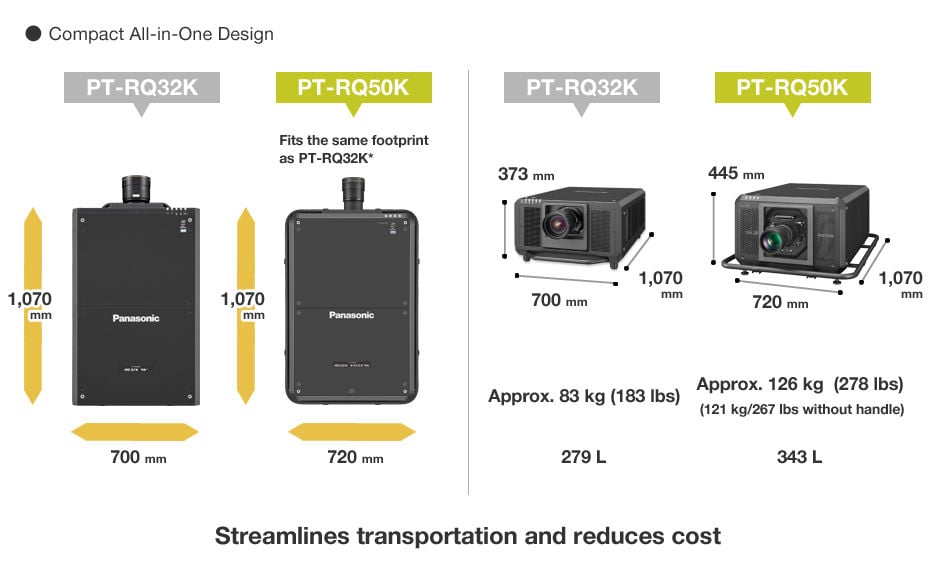

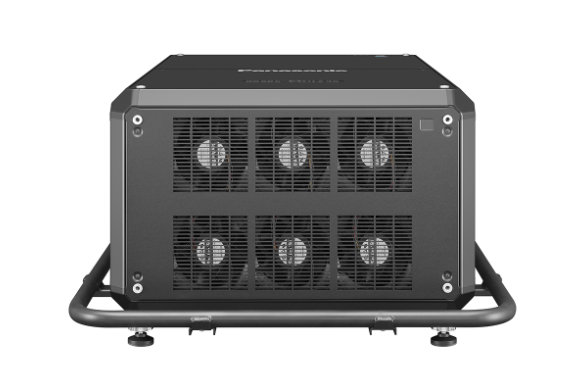

Compact All-in-One Body with Built-in Cooling

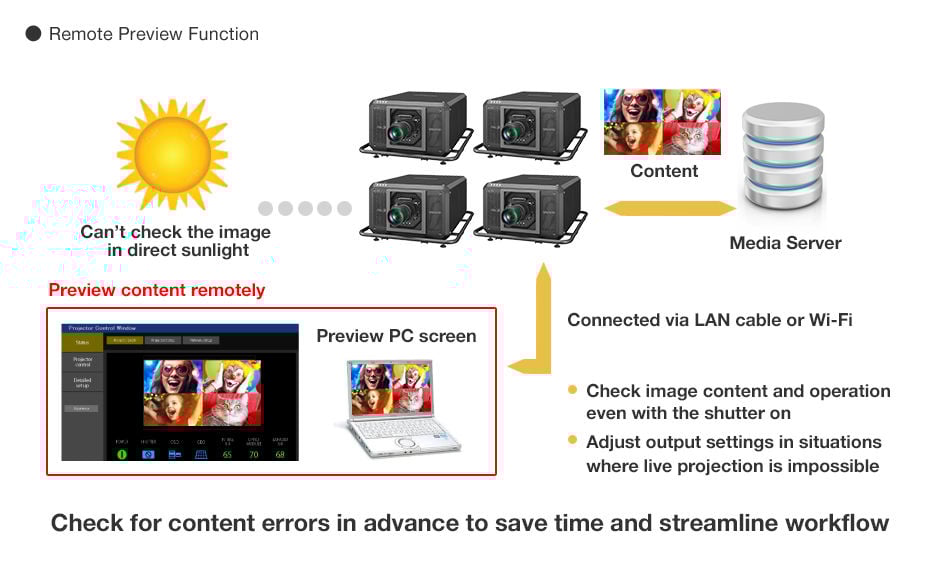

Remote Preview Saves Time and Unnecessary Stress
Newly introduced within Multi Monitoring & Control Software and also accessible via web browser, Remote Preview allows projectionists to check the content being received by the projector via a Wi-Fi®- or LAN-connected laptop. It works with the projector in Standby, with the shutter on, or when direct sunlight makes inspecting on-screen images difficult. It gives a chance to fix errors between the source and projector before setup is completed.

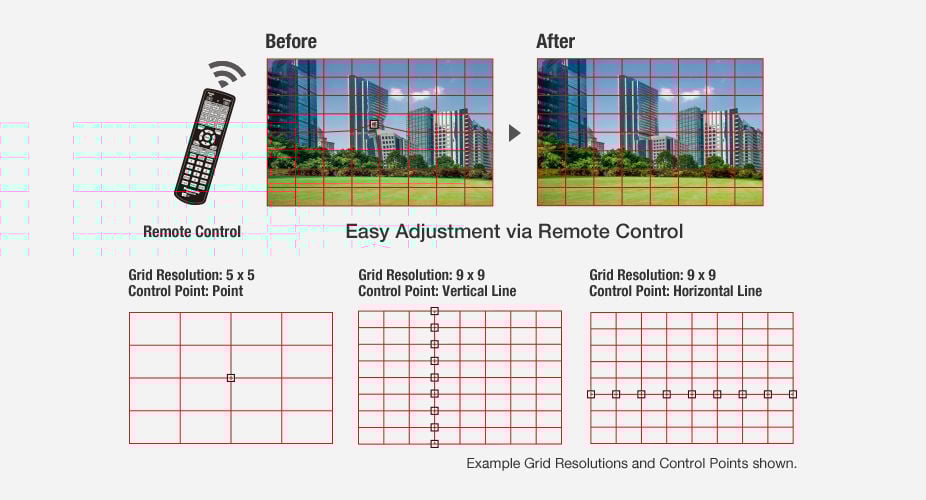

Geometric Adjustment with Free Grid Correction via Remote Control
Free Grid is a function in Geometric Adjustment that enables convenient grid-based image adjustment using the projector’s remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to compensate for screen distortions. This correction is easily performed by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to smoothly create a distortion-free projection in a wide range of installation situations.
*1 Availability may vary by country or region.
*2 The ability to write data is not possible with iOS devices. Use of functions described may require prior activation within the projector’s settings. Check the App Store or the Google Play store for minimum device and OS requirements, or click here for more information.

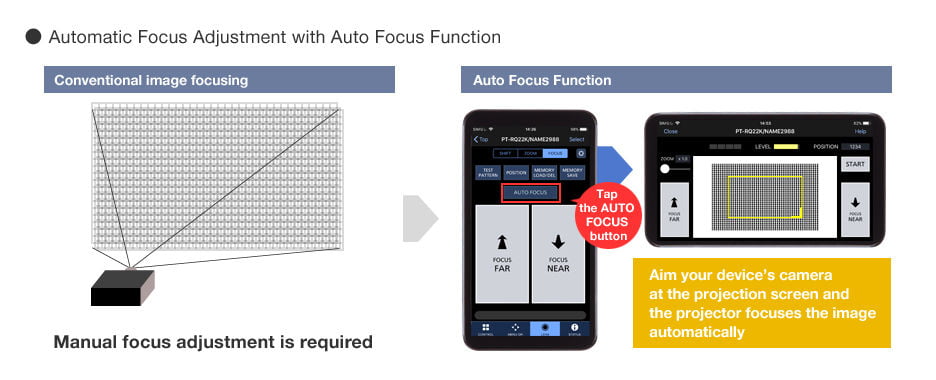

*3 Auto Focus may not be compatible with some mobile devices.

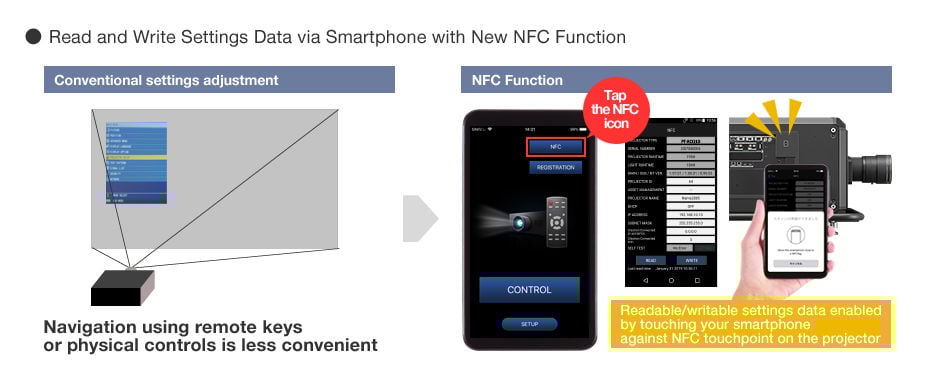

Note: In some countries, projector activation is required to use NFC function. Please click here for a list of countries where an optional ET-NUK10 Upgrade Kit can be obtained to enable NFC function. For more information, please visit PASS. If NFC function is disabled, the app’s NFC screen is displayed, but reading/writing data is not possible.

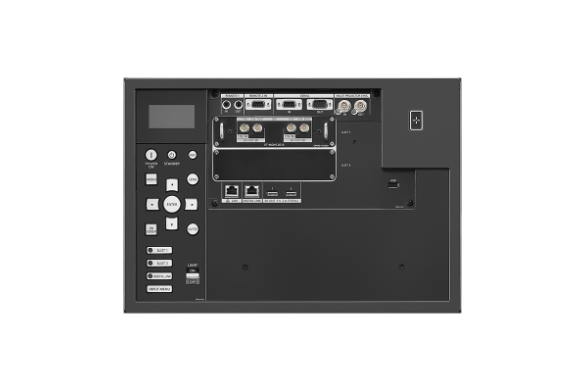

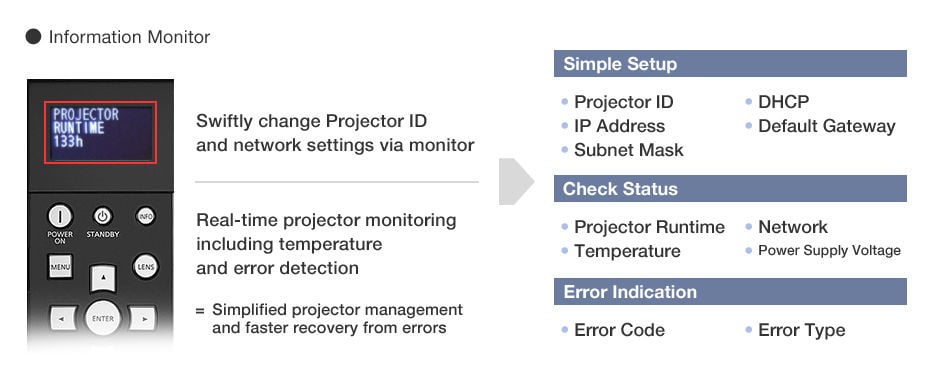

New Information Monitor

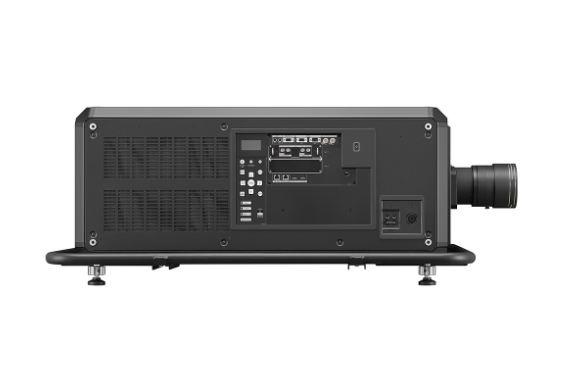

To further simplify setup and operation of the PT-RQ50K, an Information Monitor is located on the side panel adjacent to terminals and physical controls. The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.
Dedicated Lenses Cover All Throw-Ratios
An exclusive new lineup of optional lenses for the PT-RQ50K provides gapless throw-ratio coverage from 1.11–1.70:1 to 4.97–7.76:1, adapting projections to suit the installation site. All six models support powered zoom, lens-shift, as well as lens memory and lens ID for easier on-site adjustments. AFO (Active Focus Optimizer) feature optimizes focus based on content APL, keeping images sharp and in focus.
Shielded Laser Drive with Finless Radiator
Hermetically sealed DMD block, shielded laser drive, and filterless cooling system is reinforced by a new finless radiator that improves cooling efficiency by as much as 30 % over previous implementations while protecting critical components from dust intrusion. The projector exceeds common international dustproofing guidelines and is manufactured in Japan to extremely rigorous quality control standards. Business operators can expect up to 20,000 hours* of reliable maintenance-free projection at full brightness.
* Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % will vary depending on environment and usage conditions. Parts other than the light source may require replacement before 20,000 hours, and checkup is recommended around this time.
Solid-State Laser Modules with Failover Circuitry
The SOLID SHINE Laser drive groups laser diodes into discrete modules. In the unlikely event one single diode in a module goes out, Failover Circuitry enables the diodes in the affected series to be bypassed—the remaining, functional diodes continue to operate with imperceptible loss in brightness. If a laser diode fails in other laser projectors, the whole module goes down and the brightness loss is so great that the projector must be taken offline. Panasonic laser diode failover technology adds yet another layer of insurance for events projection when image presentation must be maintained.
Backup Input Guarantees Picture Display
If the primary signal is disrupted, the projector switches to a backup input*1 in just 0.3 seconds at the fastest*2, so image display is maintained when projection mustn’t be interrupted. No screen-blanking occurs during backup input-switching.
*1 Combination of primary/secondary input terminals is fixed. Switching to secondary input (or primary input) occurs automatically when the input signal for primary input (or secondary input) is disrupted. The Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.
*2 Switching speed is an approximate value and may vary depending on backup input mode settings and source device configuration.
