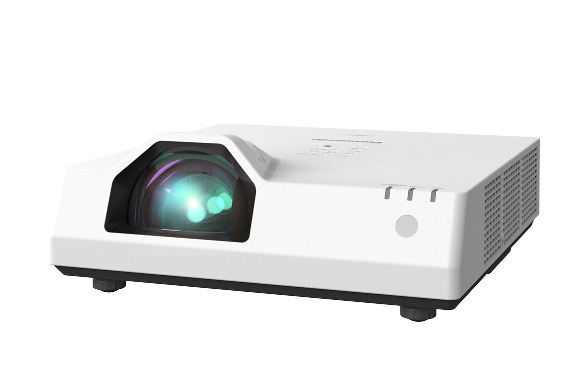

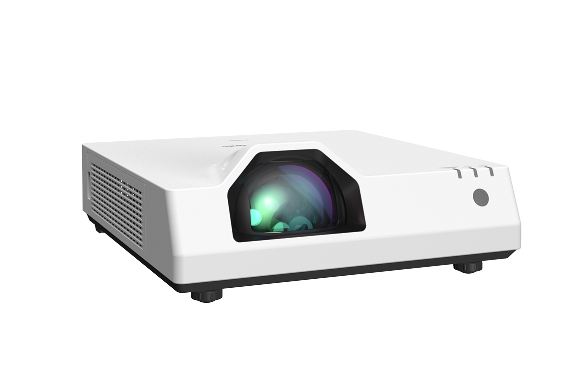

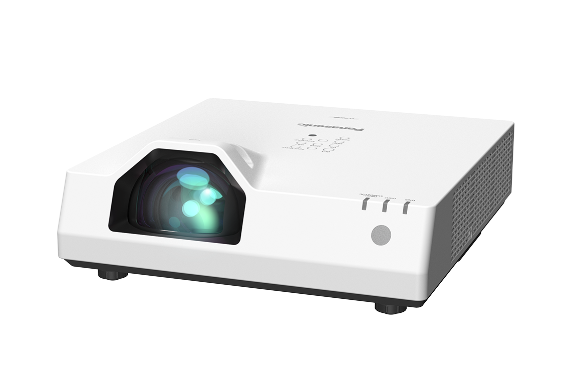

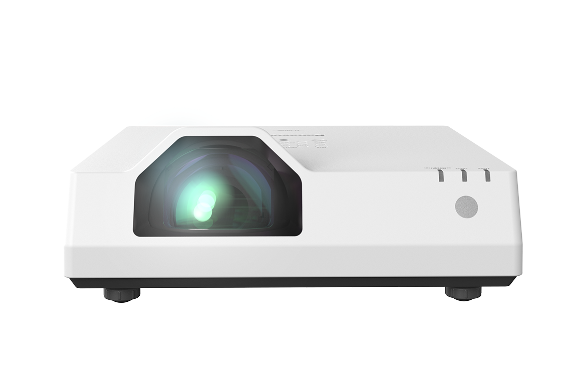

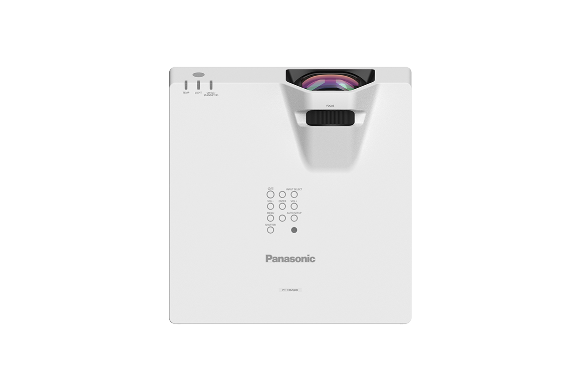

0.43:1 3LCD Projectors
Short-throw projector for high impact presentations in education and corporate environments
- Project Anywhere Instantly from Short Distances
- Efficient Reliability with Minimal Maintenance
- Crisp, Sharp Images and Text at WUXGA
Featured Specs
| SKU | PT-TMZ400 | PT-TMW380 |
|---|---|---|
| Projector type | LCD projectors | LCD projectors |
| LCD panel | Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) | 15.0 mm (0.59 in) diagonal (16:10 aspect ratio) |
| LCD panel | Pixels | 2,304,000 (1920 x 1200) pixels | 1,024,000 (1280 x 800) pixels |
| Light source | Laser diodes | 230 W x 1 lamp |
| Light Output*1 *2 | 4,000 lm | 3,300 lm |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) | |
| Resolution | WUXGA (1920 x 1200 pixels) | 1280 x 800 pixels |
| Contrast Ratio*1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) | 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Daylight View: Off, Lamp control: Normal) |
| Screen Size (Diagonal) | 1.27–2.67 m (50–105 in), 16:10 aspect ratio | 1.27–2.54 m (50–100 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % | 85 % |
| LENS | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image) | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.80 m [2.62 ft] for 80-inch image) |
| Digital Zoom Extender *4 | Throw ratio: 0.43–0.54:1*5 (Corresponding value) | Throw ratio: 0.43–0.54:1*5 (Corresponding value) |
| Keystone correction range | Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual) | Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual) |

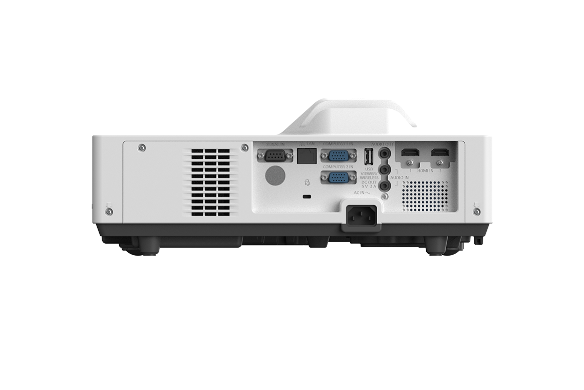

| Terminals | HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7 | HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| Terminals | COMPUTER 1 IN | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Computer 2 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | AUDIO 1/2 IN | M3 stereo mini-jack x 2 | M3 stereo mini-jack x 2 |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compatible) |
| Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX | RJ-45 x 1 for network control, 10Base-T, 100Base-TX |
| Terminals | USB(VIEWER/WIRELESS/DC OUT) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8) | USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3 ]/Power supply [DC 5 V/2 A]) |
| Power Consumption*9 | Maximum power consumption | 240 W | 300 W |
| Power Consumption*9 | On-mode power consumption (Light Power) | [NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V) | |
| Built in speaker | 10 W monaural | 10 W monaural |
| Filter*10 | Included (Estimated maintenance time: approx. 20,000 hours) | |
| Operation noise*1 | 35 dB (NORMAL/ECO), 24 dB (QUIET) | Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB |
| Dimensions (W x H x D) | 349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position) | 335 x 134.1*4 x 329 mm (13 3/16˝ x 5 9/32˝*4 x 12 15/16˝ ) |
| Weight with supplied lens*11 | Approx. 4.9 kg (10.8 lbs) | Approx. 3.9 kg (8.6 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*12, operating humidity: 20–80 % (no condensation) | Operating temperature : Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14 | Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software,Presenter Light Software (for Windows®)*7 , Wireless Projector for iOS/Android™*8 , LightPen3 Software for Windows/Mac, Whiteboard Software (for Windows) |
| Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] isset to [OFF], and [AUTO POWER SAVE] is set to [OFF]. *3 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. *4 Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range ofcorner adjustment is limited. *5 When Digital Zoom Extender is set to 80 %. *6 4K signals are converted to the projector's resolution upon projection. *7 Depending on the connected CEC command-compatible device, the link control may not operate normally. *8 On standby, powersupply is available with Quick Startup set to ON or Power Management set to Ready. *9 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operatingtemperature at an altitude of 700 m (2,297 ft). *10 Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).*11 Average value. May differ depending on the actual unit. *12 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Moduleis attached, operating temperature range becomes 0–40 °C (32–104 °F). *13 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted orbecome noisy, while images and sound are being transmitted. *14 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Lamp replacement cycle stated is maximum value, at which time brightness will have decreased to 50 %. Usage environment affects lamp replacement cycle. *3 ET-WML100 Series and AJ-WM50 Series devices are both compatible with all projectors in this series, and either can be used to enable the wireless network function. *4 With legs at shortest position. *5 Average value. May differ depending on the actual unit. *6 When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation of 1,400 m (4,593 ft) or less, if the ambient temperature exceeds 35 °C (95 °F), [LAMP POWER] will be switched to [ECO] automatically to protect the projector. When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation between 1,400 m (4,593 ft) and 2,700 m (8,858 ft), if the ambient temperature exceeds 30 °C (86 °F), [LAMP POWER] will be switched to [ECO] automatically to protect the projector. *7 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. *8 When using the Wireless Projector app, display resolution differs depending on your iOS/Android ™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). |
| Terminals | AUDIO OUT | M3 stereo mini-jack x 1 | M3 stereo mini-jack x 1 |
| Protocol versions | IPv4 | IPv4 |
| Control function via LAN | PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery | PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery |
