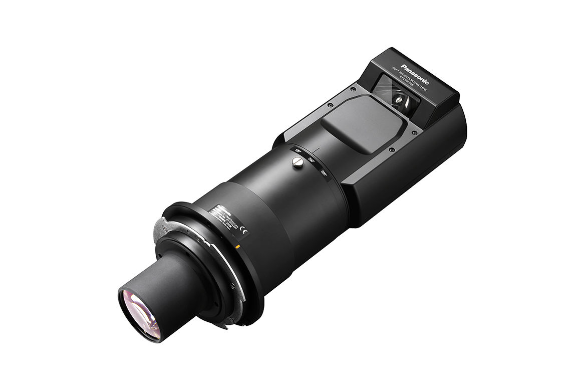

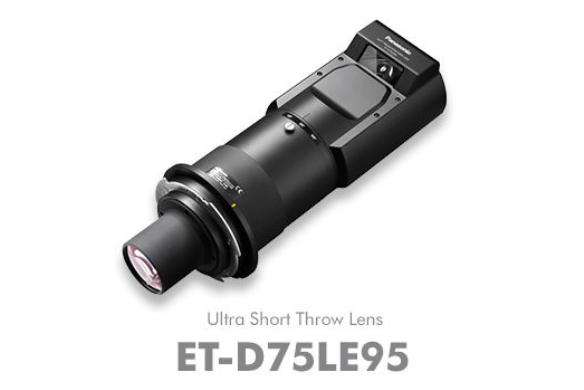

ET-D75LE95 3-Chip DLP™ Projector Ultra Short Throw Lens
0.39:1 throw distance (WUXGA) Ultra Short-Throw Lens for 3-Chip DLP Projectors
- 200-inch diagonal image can be produced from a distance of only about 1.5 m (5.0 ft) away from the screen
- Lenses can be used in both vertical and horizontal edge blending
- Throw ratio: 0.39:1 (for 4K+) / 0.36:1 (for the WUXGA & full HD resolution) / 0.39:1 (for the SXGA+ resolution) / 0.40:1 (for the WXGA resolution)
Featured Specs
| SKU | ET-D75LE95 |
|---|---|
| F value | 2.5 |
| Focal length (f) | 7.5 mm (9/32") |
| Lens shift | PT-DZ16K/DZ16K2 | Vertical shift [up: 13% down: 8%] Horizontal shift [left: 19%; right: 19%] |
| Lens shift | PT-DW17K/DW17K2/DW11K | Vertical shift [up: 18% down: 9%] Horizontal shift [left: 30%; right: 30%] |
| Dimensions (W x H x D) | 463.5mm x ø154 mm (18-1/4 x ø6-1/16 inches) |
| Weight | Approx 5.7 kg* (12.6 lbs*) |
| Applicable projector [Group A] | PT-DZ21K/DZ21K2/DS20K/DS20K2/DW17K/DW17K2/DZ16K/DZ16K2 |
| Applicable projector [Group B] | PT-DZ13K/DS12K/DW11K/DZ10K/DZ8700/DZ110K/DS8500/DS1100K/DW8300/DW90k |
| Applicable projector [Group C] | PT-RQ13K/RZ12K/RS11K |
| Applicable projector [Group D] | PT-RQ32K/RZ31K/RS30K |
| Note | Average value. May differ depending on models. |
| Lens shift | PT-RQ32K/RQ13K | Vertical shift [up: 10% down: 5%] Horizontal shift [left: 21%; right: 21%] |
| Lens shift | PT-RZ31K/RZ12K | Vertical shift [up: 5% down: 5%] Horizontal shift [left: 12%; right: 12%] |
| Lens shift | PT-DZ21K/DZ21K2/DZ13K/DZ10K | Vertical shift [up: 5% down: 7%] Horizontal shift [left: 12%; right: 12%] |
| Lens shift | PT-RS30K/RS11K | Vertical shift [up: 0% down: 4%] Horizontal shift [left: 8%; right: 8%] |
| Lens shift | PT-DS20K/DS20K2/DS12K | Vertical shift [up: 0% down: 7%] Horizontal shift [left: 8%; right: 8%] |
