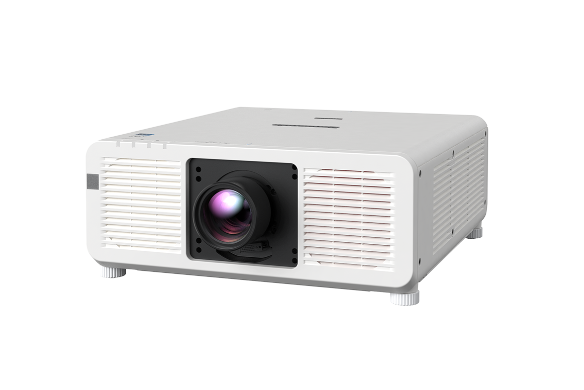

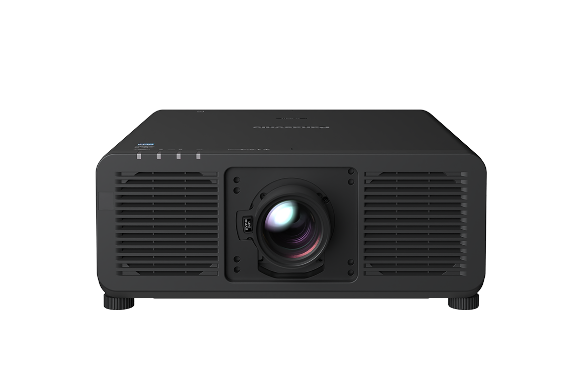

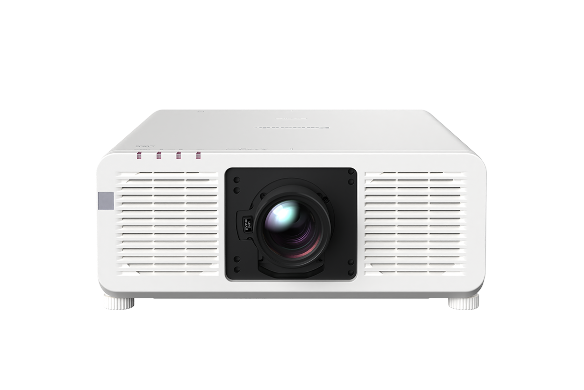

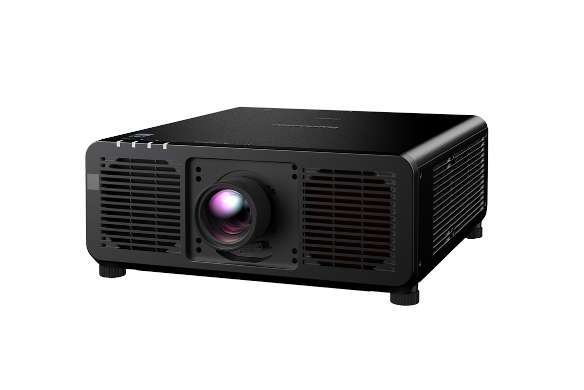

8,000-12,000lm 4K 1-Chip DLP™ Projectors
As the world enters a new era of engagement, entertainment venues are looking for AV technology that captivates audiences with exceptional, elevated levels of experiences by visually stimulating their senses to create emotional and lasting connections. The PT-REQ12 Series of 1-Chip DLP™ 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 12,000lm brightness, 4K resolution, and 240 Hz projection capability.
- Dynamic Visuals Take Production to New Heights
- Effortless Workflow, Improved Expandability
- New Cabinet Design for Maintenance-Free Operation
- TAA Compliant
Featured Specs
| SKU | PT-REQ12 | PT-REQ10U | PT-REQ80U |
|---|---|---|---|
| Dimensions (W x H x D) | 498 x 212 x 538 mm (19 5/8˝ x 8 11/32˝ x 21 3/16˝ ) (with feet at shortest position, not including protruding parts) |
498 x 212 x 538 mm (19 5/8˝ x 8 11/32˝ x 21 3/16˝ ) (with feet at shortest position, not including protruding parts) |
498 x 212 x 538 mm (19 5/8˝ x 8 11/32˝ x 21 3/16˝ ) (with feet at shortest position, not including protruding parts) |
| LENS | Powered zoom (throw ratio 1.36–2.19:1 for supplied lens), powered focus (optional lenses also available) | Powered zoom (throw ratio 1.36–2.19:1 for supplied lens), powered focus (optional lenses also available) | Powered zoom (throw ratio 1.36–2.19:1 for supplied lens), powered focus (optional lenses also available) |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±40 ° (with supplied lens) | Vertical: ±40 °, Horizontal: ±40 ° (with supplied lens) | Vertical: ±40 °, Horizontal: ±40 ° (with supplied lens) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | Ceiling/floor, front/rear, free 360-degree installation | Ceiling/floor, front/rear, free 360-degree installation |
| Cabinet materials | Molded plastic | Molded plastic | Molded plastic |
| Screen size [diagonal] | 70–700 inches (with supplied lens) | 70–700 inches (with supplied lens) | 70–700 inches (with supplied lens) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Weight*6 | 28.8 kg (63.49 lbs) with supplied lens (TBD) | 28.8 kg (63.49 lbs) with supplied lens (TBD) | 28.8 kg (63.49 lbs) with supplied lens (TBD) |
| Contrast Ratio*1 | 20,000:1 (Full On/Full O , Dynamic Contrast [3]) (TBD) | 20,000:1 (Full On/Full O , Dynamic Contrast [3]) (TBD) | 20,000:1 (Full On/Full O , Dynamic Contrast [3]) (TBD) |
| Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC] and [OPERATING MODE] is set to [NORMAL]. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *4 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *5 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC] and [OPERATING MODE] is set to [NORMAL]. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *4 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *5 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC] and [OPERATING MODE] is set to [NORMAL]. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 35 °C (95 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *4 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *5 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). |
| Power supply | AC 100–240 V, 50/60 Hz | AC 100–240 V, 50/60 Hz | AC 100–240 V, 50/60 Hz |
| Light source | Laser diodes | Laser diodes | Laser diodes |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) | USB Type A x 1 (for power supply, DC 5 V, 2 A) | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| DLP™ chip | Panel size | 0.8 in diagonal (16:10 aspect ratio) | 0.8 in diagonal (16:10 aspect ratio) | 0.8 in diagonal (16:10 aspect ratio) |
| DLP™ chip | Display method | DLP™ chip x 1, DLP™ projection system | DLP™ chip x 1, DLP™ projection system | DLP™ chip x 1, DLP™ projection system |
| Terminals | SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | D-sub 9-pin (female) x 1 for external control (parallel) | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | Expansion Slot | Open slot for for function boards, Intel® SDM compatible | Open slot for for function boards, Intel® SDM compatible | Open slot for for function boards, Intel® SDM compatible |
| Terminals | REMOTE 1 | M3 stereo mini-jack x 1 for wired remote control | M3 stereo mini-jack x 1 for wired remote control | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) | M3 stereo mini-jack x 1 for link control (for wired remote control) | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Operation noise*1 | 39 dB (NORMAL/ECO), 35 dB (QUIET) | 37 dB (NORMAL/ECO), 33 dB (QUIET) | 35 dB (NORMAL/ECO), 32 dB (QUIET) |
| Projector type | 1-Chip DLP™ projectors | 1-Chip DLP™ projectors | 1-Chip DLP™ projectors |
| DLP™ chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) | 2,304,000 (1920 x 1200 pixels) | 2,304,000 (1920 x 1200 pixels) |
| Center-to-corner zone ratio*1 | 90 % | 90 % | 90 % |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Lens shift | Vertical(From the origin point of the lens mounter) | ±29 % (with supplied lens) | ±29 % (with supplied lens) | ±29 % (with supplied lens) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | ±60 % (with supplied lens) | ±60 % (with supplied lens) | ±60 % (with supplied lens) |
| Terminals | Multi Sync Out | BNC x 1 | BNC x 1 | BNC x 1 |
| Light Output*1 *2 | 12,000 lm | 10,000 lm | 8,000 lm |
| Protocol versions | IPv4, IPv6*4 | IPv4, IPv6*4 | IPv4, IPv6*4 |
| Control function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) |
| Terminals | HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals | DisplayPort™ | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals | Multi Sync In | BNC x 1 | BNC x 1 | BNC x 1 |
| Power Consumption*5 | Maximum power consumption | 1,050 W (10.7–4.5 A) (1,070 VA) (TBD) | 980 W (10–4.2 A) (1,000 VA) (TBD) | 760 W (7.7–3.2 A) (770 VA) (TBD) |
| Power Consumption*5 | On-mode power consumption (Operating mode) Nomal | 900 W (TBD) | 600 W (TBD) | 830 W (TBD) |
| Power Consumption*5 | On-mode power consumption (Operating mode) ECO | 700 W (TBD) | 640 W (TBD) | 475 W (TBD) |
| Power Consumption*5 | On-mode power consumption (Operating mode) QUIET | 890 W (TBD) | 630 W (TBD) | 470 W (TBD) |
