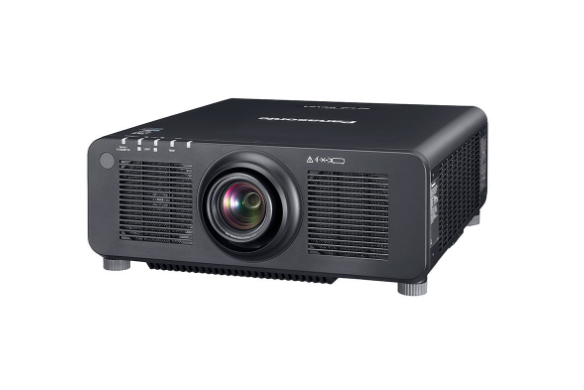

PT-RZ790U 1-Chip DLPTM Laser Projector

6,000lm-7,000lm 1-Chip DLP™ Projectors

SKU:

  • PT-RZ790
  • PT-RZ690
Featured Specs

Deepen immersion in any environment with rich, accurate colors thanks to Panasonic’s original Quartet Color Harmonizer color-wheel optimization and 1-Chip DLP™ imaging technology. With support for 4K/60p input signals, separate DIGITAL LINK and LAN terminals, and diverse optional lenses, these projectors reduce installation hassles with convenient flexibility. Engineered for 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.

Contact sales

  • Laser 1-chip DLP,6,000lm-7,000lm WUXGA
  • Quartet Color Harmonizer technology for more accurate color reproduction
  • Maintenance free up to 20.000 hours with dust-resistant optical block and long lasting laser engine
  • Supports 4K/60p Signal Input, separate DIGITAL LINK and LAN terminals

263411574bba05428cc1e8e06122ba45501f227f   c87854d745fe9b193ce7655e335d3cbc5aa140d3   3aa9687f8940135ed1377097047b4bad5e4d61a0   b1f85c9be3c506b020078b2693de9dc66ea06ca1   8a23391ab43ed23132f0326b38178790474ef8bb   4k_signal_input



Featured Specs

SKU PT-RZ790 PT-RZ690
Dimensions (W x H x D)

With supplied lens: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) Without lens: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝)

 With supplied lens: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) Without lens: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝)
Power Consumption 545 W (Normal)/435 W (Eco)/ 215 W (Long Life 1)/195 W (Long Life 2)/ 170 W (Long Life 3) 490 W (Normal)/395 W (Eco)/ 200 W (Long Life 1)/180 W (Long Life 2)/ 160 W (Long Life 3)
LENS With supplied lens: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm Without lens: Optional powered zoom/focus lenses With supplied lens: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm Without lens: Optional powered zoom/focus lenses
Resolution 1920 x 1200 pixels 1920 x 1200 pixels
Operating environment Operating temperature: 0–45 °C (32–113 °F)*8 , operating humidity: 10–80 % (no condensation) Operating temperature: 0–45 °C (32–113 °F)*8 , operating humidity: 10–80 % (no condensation)
Keystone correction range Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020) Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
Contrast Ratio*1 10,000:1 (Full On/Full Off, Dynamic Contrast [3] ) 10,000:1 (Full On/Full Off, Dynamic Contrast [3] )
Power supply AC 100–240 V, 50/60 Hz AC 100–240 V, 50/60 Hz
Light source Laser diodes Laser diodes
Terminals | DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminals | LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
DLP™ chip | Panel size 17.0 mm (0.67 in) diagonal ( Panel size 16:10 aspect ratio) 17.0 mm (0.67 in) diagonal ( Panel size 16:10 aspect ratio)
DLP™ chip | Display method DLP™ chip x 1, DLP™ projection system DLP™ chip x 1, DLP™ projection system
Terminals | SDI IN BNC x 1: 3G/HD/SD-SDI input BNC x 1: 3G/HD/SD-SDI input
Terminals | HDMI IN HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5 ) HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5 )
Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5 RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5
Terminals | REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel) D-sub 9-pin (female) x 1 for external control (parallel)
Light output 7,000 lm (Normal)*1 /7,200 lm (Center)*2 / 5,600 lm (Eco)*1 /2,800 lm (Long Life 1)*1 / 2,300 lm (Long Life 2)*1 /1,900 lm (Long Life 3)*1 6,000 lm (Normal)*1 /6,200 lm (Center)*2 / 4,800 lm (Eco)*1 /2,400 lm (Long Life 1)*1 / 2,000 lm (Long Life 2)*1 /1,600 lm (Long Life 3)*1
Terminals | REMOTE 1 IN M3 x 1 for wired remote control M3 x 1 for wired remote control
Terminals | REMOTE 1 OUT M3 x 1 for link control (for wired remote control) M3 x 1 for link control (for wired remote control)
Operation noise*1 36 dB (Normal) 35 dB (Normal)
Projector type 1-Chip DLP™ projector 1-Chip DLP™ projector
DLP™ chip | Number of Pixels 2,304,000 (1920 x 1200 pixels) 2,304,000 (1920 x 1200 pixels)
Screen size [diagonal] 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio
Center-to-corner zone ratio*1 90 % 90 %
Time until light output declines to 50 %*3 20,000 hours (Normal)/24,000 hours (Eco) 20,000 hours (Normal)/24,000 hours (Eco)
Weight*7 With supplied lens: Approx. 22.1 kg (48.7 lbs)
Without lens: Approx. 21.3 kg (47.0 lbs)		 With supplied lens: Approx. 22.1 kg (48.7 lbs)
Without lens: Approx. 21.3 kg (47.0 lbs)
Lens shift*4 | Vertical(From the origin point of the lens mounter) +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered) +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
Lens shift*4 | Horizontal(From the origin point of the lens mounter) +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered) +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
Note *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment. *4 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE035. *5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI ®.*6 Excluding legs. *7 Average value. May differ depending on the actual unit. *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. *3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment. *4 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE035. *5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI ®.*6 Excluding legs. *7 Average value. May differ depending on the actual unit.
Terminals | SERIAL/MULTI PROJECTOR SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant) D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | SERIAL/MULTI PROJECTOR SYNC OUT D-sub 9-pin (male) x 1 for link control D-sub 9-pin (male) x 1 for link control
Keystone correction range with optional ET-UK20 Upgrade Kit Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Terminals | RGB 1 IN RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
Terminals | RGB 2 IN D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
