AU-XPD3 Thunderbolt3 expressP2 Drive

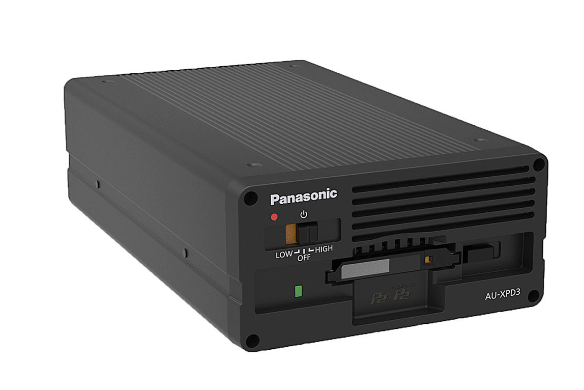

AU-XPD3 Thunderbolt3 expressP2 Drive 2

AU-XPD3 Thunderbolt3 expressP2 Drive

SKU:

  • AU-XPD3
Featured Specs
$1,850 MSRP

fastest offload device is designed for optimal performance with Panasonic’s expressP2 B series cards. The AU-XPD3 is equipped with a Thunderbolt3 interface, which is twice as fast as Thunderbolt2 and eight times faster than USB 3.0.

Contact sales

  • Thunderbolt3 Interface
  • 10 Gbps Transfer Speed
  • Offload 512 GB card in 7 minutes
  • Industries fastest offload device
  • Daisychain to offload 2 x 512 GB cards in 8 minutes

    2e24c63a39973de6030aea85c635c259df2ce2ac15a4c8d26d8162b9a736dde5f6ed9a23fda22034e1f5777c53c196f2a0263363da09d05b03d2fb12

Featured Specs

SKU AU-XPD3
Power DC 16 V 3.1 A
AC Adapter

Input: AC 100 V - 240 V, 50 Hz/60 Hz, 1.5 A - 0.8 A
Output: DC 16 V, 3.75 A
Weight Approx. 1.2 kg (2.65 lb)
Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating humidity 10 % to 85 % (no condensation)
Dimensions (W x H x D) 126 mm x 62 mm × 216.5 mm (excluding protrusion)
(4-31/32 inches x 2-7/16 inches x 8-17/32 inches)
Connector Configuration USB Type-C connector x 2
Card slot PC card slot x 1 (CardBus/PCI Express Base Specification)

AU-XPD3 - Offload files at blazing speeds

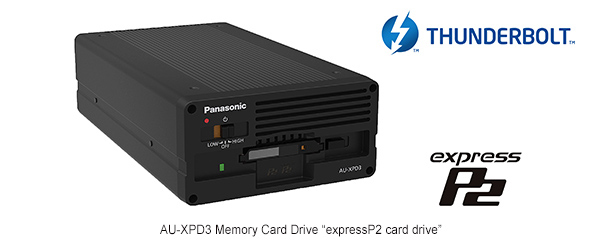

The AU-XPD3 Memory Card Drive uses the Thunderbolt™ 3 interface to achieve high speed data transfer using expressP2 card B series for VariCam cameras. The AU-XPD3 takes full advantage of the high data transfer performance (maximum 10 Gbps), enables offloading of 512 GB content (AVC-Intra 4K422/24p recording of about three hours) in approximately seven minutes. When two AU-XPD3 units are daisy-chained, data can be transferred at an increased speed of 17.6 Gbps.
Express-P2-Card-reader-1

The high-speed Thunderbolt 3 interface incorporated in the AU-XPD3 is capable of transferring data at a maximum speed of 40 Gbps, which is eight times faster than the transfer speed of USB 3.0, and also Supports daisy-chain connection of the up to six devices.

r74pxk0v

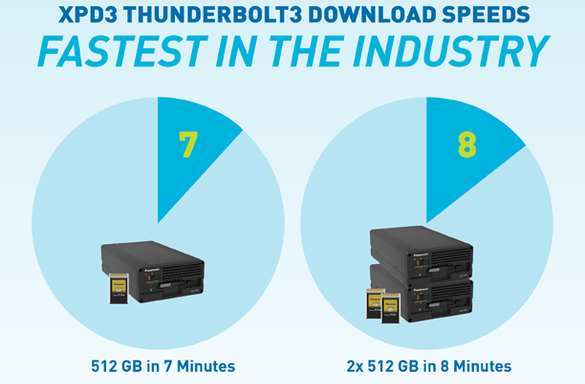

One AU-XPD3 can download a 512 GB expressP2 card (AVC-Intra 4k 4:2:2 24p) in seven minutes. Two daisy-chained AU-XPD3 units can download two 512 GB cards (AVC-Intra 4k 4:2:2 24p) in eight minutes
