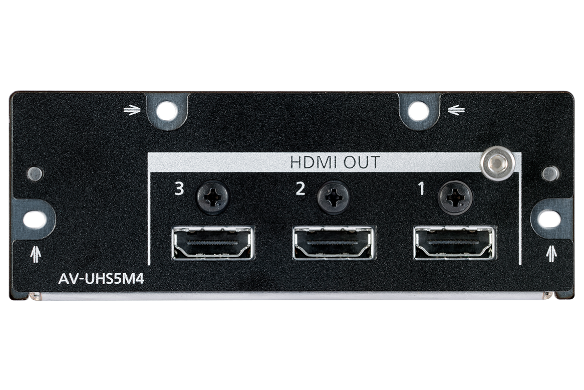

AV-UHS5M4 HDMI Output Expansion Card
$4,000 MSRP
The AV-UHSM4G HDMI 2.0 Output expansion card adds 3 HDMI 2.0 outputs for HD or 4K video output to your AV-UHS500 live production professional video switcher. One or two of these upgrade cards can be installed in the AV-UHS500 video switcher.
- HDMI 2.0 x 3 outputs
- Scaler for each channel
Featured Specs
| SKU | AV-UHS5M4G |
|---|---|
| Weight | Approx. 353 g (Approx. 0.78 lbs.) |
| Dimensions (W x H x D) | 112 mm x 42 mm x 166 mm |
| Power consumption | 16 W 1.3 A |
| HDMI Output | HDMI OUT 1 to HDMI OUT 3 Terminals 3 lines Mode: Fit-V, Fit-H, Full, Full-90%, Full-80% Size: Auto, WQHD (2560 x 1440, 60 Hz), WUXGA (1920 x 1200, 60 Hz), UXGA (1680 x 1200, 60 Hz), WSXGA+ (1680 x 1050, 60 Hz), SXGA (1280 x 1024, 60 Hz), WXGA (1280 x 768, 60 Hz), XGA (1024 x 768, 60 Hz), Native Color: Auto, RGB, YUV444, YUV422 • Connectors: HDMI x 3 • PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, Key Out can be assigned. • Scaler and Color space conversion function |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Ambient Operating Humidity | 10% to 90% (no condensation) |
| Ambient Operating Humidity | 10% to 90% (no condensation) |
| Power Supply | DC 12 V Supplied by AV-UHS500 |
| Ambient Operating Temperature | 0°C to 40°C (32°F to 104°F) |
