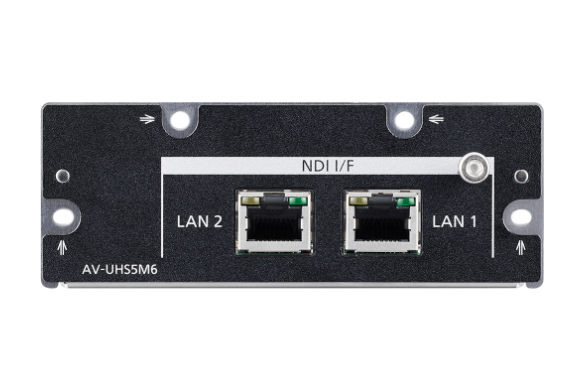

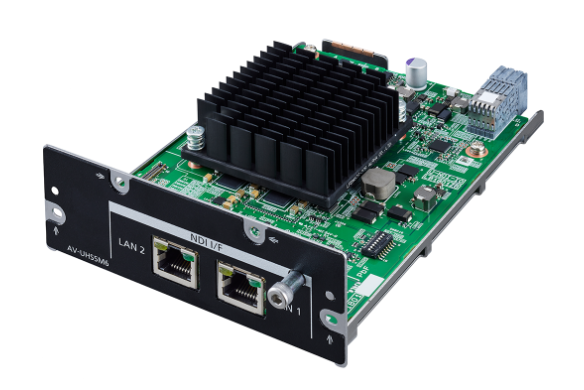

AV-UHS5M6G NDI Input-Output Expansion Card
AV-UHS5M6G NDI Input-Output Expansion Card 2

AV-UHS5M6G NDI Expansion Card

SKU:

  • AV-UHS5M6G
$4,500 MSRP

With this NDI I/F Unit attached, the Live Switcher AV-UHS500 supports input and output via the high quality, low latency video transmission of NDI® and the stable, low bit rate transmission of NDI®|HX. This enables the development of IP streaming systems covering operations from video transmission to camera control using a single LAN cable and supports remote live video production at sports and other event venues.

Contact sales

  • NDI® and NDI®|HX signals can be input directly from cameras to the AV-UHS500 using a single LAN cable
  • NDI® signals enable the AV-UHS500 to be connected to a streaming PC using a single LAN cable
  • Hardware processing enables the construction of highly-reliable IP systems
  • Remote live production that supports video transmission and camera control can be achieved when used in a system with Panasonic cameras with NDI® and NDI®|HX support

    4K_Professional_HDR_Gold_1492404860.0056  863a2cad553dacadbcdfae4eb945a3daafb3b15b

High-Quality Remote Live Video Production through NDI® & NDI®|HX

With this NDI I/F Unit attached, the AV-UHS500 live switcher supports input and output via NDI®* and the stable, low bit rate transmission of NDI®|HX*. This enables the construction of IP streaming systems covering operations from video transmission to camera control using a single LAN cable and supports remote live video production at sports and other event venues.

  • NDI® and NDI®|HX signals can be input directly from cameras to the AV-UHS500 with a single LAN cable. With NDI®, the AV-UHS500 can be connected to a streaming PC with a single LAN cable. Up to two units can be fitted to a single AV-UHS500.
  • Two LAN terminals (1 Gb each) secure a maximum bandwidth of 2 GB.
  • All input channels feature a built-in frame synchronizer. The Genlock function also supports synchronizing systems based on external sync signals (Black burst or Tri-level).
  • When used in combination with Panasonic cameras*1 that support NDI®*2 or NDI®|HX*2, operations from video transmission to camera control and tally output can be performed using a single LAN cable. By supporting camera operation in addition to video transmission, this unit enables remote live video production.

Table
NDI Maximum 3-4 inputs (in HD mode) 1-2 outputs (in HD mode)
Maximum 1 input (in 4K mode) 1 output (in 4K mode)
NDI|HX Maximum 2 inputs (in HD mode)
NDI®|HX version 2 is also supported. NDI®|HX is only supported for input and is only supported in HD mode.
*: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow. NDI® is a registered trademark of NewTek, Inc. in the United States and other countries. *2: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow. NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
