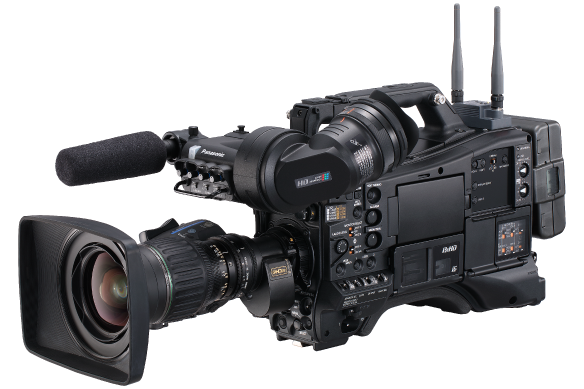

HDR-Ready Shoulder-Mount ENG Camera
$25,000 MSRP | Camera Body
The AJ-PX5100 is a B4 shoulder-mounted P2HD ENG camera, featuring a lightweight body, offering HDR (HLG) content and 1080/60p recording and is ideal for network news, documentaries, high-end corporate/sports production and rentals.
- Supports HDR image acquisition and outputs SDR while acquiring HDR
- Offers a streaming function compatible with RTMP, in addition to RTSP, and is P2 Cast and P2 Streaming Server compatible
- 1080/60p recording and 3G-SDI output
- AVC-Intra or AVC-LongG high-quality images and dual codec recording of AVC-Proxy
- Includes various network connections, such as Wired/wireless LAN, 4G/LTE and Bonding Services with LiveU, TVU Networks & more!
Featured Specs
| SKU | AJ-PX5100 |
|---|---|
| General | - |
| Power sup | DC 12 V (11.0 V to 17.0 V) |
| Power consumption | 29W (body only, 1080/59.94i, AVC-Intra100 standard recording status, LCD ON) 70W (with all optional accessories connected and maximum power supplied from each output terminal) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% to 85% (relative humidity) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 3.4 kg (7.5 lbs.) (body only, excluding the battery and accessories) |
| Dimensions | 147 mm (W) x 267 mm (H) x 342 mm (D) (5-25/32 inches x 10-1/2 inches x 13-15/32 inches) Body only, excluding protrusion |
| Camera Unit | - |
| Pickup Devices | 1/3 type 2.2 million pixels, MOS x 3 |
| Lens Mount | 1/3 type bayonet |
| ND filter | 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
| Gain setting | NORMAL mode: 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB HIGH SENS mode: -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB |
| Super Gain (S.GAIN) | Selectable from 24 dB, 30 dB, 36 dB |
| Shutter Speed | 60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. |
| Synchro Scan Shutter | 60i/60p mode: 1/60.0 sec. to 1/249.8 sec. 30p mode: 1/30.0 sec. to 1/249.8 sec. 24p mode: 1/24.0 sec. to 1/249.8 sec. 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec. |
| Slow Shutter Speed | 60i/60p mode: 1/15 sec., 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. 50i/50p mode: 1/12.5, 1/12.5 sec. 25p mode: 1/12.5 sec. |
| Shutter Open Angle | 3.0 deg to 360.0 deg (in 0.5 deg steps, angle display) |
| Sensitivity | NORMAL mode: F8 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F9 (2000 lx, 3200 K, 89.9% reflection, 1080/50i) HIGH SENS mode: F11 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F12 (2000 lx, 3200 K, 89.9% reflection, 1080/50i) |
| Horizontal Resolution | 1000 TV or higher (center) |
| Memory Card Recorder | - |
| Recording Media | P2 card x1, microP2 card x2 |
| System format | 1080/59.94p, 1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50i |
| Recording Format | AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/ AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV formats switchable |
| Recording video signal | 1080/59.94p, 1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p, 1080/50p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p |
| Recording/Playback Time* | AVC-Intra 100/DVCPRO HD | 30 GB x 1: Approx. 30 min., 32 GB x 1: Approx. 32 min. 60 GB x 1: Approx. 60 min., 64 GB x 1: Approx. 64 min. |
| Recording/Playback Time* | AVC-Intra 50/AVC-LongG 50/DVCPRO50 | 30 GB x 1: Approx. 60 min., 32 GB x 1: Approx. 64 min. 60 GB x 1: Approx. 120 min., 64 GB x 1: Approx. 128 min. |
| Recording/Playback Time* | AVC-LongG 25/DVCPRO/DV | 30 GB x 1: Approx. 120 min., 32 GB x 1: Approx. 128 min. 60 GB x 1: Approx. 240 min., 64 GB x 1: Approx. 256 min. |
| Recording/Playback Time* | AVC-LongG12 | 30 GB x 1: Approx. 225 min., 32 GB x 1: Approx. 240 min. 60 GB x 1: Approx. 450 min., 64 GB x 1: Approx. 480 min. |
| Note | * These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips. |
| Digital Video | - |
| Sampling Frequency | AVC-Intra100/AVC-LongG25/AVC-LongG12 | Y: 148.3516 MHz, PB/PR: 74.1758 MHz (1080/59.94p) Y: 148.5000 MHz, PB/PR: 74.2500 MHz (1080/50p) |
| Sampling Frequency | AVC-Intra100/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD | Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz) |
| Sampling Frequency | DVCPRO50 | Y: 13.5 MHz, PB/PR :6.75 MHz |
| Sampling Frequency | DVCPRO | Y: 13.5 MHz, PB/PR: 3.375 MHz |
| Quantizing | AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25: 10 bit AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bit |
| Video compression | AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 DVCPRO HD/DVCPRO50/DVCPRO: DV-Based Compression DV: DV Compression |
| Digital Audio | - |
| Recording audio signal | AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4 CH and 48 kHz/24 bit, 4 CH switch AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4 CH AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4 CH |
| Headroom | 18 dB/20 dB (switchable with menu) |
| Proxy | - |
| Video Compression Format | H.264/AVC Baseline Profile, H.264/AVC High Profile |
| Audio Compression Format | AAC-LC, Linear PCM |
| Approx. Recording Time* (1GB) | AVC-G6 2CH MOV: Approx. 13 min. SHQ 2CH MOV: Approx. 25 min. HQ 2CH MOV: Approx. 78 min. LOW 2CH MOV: Approx. 135 min. |
| Video input/output | - |
| SDI OUT1 | BNCx1 HD SDi (3G/1.5G), SD SDI: 0.8 V [p-p], 75 ohms |
| SDI OUT2/IN | BNCx1, SDI OUT2, SDI IN (menu selection) (Can be switched to HD SDI/SD SDI on SmartUI.) HD SDi (1.5G), SD SDI: 0.8 V [p-p], 75 ohms |
| GL IN/VIDEO OUT | BNC x1, GENLOCK IN, VIDEO OUT (menu selection) GENLOCK IN: 1.0 V [p-p], 75 ohms VIDEO OUT: Composite, 1.0 V [p-p], 75 ohms |
| HDMI OUT | HDMI x 1 (HDMI type A terminal, not compatible with VIERA Link) |
| Audio Input/Output | - |
| Audio IN CH1/3, AUDIO IN CH2/4 | XLR (3 pin) x 2, LINE/MIC (switch selection) LINE: 0 dBu MIC: -50 dBu/-60 dBu (menu selection), +48 V ON/OFF (switch selection) |
| MIC In | XLR (3 pin) x 1, +48 V supported (selectable menu) -40 dBu/-50 dBu/-60 dBu (selectable menu) |
| Wireless IN | 25 pin, D-SUB, -40 dBu, 2 CH supported |
| Audio OUT | Pin jack x 2 (CH1, CH2), Output level: 600 ohms, 316 mV |
| Phones OUT | 3.5 mm diameter stereo mini jack x1 |
| Speaker | 20 mm diameter, round x 1 |
| Other Input/Output Signal | - |
| TC IN/OUT | BNCx1, IN/OUT (menu selection) IN: 0.5 V [p-p] to 8 V [p-p], 10 k ohms OUT: 2.0 ±0.5 V [p-p], Low impedance |
| LAN | 100BASE-TX/10BASE-T |
| USB 2.0 (Device) | Type B connector, 4 pin |
| USB 2.0 (HOST) | Type A connector, 4 pin |
| USB 2.0 (Sub Host) | Type A connector, 4 pin (exclusively for wireless module AJ-WM30) |
| DC IN | XLR x 1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V) |
| DC OUT | 4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A |
| REMOTE | 10 pin |
| LENS | 12 pin |
| EVF | 20 pin |
| Included accessories | Shoulder strap, Mount cap |
"Everywhere" News Gathering
The AJ-PX5100 is a B4 shoulder mounted P2HD camera-recorder which upgrades on the successful PX5000 series. With its breadth of recording options and exceptional image quality, the PX5100 is targeted at network news, documentary, high-end corporate and sports production, as well as the rental market.
Uncompromising Image Quality
Maintaining the same Full HD 2/3 type 3 MOS sensor in a lightweight 7.5 lb body, the new camera also offers HDR(HLG) content and 1080/60p recording for the first time in a Panasonic ENG camera.
The Ultimate Connected Camera

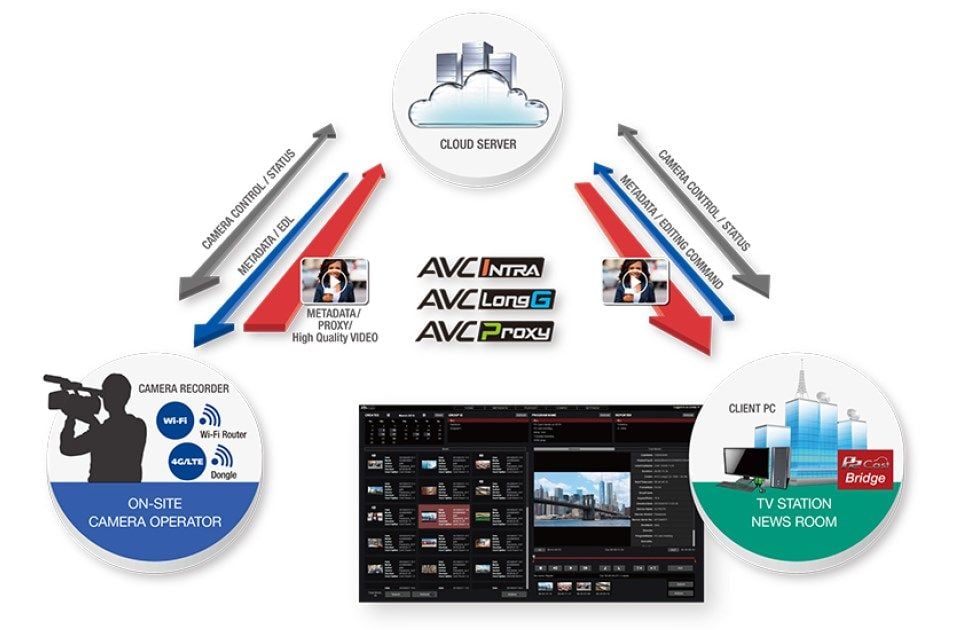

In addition, Panasonic has improved the connectivity of the new camera with RTMP low-latency communication as a standard. It means the camera can deliver smooth streams and transmit information between the camera and newsroom more quickly than before, speeding up news workflows. The AJ-PX5100 also features wireless and wired connectivity with Wi-Fi, USB, and Gigabit Ethernet, as well as bonding with both the LiveU and TVU networks. The AJ-PX5100 also supports P2 Cast, Panasonic`s cloud-based news editing system.

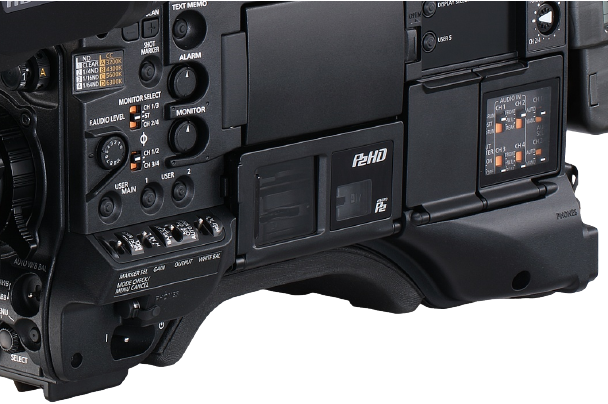

Ergonomically Designed
The camera features a brand-new Quad HD LCD monitor for improved outdoor visibility and four times the number of pixels of standard definition monitors. Paired with an ergonomically designed shoulder-mount and engineered for proper weight balance, the AJ-PX5100 has been field-tested to ensure comfortable sustained use for long on-site reports or reality TV show/documentary style shooting.
