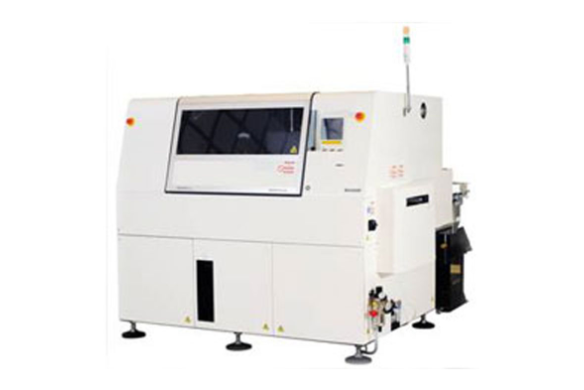

RL132 Radial Through-Hole Inserter
The Panasonic Connect RL132 high-speed radial lead component insertion machine offers generation-ahead technology in a spatially-efficient footprint.
The RL132's combination of 25,700 CPH (.14s/component) insertion rates, board processing sizes up to 650 x 381mm, a 33% reduction in PCB transfer time, up to 18% reduction in electrical and air consumption per insertion and an improved perishable parts lifespan results in a very low cost of ownership.
This through-hole machine features a 4 pitch span and is configurable with 40 or 80 components inputs. Meanwhile, its dual split carriage enables machine function at exchange mode and parts replenishment during production. Plus exhaust detection and full auto-recovery allow for non-stop productivity.
- High-speed radial insertion at 25,700 CPH with 40 or 80 inputs.
- Wide pitch range encompassing 2.5/5.0/7.5 and 10mm pitch in a common platform- eliminating the need for post insertion manual placements of 10 mm pitch components
- Auto-recovery and part exhaust detection
- Enhanced programmable T-Clinch technology ensures interference-free insertions by eliminating shorts on underside layout
- Wide component range up to 23mm in height with 0° to 359° insertion angles
Featured Specs
| SKU | NM-EJR5A/NM-EJR6A |
|---|---|
| Model ID | RL132 |
| Model No. | NM-EJR5A |
| PCB Dimensions (mm) | L 50 mm x W 50 mm to L 508 mm x W 381 mm |
| Maximum Speed | 0.14 s/component |
| No. of Component Inputs | 40 |
| Applicable Components | Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor |
| PCB Exchange Time | ~2s to about 4s (Room temperature 20℃) |
| Insertion Direction | 360° direction by 1° increment |
| Electric Source * | 3-phase AC 200 V, 3.5 kVA [*1] |
| Pneumatic Source | 0.5 MPa, 80 L /min (A.N.R.) |
| Dimensions (mm) * | W 2,104 x D 2,183 x H 1,575 [*2] |
| Mass * | 1,750 kg [*3] |
| Model No. | NM-EJR6A |
| PCB Dimensions (mm) | L 50 x W 50 to L 508 x W 381 |
| Maximum Speed | 0.14 s/component |
| No. of Component Inputs | 80 (Connection mode), 40 + 40 (Exchange mode) |
| Applicable Components | Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor |
| PCB Exchange Time | ~2s to about 4s (Room temperature 20℃) |
| Insertion Direction | 360° direction by 1° increment |
| Electric Source * | 3-phase AC 200 V, 3.5 kVA [*1] |
| Pneumatic Source | 0.5 MPa, 80 L /min (A.N.R.) |
| Dimensions (mm) * | W 3,200 x D 2,417 x H 1,575 [*2] |
| Mass * | 2,350 kg [*3] |
