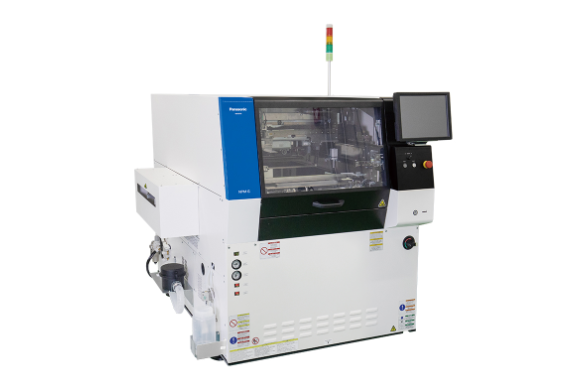

NPM-GP/L Next-Generation Printer
The NPM-GP/L is the newest screen printer added to the NPM-G Series that optimizes Overall Equipment Effectiveness and enhances overall line performance.
It automatically retrieves on-mask soldering after printing and transfers the solder to the mask for the next model. It can also monitor solder paste in real time via the APC-5M function to optimize timing of maintenance and environmental conditions. The NPM-G Series can immediately respond to customer supply and demand changes through continuous, autonomous updates and make autonomous factories a reality.
- Printing cycle time of 12 seconds
- Repeated positioning accuracy of ±3.8 μm
- Model changeover and solder transfer and supply automation reduce production time and machine downtime
- Incorporates unit cleaning for each cycle and optimized maintenance timing
Featured Specs
| SKU | NM-EJP2B |
|---|---|
| Model ID | NPM-GP/L |
| Model No. | NM-EJP2B |
| PCB Dimensions (mm) * | L 50 mm × W 50 mm to L 510 mm × W 510 mm [*1] |
| PCB Exchange Time * | 12.0 s including transport , PCB positioning , PCB recognition , printing , each cleaning operation (When PCB = L 250 mm × W 150 mm) [*2] |
| Repeatability | 2 Cpk ± 3.8 μm ± 3σ (Panasonic-specified condition) |
| Printing Accuracy | 2 Cpk ±15.0 μm ± 6σ (Panasonic-specified condition) *CeTaQ measuring machine used |
| Screen Frame Dimensions (mm) * | L 736 mm × 736 mm , L 750 mm × 750 mm , L 650 mm × 550 mm , L 600 mm × 550 mm L 550 mm × 650 mm , L 584 mm × 584 mm , L 736 mm × 584 mm , L 584 mm × 736 mm [*3] |
| Electric Source * | Single-phase AC 200 V ±10 V / AC 220 V ±10 V / AC 230 V ±10 V / AC 240 V ±10 V (Taps can be changed) , Max.3.3 kVA [*4] |
| Pneumatic Source | 0.5 Mpa , 30 L / min (A.N.R.) (motor vacuum specs) , 400 L / min (A.N.R.) (ejector vacuum specs) |
| Dimensions (mm) * | W 1,580 mm × D 1,800 mm × H 1,500 mm [*5] |
| Mass * | 1,750 kg [*6] |
