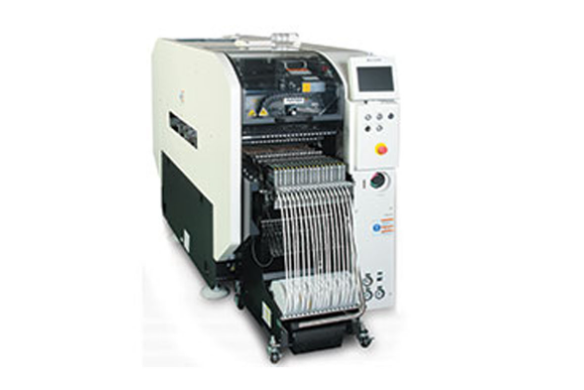

NPM-D3A High Volume Placer
The compact dual-beam NPM-D3A offers a reinforced frame, advanced head, and award-winning Multi Recognition Camera improve placement accuracy down to 30um, and capable achieving a maximum CPH of 92,000.
The NPM-D3 is an industry standard building block in high-speed, high volume applications ranging from automotive to industrial to medical. In fact, the vast majority of automotive EMS providers choose Panasonic Connect solutions.
The NPM-D3 is an industry standard building block in high-speed, high volume applications ranging from automotive to industrial to medical. In fact, the vast majority of automotive EMS providers choose Panasonic Connect solutions.
- Single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm
- Capable of placing large connectors, odd-shaped components, and advanced packaging types such as PoP
- Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series
- Cost-effective and high quality production
Featured Specs
| SKU | NM-EJM4D |
|---|---|
| Model ID | NPM-D3A |
| Model No. | NM-EJM6E |
| PCB Dimensions (mm)* | Dual-Lane Mode: L 50 × W50 ~ L 510 × W 300 Single-Lane Mode: L 50 × W50 ~ L 510 × W 590 [*1] |
| PCB Exchange Time * | Dual-Lane Mode: 0s* *No 0s when cycle time is 3.6 s or less Single-Lane Mode: 3.6s* *When selecting short conveyors |
| Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA |
| Pneumatic Source * | 0.5 MPa, 100 L /min (A.N.R.) [*2] |
| Dimensions (mm) * | W 832 × D 2,652 [*3] × H 1,444 [*4] [*2] |
| Mass | 1 680 kg (Only for main body : This differs depending on the option configuration.) |
