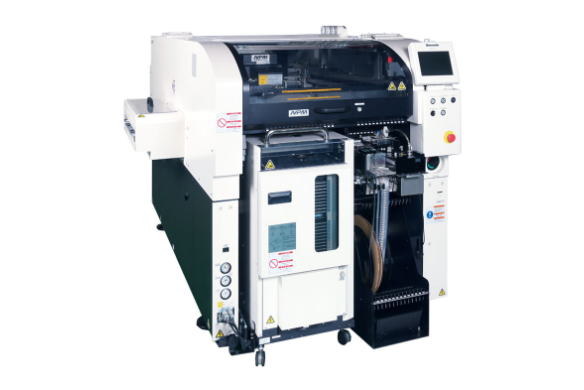

NPM-W2 Versatile Platform
The NPM-W2 amplifies the original NPM-W capabilities with a 10% throughput boost and 25% more accuracy. It also integrates new innovations like our incomparable Multi Recognition Camera. Combined, these features extend the component range down to the 03015mm microchip, yet preserve capability up to 120x90mm components up to 40mm tall and nearly 6” long (150mm) connectors.
Featuring a revolutionary Multi Recognition Camera that uniquely combines three separate imaging capabilities into a single system: 2D alignment, component thickness inspection, and 3D coplanarity measurement.
Featuring a revolutionary Multi Recognition Camera that uniquely combines three separate imaging capabilities into a single system: 2D alignment, component thickness inspection, and 3D coplanarity measurement.
- Higher productivity and quality with printing, placement and inspection process integration
- For larger boards and larger PCBs up to a size of 750 x 550 mm with component range up to L150 x W25 x T30 mm
- Higher area productivity through dual lane placement
- Quick-change feeder carts and nozzle banks
- Lightweight 16-nozzle head (for 77,000 CPH) with increased placement accuracy to 25um (cpk ≥ 1.0)
Featured Specs
| SKU | NM-EJM7D/NM-EJM7D-A/NM-EJM7D-D/NM-EJM7D-MA/NM-EJM7D-MD |
|---|---|
| Model ID | NPM-D2 |
| Model No. | NM-EJM7D NM-EJM7D-A NM-EJM7D-D NM-EJM7D-MA NM-EJM7D-MD *See spec sheet for nozzle head configuration |
| PCB Dimensions (mm)* | Single-lane Batch mounting: L 50 x W 50 ~ L 750 x W 550 2-position mounting: L 50 x W 50 ~ L 350 x W 550 [*1] |
| PCB Dimensions (mm)* | Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 260 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 260 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 510 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 510 [*1] |
| Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.8 kVA |
| Pneumatic Source * | 0.5 MPa, 200 L /min (A.N.R.) [*2] |
| Dimensions (mm) * | W 1,280 [*3] × D 2,332 [*4] × H 1 444 [*5] [*2] |
| Mass | 2,470 kg (Only for main body : This differs depending on the option configuration) |
