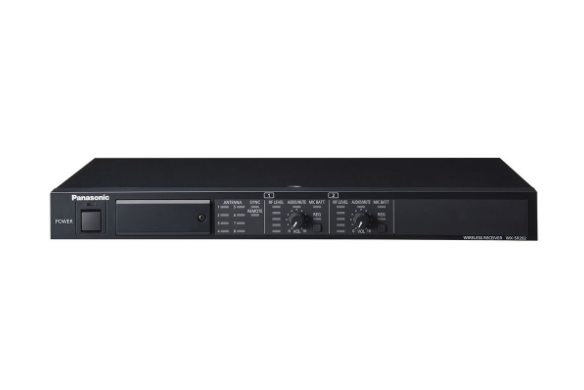

2-Channel Digital Wireless Mic Receiver

SKU:

  • WX-SR202
Featured Specs

The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR202 digital wireless receiver supports two wireless microphone channels (choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks).  Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SR202 features RJ45 connections (for CAT5 / CAT5e / CAT6 cables) for up to eight (8) external antennas (WX-SA250) and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, and others. LEDs on the front panel show the system status during start up & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure europlug connectors for channel output, external audio input and mix output provide peace of mind that they will not detach easily in any type of installation. Multiple WX-SR202’s can be installed to support up to 8 microphone channels in a single room. Ships with rack ears for easy rack mount installation.    Leveraging Panasonic's 20-year experience in DECT wireless audio communications, the WX-SR200P 1.9 GHz digital wireless microphone system is the best-in-class solution for classroom or corporate presentations providing low latency for hybrid in-room/virtual presentations.  Panasonic's digital wireless microphone system is easy to set up, easy to integrate with third-party control systems (such as Crestron, Extron, & Q-SYS) and easy to use.  Setup is a breeze - the WX-SR202 digital wireless receiver easily pairs with Panasonics WX-ST200 and WX-ST400 microphones and assigns channels automatically, eliminating the need for manual channel assignment. The system can be expandable to suit a variety of spaces, from small classrooms, medium sized classrooms / conference rooms, to large auditoriums. Up to 8 separate antennas (per receiver) can be mounted to the wall or the ceiling in the room and connected via CAT5 back to the receiver locked away in a cabinet or closet and multiple 2-channel receivers can be installed to add wireless microphone channels to the room.

Contact sales
HETMA-Logo-100x100 (1)

  • Two channel digital wireless receiver
  • Easy to set up - No need for planning / allocation of channels; Secure pairing with Panasonic microphones
  • Supports nearly any room size, up to 8 antennas can be connected, external audio input and mixing with mic channels
  • Ethernet networking enables additional configuration from Panasonic settings software and easy integration with 3rd party control systems (Crestron, Extron & Q-SYS modules available).
  • Rack mountable (1u high, rack ears included)

Featured Specs

SKU WX-SR202
Wireless Frequency 1920 MHz to 1930 MHz receiver
Channel Output Circuits 2
Channel Output Connectors euroblock
Channel Output Characteristics -10 dBV balanced 600 Ohms
Channel Output Signal to Noise Ratio 70 dB or greater
Channel Output Frequency Response 50 Hz to 15 kHz
Channel Output Distortion less than  3%
Audio Input Characteristics -10 dBV balanced 600 Ohms
Audio Input Frequency Response 50 Hz to 15 kHz
Audio Input Distortion less than  3%
Mix Output Connectors euroblock
Mix Output Characteristics -10 dBV balanced 600 Ohms
Mix Output Signal to Noise Ratio 64 dB or greater
Mix Output Frequency Response 50 Hz to 15 kHz
Mix Output Distortion less than  3%
Antenna Connectors 8 x RJ45
(compatible cables: CAT5 / CAT5e / CAT6 straight)
wiring distance up to 656 feet (200m)
Accessories (included) rack ears
Warranty-Parts/Labor 3 Years
Power consumption 39 Watts
Power source AC 120 V 60 Hz
Operating Ambient Temperature 30 deg. F to 113 deg. F (0 deg. C to 45 deg C)
Weight 6.17 lbs (2.8 kg)
Dimension (W x D x H ) 16-17/32 in W x 9-27/32 in H x 1-47/64 in D (420mm W x 250mm D x 44mm H)
Antenna Field Selection 4 selectable range settings (selectable via dip switches on front panel or using the Panasonic Operations Support software)

Panasonic Connect’s Professional Audio Digital Wireless Microphone Portfolio

Audio solutions that can scale to any size or layout of meeting space, conference room, boardroom, lecture hall, or auditorium to ensure sound is clear for effective communication in-person or remote is critical. Panasonic Connect’s wireless microphone, receiver and software integration additions to its 1.9 GHz digital wireless microphone system provide durable technology that delivers superior dialog clarity and a variety of connectivity options for added flexibility.

Conference Mode Feature for Panasonic Connect’s Digital Wireless Microphones

Conference mode is an added new feature for compatible Panasonic Connect wireless microphone receivers to provide flexibility for the type(s) of wireless microphones used. In conference mode, up to 6 wireless microphones can be paired with one channel on a compatible wireless mic receiver but only one microphone per channel can be used at a time (WX-SR202DN, WX-SR204, WX-SR204DN, WX-SE200, WX-SE200DN; firmware upgrade required for both the compatible wireless mic receiver and WX-SA250 antenna). With conference mode, businesses can save money, provide their users with the flexibility to choose the microphone they wish to use without having to pair / re-pair the microphone with the receiver and be more efficient with channel count. End users can easily set conference mode using the Operation Support Software, available free of charge.
