Dante Expansion Receiver

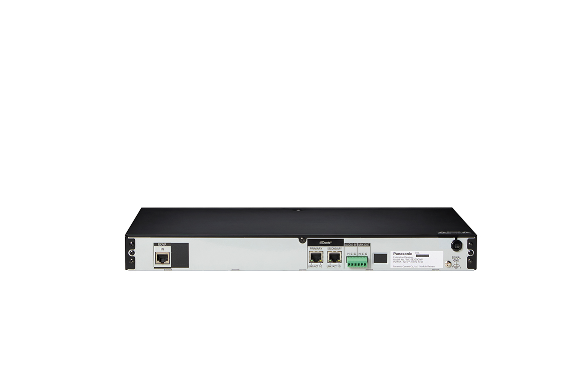

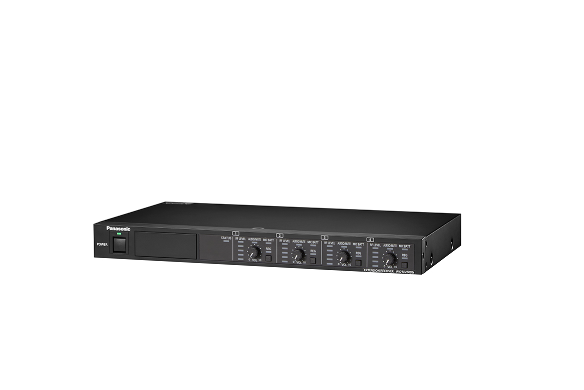

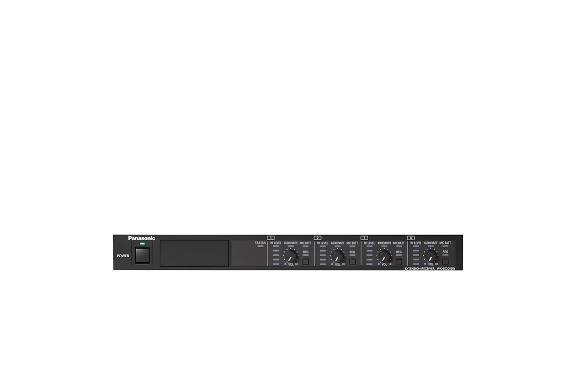

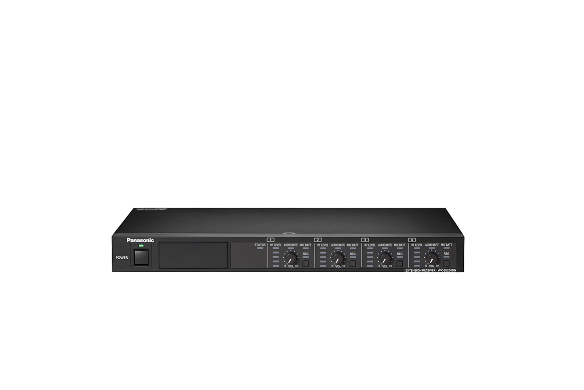

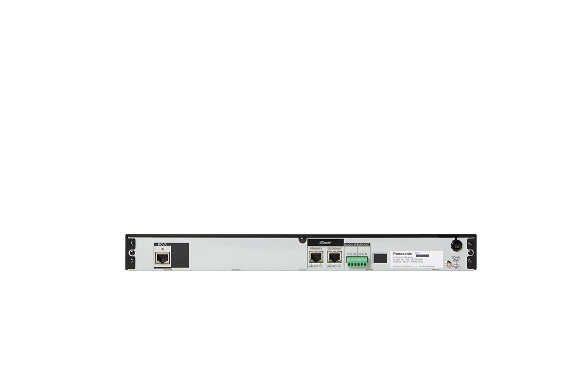

Designed to be used with Panasonic’s WX-SR204DN 4-channel wireless mic receiver, the WX-SE200DN expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*. Choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, retail, and bars / restaurants, the WX-SE200DN features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204 4-channel wireless receiver, and Dante® primary and secondary connections for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.*Depends on room size and desired coverage.
- Provides Expansion to up to 4 additional wireless mic channels to an existing 4-channel system (WX-SR204DN required) without the need to install additional antennas.
- Dante® digital audio connections (2 x RJ45, 1 primary & 1 secondary) with AES67 mode. Dante Domain Manager Ready!
- Easy to setup – no need for planning / allocation of channels; Secure pairing with Panasonic microphones
- Supports external audio input and mixing with mic channels
- Rack mountable (1u high, rack ears included)
- API for Panasonic WX-SR200 Series Wireless Microphone System (PDF)
- Conference Mode for Panasonic Wireless Mics Whitepaper (PDF)
- Panasonic Pro Audio + PTZ Camera Integration Brochure (PDF)
- 2022 Panasonic Pro Audio Brochure (PDF)
- WX-SE200, WX-SE200DN Wireless Mic Receiver Firmware v. 6.0 (ZIP)
- WX-SE200DN Operation Instructions (PDF)
- WX-SE200DN Features & Specifications (PDF)
- WX-SE200DN CAD (DXF)
- WX-SE200DN CAD (PDF)
Featured Specs
| SKU | WX-SE200DN |
|---|---|
| Weight | 6.17 lbs. (2.8 kg) |
| Dimensions (W x H x D) | 16-17/32 x 1-47/64 x 9-27/32 inches (420mm x 44mm x 250mm) |
| Power | AC 120 V 60 Hz |
| Warranty-Parts/Labor | 3 Years |
| Power consumption | 39 Watts |
| Display | LEDs for Power, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register |
| AUDIO INPUT | 1.9 GHz DECT Wireless, EuroBlock (for external audio input) |
| Operating Ambient Temperature | 32° F to 113°F (0°C to 45°C) |
| Channel Output Circuits | 4 |
| Channel Output Connectors | Dante (RJ45), Euroblock (for mix output only) |
| Channel Output Characteristics | Dante Primary & Secondary: CH1/Ch2/MIX Euroblock connector: MIX only @ -10dBV balanced 600 Ohms |
| Channel Output Signal to Noise Ratio | 70 dB or greater |
| Channel Output Frequency Response | 50 Hz to 15 kHz |
| Channel Output Distortion | less than 3% |
| Audio Input Characteristics | -10 dBV balanced 600 Ohms |
| Audio Input Frequency Response | 50 Hz to 15 kHz |
| Audio Input Distortion | less than 3% |
| Mix Output Connectors | Dante Primary & Secondary or Euroblock |
| Mix Output Characteristics | Dante Primary & Secondary or Euroblock -10 dBV Balanced 600 Ohms |
| Mix Output Signal to Noise Ratio | 64 dB or greater |
| Mix Output Frequency Response | 50 Hz to 15 kHz |
| Mix Output Distortion | less than 3% |
| Accessories (included) | Rack Ears |
| Extension Connector | 1 x RJ45, for WX-SR202 4-ch Receiver (required; sold separately) |
