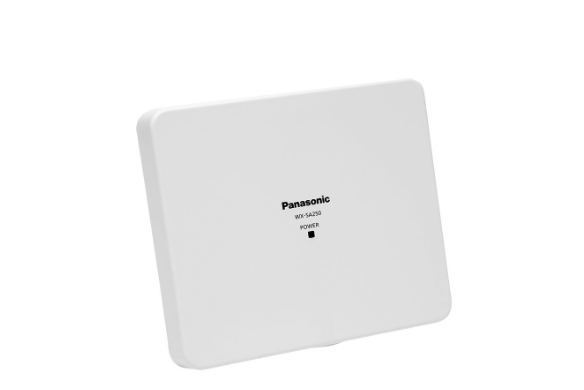

Wireless Antenna
The WX-SA250 wireless antenna, a component of Panasonic's Digital Wireless Microphone system, ensures line of sight communication with ST200 mics, routing signals to the WX-SR202 receiver via CAT5/6. It supports multiple placements for different room sizes or systems, with a range of 131 feet, adjustable to reduce interference. Mountable on walls, ceilings, or mic stands, it's backed by Panasonic's 20 years of DECT wireless expertise, ensuring low latency (23ms) for hybrid presentations. Easy to set up and integrate with systems like Crestron and Extron, it simplifies pairing with WX-ST200 and WX-ST400 mics. The scalable system fits various spaces, allowing up to 8 antennas per receiver for extended coverage.
- Provides in-room line of sight connection with Panasonic's WX-ST wireless microphones; enabling the wireless receiver to be locked away in a cabinet or rack.
- Easy to install and configure with flexible mounting options (on wall, on ceiling or to a microphone stand); mounting plate included
- Connects via CAT5/6 cable back to WX-SR202 digital wireless receiver (up to 8 can be connected to one receiver)
- Selectable range to accomodate room size and minimize interference with multiple systems installed in adjacent rooms.
- Multiple antennas can be installed in one zone for maximum coverage.
- 2022 Panasonic Pro Audio Brochure (PDF)
- Conference Mode for Panasonic Wireless Mics Whitepaper (PDF)
- WX-SA250 Firmware v6.0 (ZIP)
- API for Panasonic WX-SR200 Series Wireless Microphone System (PDF)
- Instruction Manual for Easy Wireless Mic System Design Tool Software (ver 3.0) (PDF)
- 2022 Professional Audio Product Quick Reference Line Card (PDF)
- Best Practices for Cleaning Panasonic Wireless Microphones (PDF)
- WX-SR200P Easy Wireless Mic System Design Tool (v3.0) (EXE)
- Panasonic Pro Audio Case Study: University of Michigan Ross School of Business (PDF)
- WX-SA250 Operating Instructions (PDF)
- WX-SA250 Features & Specifications (PDF)
- WX-SA250 Features & Specifications (PDF)
Featured Specs
SKU | WX-SA250 |
---|---|
Wireless Frequency | 1920 MHz to 1930 Mhz (internal antenna) |
Antenna Field Selection | Three-step switching (set at WX-SR202 receiver) operation support software of PC connected to receiver |
LED Indicators | Power |
Power source | CAT5 / CAT5e / CAT6 straight cable terminated with RJ45 connector run to WX-SR202 digital wireless reciever |
Operating Ambient Temperature | 14 deg. F to 122 deg. F (-10 deg. C to 50 deg. C) |
Installation | On Ceiling, On Wall, or On Microphone stand |
Water Resistance | IPX4 equivalent |
Dimensions/Weight | 7-9/32 in. W x 6-19/64 in. H x 1-17/64 in. D (185mm W x 160mm H x 32mm D) / 0.88 lbs (400g) |
Finish | sail white (color approximate to Munsell N9.3) |
Warranty-Parts/Labor | 3 Years |
