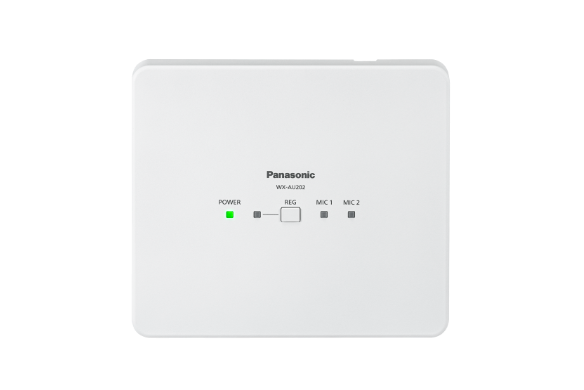

WX-AU202 Wireless Antenna Unit
new

Wireless Antenna 2ch Receiver

SKU:

  • WX-AU202
Featured Specs
The WX-AU202 2-channel wireless antenna receiver allows for the easy addition of 2 Panasonic DECT wireless microphones to a Panasonic Beamforming Ceiling Microphone Array system. This handy accessory connects directly to the WX-AM800 beamforming ceiling mic array (sold separately).
Contact sales

  • Built-in 2 ch DECT wireless mic receiver
  • Connected to Panasonic's WX-AM800 Beamforming Ceiling Microphone Array to add 2 Panasonic DECT wireless microphones
  • Adjustable range to accommodate room size & minimize interference with multiple wireless mic systems (3 settings)
  • Flexible Mounting Options and Mounting plate included.
  • LED indicators for wireless mic pairing, signal strength.

Featured Specs

SKU WX-AU202
Antenna Field Selection 3 ranges (select using Panasonic's Microphone Configuration Center Software)
Wireless Frequency 1921.536 MHz to 1928.448 MHz
Reception Area 3 Diversity Receptions
Audio Output 2 Channels
Rating -20dBV (unbalanced) Audio Output Rating
Frequency Response 160 Hz ~ 15 kHz
Audio Output Connector RJ45 (Panasonic protocol to WX-AM800 Beamforming Ceiling Microphone Array)
Operating Ambient Temperature 32 deg. F to 104 deg. F (0 dg. C to 40 deg. C)
LED Indicators Power, PEG, MIC 1, MIC 2
Power Source 24 V DC from WX-AM800 Beamforming Ceiling Mic Array
Compatible cables: CAT5e or CAT6 straight cable
Warranty - Parts/ Labor 3 years
Finish Sail White (color approximate to Munsell N9.3)
Included Accessories Mounting Plate
Dimensions (W x H x D) 8.35 in W x 7.24 in. H x 1.26 in D (212mm W x 184mm H x 32mm D)
Weight 1.06 lbs (480 g)

WX-AU202 Wireless Antenna 2ch Receiver

The WX-AU202 2-channel wireless antenna unit allows for the easy addition of 2 Panasonic DECT wireless microphones to a Panasonic Beamforming Ceiling Microphone Array system. This handy accessory connects directly to the WX-AM800 beamforming ceiling mic array (sold separately) via 1 CAT5e cable (maximum distance 195 feet). Easily pair up to 2 Panasonic DECT wireless microphones to the WX-AU202 antenna/receiver. Audio from the two DECT wireless microphone channels, along with the audio from the ceiling mic are transmitted back to the Dante network over a single CAT5e cable. Each antenna has a maximum range of 98 feet (30-meters) and is easily adjustable to 2 lower settings so you can easily accommodate room size and minimize interference with other Panasonic wireless microphone systems installed in adjacent rooms Includes a bracket for easy mounting on a wall or ceiling. Panasonic’s Microphone System Configuration Center Software, compatible with Microsoft® Windows 10 & 11, allows the user to set the room size, place the ceiling microphones pair the microphones and adjust the range of coverage for the WX-AU202 antenna as well as configure a whole host of audio DSP settings such as Acoustic Echo Cancellation, Audio Input Ducking, Equalization, Digital Noise Reduction, Panasonic PTZ Camera integration, and more!
