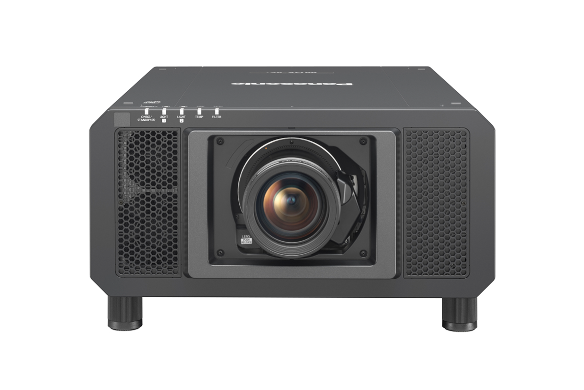

14,000lm 3-Chip DLP™ Projector
Ultra-Compact 3-Chip DLP™ Projector Sets the Benchmark for Events Rental/Staging with 14,000 lm AC 100–120 V
- Efficient and Profitable Events Production
- Compelling Visuals That Inspire the Audience
- Maintenance-free Reliability to Reduce Downtime
Featured Specs
| SKU | PT-RZ14K |
|---|---|
| Projector type | 3-Chip DLP™ projector |
| DLP™ chip | Panel size* | 20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| DLP™ chip | Display method * | DLP™ chip x 3, DLP™ projection system |
| DLP™ chip | Number of Pixels * | 2,304,000 (1920 x 1200 pixels) x 3 |
| Light source * | Laser Diode |
| Time until light output declines to 50 %*3 * | 20,000 hours (NORMAL), 24,000 hours (ECO) |
| Resolution * | WUXGA (1920 x 1200 pixels) |
| Screen size [diagonal] * | 1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95,5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200 |
| LENS * | Optional (no lens included with this model) |
| Keystone correction range * | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50,±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95),Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Terminals | SERIAL IN * | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT * | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN * | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT * | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals | REMOTE 2 IN * | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | DC OUT * | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Power supply * | AC 100–120 V*4 / AC 200–240 V |
| Dimensions (W x H x D) * | Approx. 550 x 220 x 570 mm (21 5/8˝ x 8 11/16˝ x 22 7/16˝) (not including protruding parts) |
| Operating environment * | Operating temperature: 0–45 °C (32–113 °F*7), operating humidity: 10–80 % (no condensation) |
| Applicable software * | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ |
| Note * | *1 This is the value when the Zoom Lens (Model No.: ET-D3LES20) is used. The value varies depending on the lens. *2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. *4 When operating the projector on AC 100–120 V power, the maximum light output maybe reduced if an optional third-party function board is installed. *5 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft). |
| Light Output*1 *2 * | 14,000 lm |
| Contrast ratio*2 * | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Center-to-corner zone ratio*2 * | 90 % |
| Lens shift | Vertical(From the origin point of the lens mounter) * | ±66 % (±52 % with ET-D75LE6/ET-D3LEW60, +71 % / +93 % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered) |
| Lens shift | Horizontal(From the origin point of the lens mounter) * | ±24 % (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered) |
| Installation * | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals | HDMI™ IN * | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3) |
| Terminals | DisplayPort™ * | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3) |
| Terminals | MULTI PROJECTOR SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose) * | BNC x 1 (TTL high impedance) |
| Terminals | MULTI PROJECTOR SYNC OUT/ 3D SYNC 2 OUT (dual purpose)) * | BNC x 1 (TTL output: Maximum 10 mA) |
| Terminals | LAN * | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | USB * | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | Expansion Slot * | Open slot for for function boards, Intel® SDM compatible |
| Power Consumption*5 | Maximum power consumption * | AC 200–240 V: 1,060 W (1,080 VA) (TBD)AC 100–120 V: 1,110 W (1,120 VA) (TBD) |
| Power Consumption*5 | On-mode power consumption (Operating mode) Nomal * | 970 W (TBD) |
| Power Consumption*5 | On-mode power consumption (Operating mode) ECO * | 760 W (TBD) |
| Operation noise*2 * | 40 dB (NORMAL/ECO) (TBD) |
| Weight*6 * | Approx. 35 kg (77.2 lbs) |
