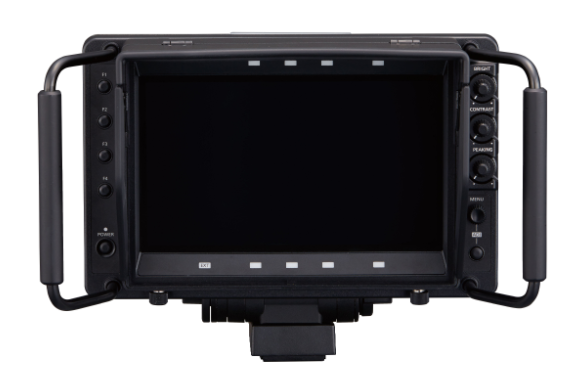

AK-HVF100 9" LCD Color Viewfinder
Light weight and high resolution (9-type IPS LCD 1920*1080, 1,100 TV lines) viewfinder with built-in mechanical lift versatile assist functions
- Focus assist functions
- External HD-SDI Input and 12V 4-pin XLR input
- Four assignable function switches
- Contrast, brightness and peaking are adjustable
Featured Specs
| SKU | AK-HVF100 |
|---|---|
| Power supply | DC 12 V (supplied from camera or XLR) |
| Power consumption | 18 W |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating humidity | 10% - 85% (no condensation) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Weight | Approx. 2.6 kg (5.73 lbs.) (not including hood) / Approx. 3.0 kg (6.61 lbs.) (including hood) |
| Dimensions (W x H x D) | 340 mm x 234 mm x 193 mm (13-13/32 inches x 9-7/32 inches x 7-5/8 inches) (not including hood) 340 mm x 234 mm x 231 mm (13-13/32 inches x 9-7/32 inches x 9-1/8 inches) (including hood) |
| Display Panel | 9.0 inches |
| Number of Pixels | 1920 x 1080 (FHD) |
| Display Color | Approx. 16.77 million colors |
| Operation | switch, button, dial button, /// buttons, knob, knob, knob, switch |

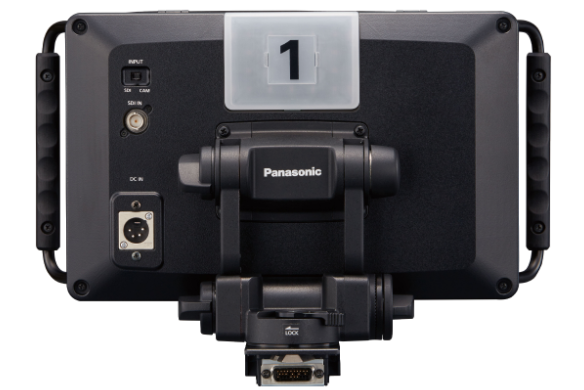

| Connector | Camera I/F connector (D-sub 29 pins x 1) SDI IN connector (BNC x 1) DC IN connector (XLR 4 pins x 1) |
| Supported Signal Format | CAM: 1080/59.94i, 1080/50i SDI: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Note | *1: Depending on the setting, only one of them can be selected at one time. *2: The BB (black burst) signal and tri-level sync signal of the reference input are recognized automatically. *3: IP video cannot be transmitted when [CCU MODE] is set to [2160/23.98p],[2160/23.98PsF], [1080/23.98p], or [1080/23.98PsF]. *4: Can be provided from CCU |
