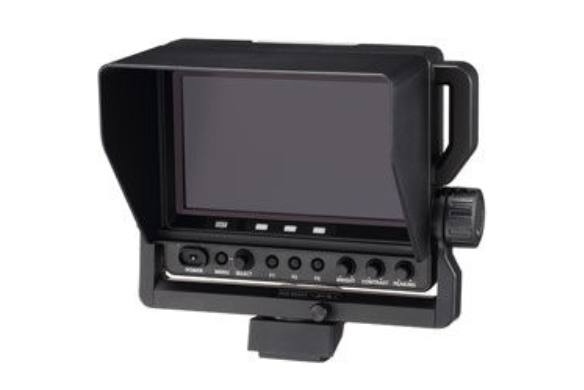

AK-HVF70 7" LCD Color Viewfinder
The AK-HVF70E is a 17,8cm (7") LCD color viewfinder with light weight, low power consumption and a high resolution plus versatile assist functions like focus-in-red and pixel-to-pixel. By direct connect functionality no separate cable is necessary to connect the VF to the studio camera.
- Resolution: 1024 x 600 (WSVGA)
- Three assignable function keys
- Focus assist functions (focus-in-red, pixel-to-pixel)
- Tilt angle: 90° upward and 60° downward
- Weight: 1,8kg
Featured Specs
SKU | AK-HVF70G |
---|---|
Weight | Approx. 1.6 kg (approx. 3.53 lb) (without hood) |
Dimensions (W x H x D) | 243.5 mm x 212 mm x 172 mm (9-19/32 inches x 8-11/32 inches x 6-25/32 inches) (with hood attached) 243.5 mm x 212 mm x 85 mm (9-19/32 inches x 8-11/32 inches x 3-11/32 inches) (without hood) |
Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
Power supply | DC 12 V (supplied by the camera) |
Power consumption | 10 W |
Operating humidity | 10% to 85% (no condensation) |
Storage Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
Display Colors | Approx. 16,200,000 colors |
Panel size | 177.8 mm (7.0 inches) |
Number of Pixels | 1024 pixel x 600 pixel (WSVGA) |
Operation Panel | POWER switch x 1, MENU button x 1 SELECT dial x1, Function buttons x 3 Picture adjusting knobs x 3 ([BRIGHT], [CONTRAST], [PEAKING]) |
Connector | Camera I/F connector (D-Sub 29-pin x 1) |
