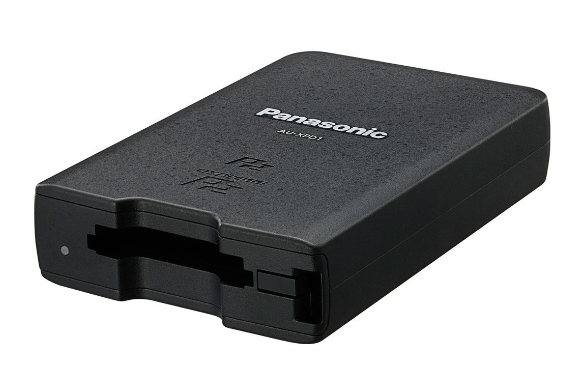

AU-XPD1 USB 3.0 expressP2 Card Drive

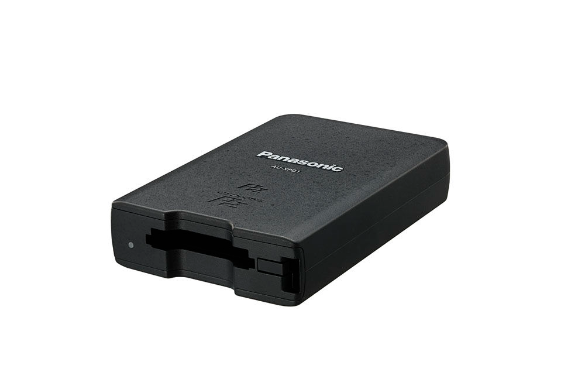

AU-XPD1 USB 3.0 expressP2 Card Drive3

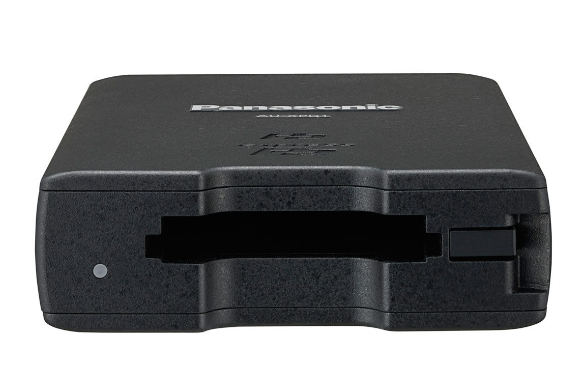

AU-XPD1 USB 3.0 expressP2 Card Drive 2

AU-XPD1 USB 3.0 expressP2 Card Drive

SKU:

  • AU-XPD1
Featured Specs
$495 MSRP

The expressP2 card drive is specifically designed to accommodate the new larger expressP2 solid state memory card and features USB 3.0 for fast transfer of content

Contact sales

AU-XPD1 ExpressP2 Drive Exchange

Customers using new B Series Express P2 Cards should contact Panasonic service in order to arrange delivery of a newly updated AU-XPD1 Drive by emailing ProVideoSupport@us.panasonic.com and using the subject line “AU-XPD1 Exchange."

  • Secure Content Protection System
  • No need for external power adaptor
  • USB 3.0 interface
    2e24c63a39973de6030aea85c635c259df2ce2ac15a4c8d26d8162b9a736dde5f6ed9a23fda22034e1f5777c53c196f2a0263363da09d05b03d2fb12

Featured Specs

SKU AU-XPD1
Weight approx. 280 g (0.62 lb) (excluding packing materials)
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 10% to 85% (no condensation)
Dimensions W 97 mm × H 33 mm × D 155 mm
(W 3-13/16 inches × H 1-5/16 inches × D 6-1/8 inches) (excluding protruding parts)
Current consumption 1.8A (total for both USB connectors)
Interface USB Ver3.0 compliant
Memory 1GB or more is recommended
Voltage DC 5V
Connector Configration USB3.0 Type B connector × 2
Card slot PC Card Slot × 1
(Card Bus/PCI Express Base Specification)
PC System Requirements -
OS Windows® 7 Professional (SP1) 32bit/64bit
Windows® 7 Ultimate (SP1) 32bit/64bit
Windows® 8 32bit/64bit
Windows® 8.1 32bit/64bit
Mac OS X 10.7.5
Mac OS X 10.8.5
Mac OS X 10.9.3

Super Fast, Super Reliable

The Panasonic AU-XPD1 P2 Memory Card Drive is a compact, single-slot P2 card reader/writer that uses a USB 3.0 interface, which is fast enough to accommodate expressP2 card data transfer rates up to 2.4 Gb/s. It is compatible with P2 and expressP2 memory cards, as well as microP2 cards when using the optional AJ-P2AD1G adapter. Two USB 3.0 ports are provided on the device; one for transferring data and one for powering the device from your computer or an AC adapter. For computers without USB 3.0 support, the device is backward compatible with USB 2.0.
