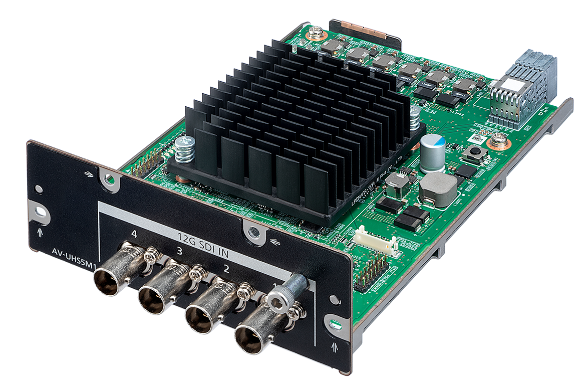

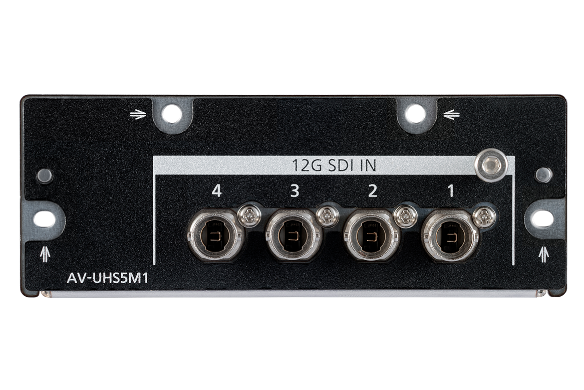

AV-UHS5M1 12G/3G/HD-SDI Input Expansion Card
$4,500 MSRP
The AV-UHSM1G SDI input expansion card adds 4 x HD-SDI, 3G-SDI or 12G-SDI video inputs to your AV-UHS500 live production professional video switcher. One or two of these upgrade cards can be installed in the UHS500.
- 3G or 12G-SDI x 4 inputs, frame synchronizer
- U/C, color correction
- SDR/HDR conversion
- ITU-R BT.709/BT.2020 conversion compatible
Featured Specs
| SKU | AV-UHS5M1G |
|---|---|
| Weight | Approx. 371 g (Approx. 0.82 lbs.) |
| Dimensions (W x H x D) | 112 mm x 42 mm x 167 mm |
| Power consumption | 15 W 1.2 A |
| SDI Input | 4 lines • Connectors: BNC x 4 • Frame synchronizer function • Up-converter fitted. • Color space conversion function • Color corrector fitted. |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Humidity | 10% to 90% (no condensation) |
| SDI Inputs | SDI IN 1 to SDI IN 4 Terminals 12G-SDI: 12G Serial digital, SMPTE ST 2082-10 standard complied with • 0.8 V [p-p] ± 10% (75 Ω) • Automatic equalizer 80 m (when the cable is used) 3G-SDI: 3G Serial digital, SMPTE292 standard complied with (Level-A/Level-B) • 0.8 V [p-p] ± 10% (75 Ω) • Automatic equalizer 100 m (when the cable is used) HD-SDI: HD Serial digital, SMPTE292M standard complied with • 0.8 V [p-p] ± 10% (75 Ω) • Automatic equalizer 100 m (when the cable is used) |
| Ambient Operating Humidity | 10% to 90% (no condensation) |
| Power supply | DC 12 V Supplied by AV-UHS500 |
| Ambient Operating Temperature | 0°C to 40°C (32°F to 104°F) |
