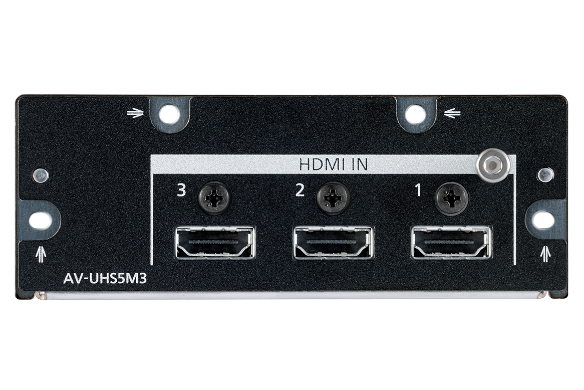

AV-UHS5M3 HDMI Input Expansion Card
$4,000 MSRP
The AV-UHSM3G HDMI 2.0 Input expansion card adds 3 HDMI 2.0 inputs for HD or 4K video input to your AV-UHS500 live production professional video switcher. One or two of these upgrade cards can be installed in the AV-UHS500 video switcher.
- HDMI 2.0 x 3 inputs
- Scaler for each channel
Featured Specs
| SKU | AV-UHS5M3G |
|---|---|
| Weight | Approx. 353 g (Approx. 0.78 lbs.) |
| Dimensions (W x H x D) | 112 mm x 42 mm x 166 mm |
| Power consumption | 16 W 1.3 A |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Humidity | 10% to 90% (no condensation) |
| Power Supply | DC 12 V Supplied by AV-UHS500 |
| HDMI Input | Mode: Full/Fit-H/Fit-V • Connectors: HDMI x 3 • Frame synchronizer function • Color corrector fitted. • Scaler and Color space conversion function • This connector does not support the CPRM technologies. |
| HDMI Inputs | HDMI IN 1 to HDMI IN 3 Terminals - 3 lines Video Format Inputs: 720p/59.94 Hz, 720p/50 Hz, 1080i/59.94 Hz, 1080i/50 Hz, 1080p/59.94 Hz, 1080p/50 Hz, 1080p/29.97 Hz, 1080p/25 Hz, 1080p/24 Hz, 1080p/23.98 Hz, 2160p/59.94 Hz, 2160p/50 Hz, 2160p/29.97 Hz, 2160p/25 Hz, 2160p/24 Hz, 2160p/23.98 Hz PC Format Inputs: 4K (3840 x 2160, 60 Hz), WQHD (2560 x 1440, 60 Hz), WUXGA (1920 x 1200, 60 Hz), UXGA (1680 x 1200, 60 Hz), WSXGA+ (1680 x 1050, 60 Hz), SXGA (1280 x 1024, 60 Hz), WXGA (1280 x 768, 60 Hz), XGA (1024 x 768, 60 Hz) |
| Ambient Operating Temperature | 0°C to 40°C (32°F to 104°F) |
