Wide Angle 4K PTZ Camera with IP Streaming
Compact 4K PTZ camera with high-quality video output that excels in live production. The AW-UE4 is ideal for spaces both large and small, with a wide-angle of view perfect for huddle spaces or e-sports production.
- Ultra wide-angle lens with 111° field of view
- Supports 4K/30p video output
- Video output via 3 interfaces, including HDMI, LAN & USB
- Supports PoE or USB power options
- AW-UE4K (black) / AW-UE4W (white) 4K Professional PTZ Remote Camera
.jpg?width=42&height=25&name=0a2c763c0bf0a3edb3e77f884df1c8e4f3af0a32%20(1).jpg){kind=small}
Featured Specs
| SKU | AW-UE4 |
|---|---|
| Dimensions (W x H x D) | 4-53/64 inches x 5-5/32 inches x 5-11/32 inches (123 mm x 131 mm x 136 mm) |
| Footnote | Preliminary specifications are subject to change without prior notice. |
| LENS | Digital zoom: 4x |
| Internal Microphone | Yes (with mute function) |
| VIDEO OUTPUT | HDMI, IP, USB |
| Power Requirements | DC 5 V (USB) DC 42 V - 57 V (PoE) |
| Tilting Range | ±25° (manual) |
| Imaging Sensors | 1/2.5-type MOS |
| Panning range | ±110° (manual) |
| Camera/pan-tilt head control | Manual adjustment |
| Angle of View Range | 111° *All specifications are preliminary and subject to change without prior notice. |
Zoom Certified USB Camera
The AW-UE4 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free PTZ Virtual USB Driver software, the AW-UE4 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.
With Zoom certification and a dedicated mode (USB: Video Conference), the AW-UE4W/K is ideal for web conferencing.

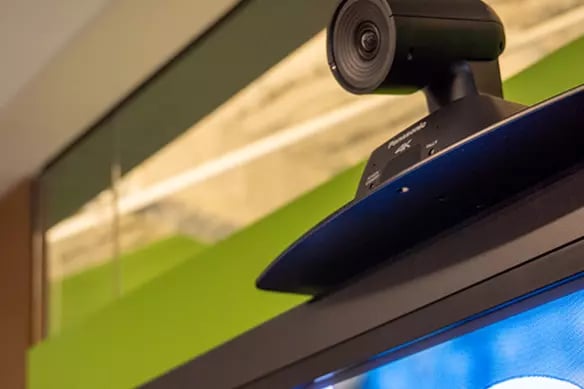

Ultra-Wide Angle Captures the Full Picture
111° horizontal viewing angle enables the entire space to be captured, regardless of the installation position. This wide-angle field of view makes the AW-UE4 an ideal camera for huddle rooms, conference rooms, and areas requiring a wide reference view.
Versatile Video Outputs for a Range of Video Productions
Take your pick when selecting video outputs. The AW-UE4 outputs video via HDMI, LAN and USB-C, giving you a range of options for current camera installations, while also preparing you for future video workflows.

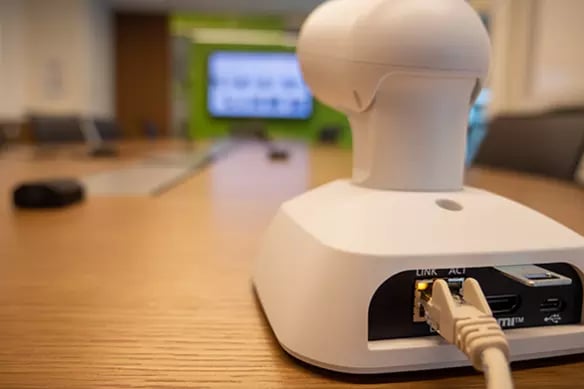

Single Cable Connectivity via PoE
The UE4 supports PoE or USB power, allowing video transmission, camera control and power all through a single cable. In addition to PoE power, power via a USB cable is also supported to enable operation without the need for connecting an AC adapter.

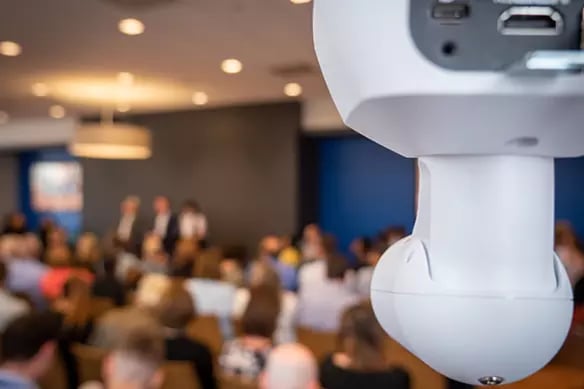

Flexible Installation Options
The AW-UE4 can be installed in the spaces you need it. It can be placed on a desktop, attached to a tripod, hung from the ceiling, or even mounted on the wall. It's small form factor and wide-angle lens provides you remarkable flexibility, ensuring that everything makes it in the shot.
Multiple Control Options
The AW-UE4 can be controlled via the web browser when connected to the network, allowing for quick and easy camera movement, preset access, and image adjustments. Additionally, the camera can be controlled using the AW-RM50 IR remote control and the AW-RP60 hardware-based camera controller. These control choices make it easy to integrate the UE4 into your video production workflow.
Live Streaming Made Easy
The AW-UE4 PRO PTZ camera boasts high-performance operability through RTMP / RTMPS compatibility for direct upload and steaming of videos to livestreaming services such as YouTube, Facebook Live and other services that utilize RTMP / RTMPS for video transmission.
High-Quality Video Output Formats
Enables 3840 x 2160 4K output and a variety of other formats.
Intuitive Web Control Interface
When connected to an IP network, the AW-UE4 camera can be accessed through the web browser. The camera can be setup and controlled via the web interface. Presets can also be created and recalled.
Enterprise-Grade Camera
Flexible camera workflows are enabled by simple connectivity and installation. Whether being deployed by a system integrator across an entire campus or installed in a single conference room, the AW-UE4 helps keep it simple. With PRO PTZ camera DNA, you can count on the UE4 providing high-quality video performance day-in and day-out.
![Digital Pan, Tilt & Zoom [min-E PRO PTZ]](https://connect.na.panasonic.com/hs-fs/hubfs/PCONA%20-%20Panasonic%20Connect/PCONA%20-%20PIVS%20-%20Video%20-%20PTZ/cheap_ptz_camera_for_live_streaming_video_production_digital_pan_scan_4k_sensor_technology.png?width=584&height=389&name=cheap_ptz_camera_for_live_streaming_video_production_digital_pan_scan_4k_sensor_technology.png)
Digital Pan, Tilt & Zoom [min-E PRO PTZ]
Equipped with digital zoom for magnification up to 4 times to capture distant subjects clearly. Expanded images can also be manipulated for pan and tilt-like effects to capture images from a variety of angles. A powerful 4K sensor enables pan and scan functionality, allowing you to move around a source video image without reducing the quality of the output.
Integrated Stereo Mic
Capture it all with the AW-UE4 integrated stereo microphone. Includes a privacy mute mode and ALC function.
Upgrade Your AW-HE2 Camera for the 4K IP World
Video integrators have been asking for an upgrade for the AW-HE2 camera. We are now proud to introduce the AW-UE4 as an HE2 alternative. With many upgrades and a powerful new 4K sensor, the UE4 is the ideal replacement for the discontinued AW-HE2.
Work Hard, Play Hard.
With the compact size and versatility of the UE4 body design, it is the perfect remote camera for recording / streaming everything from lectures and meetings to esports and other live productions.
