AW-SF100 PTZ Camera Auto Tracking Software 1
AW-SF100 PTZ Camera Auto Tracking Software 2
AW-SF100 PTZ Camera Auto Tracking Software 3

PTZ Camera Auto Tracking Software

SKU:

  • AW-SF100
  • AW-SF200
Starts at $1,575 MSRP | 90-Day Free Trial

Automate your robotic camera operation with AW-SF100, a state-of-the-art auto tracking software option for Panasonic PTZ robotic cameras. Using this software helps dramatically simplify PTZ camera operation in locations such as classrooms, lecture halls, auditoriums, conference rooms and stage environments. Utilizing a combination of tracking methods including body template matching, facial detection and deep learning, cameras can be automated to keep track of a speaker or lecturer, automating camera control while still delivering high production value.

Contact Sales Download

Try the Auto Tracking Software Free for 90 Days!

See if the Panasonic Auto Tracking software is right for you. Download it now and take advantage of a 90-day free trial!

  • Upgrade your current Panasonic PTZ camera or camcorder with NewTek NDI®|HX
  • Allows your Panasonic PTZ camera or camcorder to serve as a live video input for any NDI® compatible hardware or software from anywhere on your network
  • PoE+ for Power, Ultra Low Latency Audio/Video, Tally & Control via a single ethernet cable (PTZ cameras)
  • Enables automatic camera discovery on the network via NDI®
  • Upgrade available for the following Panasonic cameras: AW-UE150, AW-HE130, AW-UE70, AW-HE42, AW-HE40, AW-HE38, AG-CX10, AG-CX350, AJ-CX4000, AW-HE145, AW-UE40, AW-UE50, AW-UE80, AW-UE100

built-in-auto-tracking-infographic-583x451

Built-in Auto-Tracking Feature

The AW-UE40, AW-UE50 and AW-UE80 now also have the option for built-in auto-tracking, with the ability to track one-person at a time, within frame, without an external PC or server. This auto-tracking feature has quick response times and accurate human body recognition – perfect for corporations, colleges/universities, and other facilities that rely on presentation spaces. Panasonic Connect also offers external, software-based auto-tracking, like the AW-SF100, ideal for presentations with multiple people and cameras.

PRO PTZ Camera Auto Tracking

The use of high-performance motion detection and high-accuracy facial recognition enables high-precision auto tracking of the subject with minimal tracking errors, regardless of the direction the person is facing, even in situations where a lecturer is writing on a blackboard with his/her back to the camera. In addition, since this function does detection/tracking with streaming video from the camera, it is not necessary to have the video capture board typically needed for capture on a PC. This reduces the processing load for video capture, thereby eliminating the need for a high-performance PC.

CISCO Live

Utilizing a template matching and motion detection technology in conjunction with high quality streaming video over IP, the AW-SF100 auto-tracking software allows for automated tracking of the person/object without the need for any external devices or transmitters. The tracking technology is fine-tuned to keep tracking a person even when he/she turns away from the camera. Though one PTZ camera works at one time on one software, up to 10 PTZ cameras can be registered to one software, which helps you to switch between the cameras with just a few clicks.
auto_tracking_without_a_dongle_no_mat_auto_start_face_detection_facial_recognition_technology-01-01

Easy to Use Software

The auto-tracking settings can be easily adjusted with an intuitive GUI which only highlights the necessary icons to minimize the setup labor and assist you in smooth operation. Tracking adjustment tools, such as masking, limiters, tracking disable zone and sensitivity level adjustment are also available.
panasonic_camera_hd_crop_autotracking_software_solution_for_ptz_cameras

4K Crop Tracking

Utilizing the auto tracking software with the AW-UE150 PRO PTZ camera enables tracking of up to 3 people by utilizing the 4K crop feature.

Auto Zoom

If you enable the “Auto” button at the bottom of the zoom slider on the GUI, the automatic zoom adjustment function will work to keep the size of the subject constant. The size of the subject can also be changed from the Auto Zoom Size according to the purpose and situation. Even if the subject moves back and forth as well as left and right at a new product launch event at a company or a lecture at a university, it is possible to track and shoot the subject with the composition you want.

Link with a wide-angle camera

By linking a wide-angle camera as a bird's-eye view camera, you can improve the stability of the tracking function. As long as the bird's-eye view camera captures the subject, it will immediately rediscover the tracking subject even if the tracking camera loses its target and resume tracking. The bird's-eye view camera’s images can be used not only for tracking correction, but also for confirming the overview of the shooting and for live-streaming. It will support efficient camera operation in video production sites where mistakes cannot be tolerated, such as live streaming.

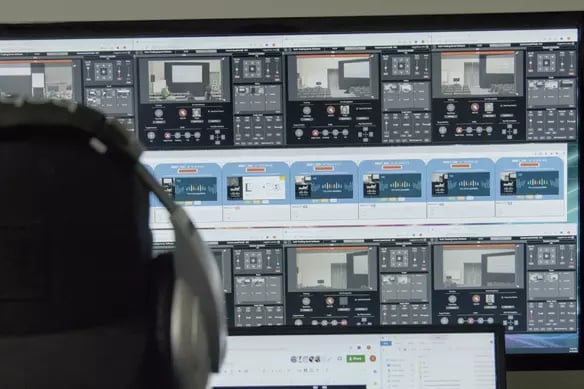

conference_session_automated_recording_breakout_session_camera_solution_operator_livestreaming_made_easy-04_1

AW-SF200: Auto Tracking Server

The auto tracking server brings a new dimension to your live production. Whether you are covering an entire campus of lecture halls or a multitude of breakout sessions at an exhibit hall, it helps reduce the complexity of camera operation at such a massive scale. Camera operation can simply run on autopilot, and the amount of resources needed for camera monitoring can be heavily reduced.

Related Videos

What is the best auto tracking software for automating Panasonic PTZ camera movements?

The use of high-performance motion detection and high-accuracy facial recognition enables high-precision auto tracking of the subject with minimal tracking errors, regardless of the direction the person is facing, even in situations where a lecturer is writing on a blackboard with his/her back to the camera. In addition, since this function does detection/tracking with streaming video from the camera, it is not necessary to have the video capture board typically needed for capture on a PC. This reduces the processing load for video capture, thereby eliminating the need for a high-performance PC.

Easy to Use Software

The auto-tracking settings can be easily adjusted with an intuitive GUI which only highlights the necessary icons to minimize the setup labor and assist you in smooth operation. Tracking adjustment tools, such as masking, limiters, tracking disable zone and sensitivity level adjustment are also available.

IP-Based Software: Remote Operation

Adoption of IP-based software brings you system flexibility and allows for IP connection (IP streaming/IP control), installation/operation of the camera in a classroom in a remote location.

Simple Installation

If the Auto-Tracking Software is installed on a PC*1 or Server, it is possible to easily set up an auto tracking system by connecting an AW-UE70W/K 4K integrated camera or an AW-HE40 Series or AW-HE130W/K HD integrated camera. New installation of sensors and other equipment are not necessary. Since the system configuration is simple and new devices do not need to be added, the initial cost can be reduced.

  • *1: This refers to the application version. If the Web application version is to be used, the Auto-Tracking Software is installed on an HTTP server and used from there.

PC, Web or Server Based Options

aw-sf100_aw-sf200_usage_examples
You can choose to use AW-SF100 as a Web application, so it also supports control from a tablet, smartphone, desktop PC, etc. Providing centralized control of multiple cameras, AW-SF200 uses a floating license for flexible operations matched to the user environment.

AW-SF100 System Example: Lecture Capture (Classroom)

aw-sf100_lecture_capture_setup
Auto tracking and control of one camera with one PC.

AW-SF200 System Example: Lecture Capture (Entire Campus)

aw-sf200_lecture_capture_server_campus_install
Use of central servers for simultaneous auto tracking and centralized control of multiple cameras in a large hall and cameras in multiple classrooms.
