AK-UC3300 4K HDR Studio Camera System

4K HDR Studio Camera System

SKU:

  • AK-UC3300
The AK-UC3300 4K studio camera system is designed for professional broadcast use. Equipped with a 11-megapixel sensor, it is ideal for high-resolution 4K video shooting. A 2x HD high-speed video shooting function provides excellent operability when shooting rapid movements such as during sports and live events.

  • 4K video output with horizontal / vertical resolution of 2,000 TV lines with a large 11-megapixel image sensor.
  • Supports 1/100 second high-speed reading to rolling shutter distortion.
  • Supports High Dynamic Range (HLG) and ITU-R BT.2020 wide color space.(with AK-UCU600 connected)
  • Supports HD Hi-Speed (2x).(with AK-UCU600 connected)
  • 12G-SDI output/ TICO over SDI output /(with AK-UCU600 connected).SMPTE ST2110 supported with optional(with AK-NP600).
AK-UC3300_Video_381x295_4k

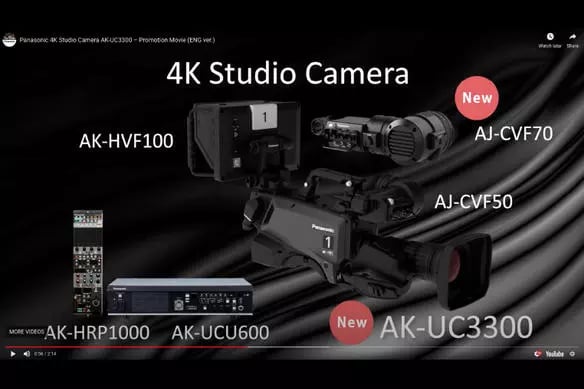

Upgrade to a Studio Camera that Delivers Today and For Tomorrow: Shoot HD and 4K with the AK-UC3300

Capture memorable moments with the AK-UC3300 studio camera system from Panasonic. Designed to deliver HD and 4K video, our latest studio camera is ideal for shooting a variety of productions for TV broadcast, worship services, education and more.
Breaking_News_381x295_4k

Realize Excellent Color Reproduction with High Sensitivity and Low Noise

The AK-UC3300GJ/UC3300GSJ 4K Studio Camera is equipped with a large 11-megapixel sensor. Oversampling obtains high-resolution 4K video shooting with a horizontal resolution of 2,000 TV lines while an S/N ratio of 62 dB or more is maintained at high sensitivities. In addition to the 2x speed HD high-speed shooting function, the skew reduction function realized through the high reading speed (1/100 of a second) provides excellent operability when shooting rapid movements such as during sports and live events.

Supported Formats

Table

UHD 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/23.98p, 2160/29.97PsF, 2160/25PsF, 2160/23.98PsF, 2160/23.98PsF & over 59.94i
HD 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF720/59.94p, 720/50p
HD (High Speed) 1080/59.94p-120fps, 1080/50p-100fps, 1080/59.94i-120fps, 1080/50i-100fps, 720/59.94p-120fps, 720/50p-100fps
