4K HDR & HD Slow Motion Camera System
The AK-UC4000 camera offers the high video quality that is only possible with a large sensor, along with a wide range of 4K acquisition with the latest functions such as HDR, BT.2020 and high-speed shooting. The camera keeps up with diversifying systems with the AK-UCU700 series camera control unit (CCU) which includes options for 25G ST 2110, Dante audio and streaming with SRT and NDI, making it suitable not only for studio production but for a wide range of operations such as sports and live events.
*The AK-UC4000B is identical to the AK-UC4000 but is not compatible with the AK-HBU500 build up kit.
- 4.4K Sensor Camera with 2/3 type B4*Output from the AK-UCU600 Camera Control Unit.
- UHD 12G-SDI (x2)
- 2x, 3x, or 4x HD Slow Motion Output*6
- SMPTE 2110 MoIP Upgrade Path
- Supports HDR(HLG) and ITU-R BT.2020.
Featured Specs
| SKU | AK-UC4000 | AK-UC4000B* |
|---|---|---|
| Power supply | Spec DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz (when connecting to an AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ) |
Spec DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz (when connecting to an AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ) |
| Power consumption | 119 W (maximum for the camera only, when connecting to an external 12 V) 360 W (when connecting to an AKUCU600PJ/ AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ) |
119 W (maximum for the camera only, when connecting to an external 12 V) 360 W (when connecting to an AKUCU600PJ/ AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ) |
| Operating temperature | -10 °C to 45 °C (14°F to 113°F) (Preheating required under a temperature 0 °C (32 °F) or below) |
-10 °C to 45 °C (14°F to 113°F) (Preheating required under a temperature 0 °C (32 °F) or below) |
| Storage Temperature | -20 °C to 60 °C (-4°F to 140°F) | -20 °C to 60 °C (-4°F to 140°F) |
| Operating humidity | 85% or less (relative humidity) | 85% or less (relative humidity) |
| Weight | Approx. 4.5 kg (9.90 lb) (body only) | Approx. 4.5 kg (9.90 lb) (body only) |
| Dimensions (W x H x D) | Body only 151 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions) |
Body only 151 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions) |
| Pickup device | 11.14 million pixels, MOS x 1 | 11.14 million pixels, MOS x 1 |
| Optical Filter | CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion ND: CAP, Clear, 1/4, 1/16, 1/64 |
CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion ND: CAP, Clear, 1/4, 1/16, 1/64 |
| Lens Mount | 2/3-type bayonet | 2/3-type bayonet |
| Sensitivity | Two shooting modes [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz) [NORMAL]: F6 (59.94 Hz)/F7 (50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9% |
Two shooting modes [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz) [NORMAL]: F6 (59.94 Hz)/F7 (50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9% |
| Horizontal Resolution | 4K: 2000 TV lines or above (center) AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/ AK-UCU600ESJ output HD: 1000 TV lines or above (center) |
4K: 2000 TV lines or above (center) AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/ AK-UCU600ESJ output HD: 1000 TV lines or above (center) |
| S/N | 62 dB or above | 62 dB or above |
| Horizontal Modulation | 50% or above (27.5 MHz) | 50% or above (27.5 MHz) |
| Gain switching | [NORMAL]: ?6, ?3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 [HIGH SENS]: ?6, ?3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 |
[NORMAL]: ?6, ?3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 [HIGH SENS]: ?6, ?3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 |
| Shutter Speed | ・[59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250,1/500, 1/1000, 1/1500, 1/2000 ・[29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100,1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100,1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500,1/1000, 1/1500, 1/2000 ・[25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125,1/250, 1/500, 1/1000, 1/1500, 1/2000 |
・[59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250,1/500, 1/1000, 1/1500, 1/2000 ・[29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100,1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100,1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500,1/1000, 1/1500, 1/2000 ・[25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125,1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| <HD SDI1> terminal | BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 Ω |
BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 Ω |
| <HD SDI2> terminal | BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 Ω |
BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 Ω |
| <AUX> terminal | BNC x 1 Functions as terminal/ terminal by switching the setting in the menu : 1.5G-SDI: 0.8 V [p-p], 75Ω : VBS signal 1 V [p-p], 75 Ω |
BNC x 1 Functions as terminal/ terminal by switching the setting in the menu : 1.5G-SDI: 0.8 V [p-p], 75Ω : VBS signal 1 V [p-p], 75 Ω |
| <G/L IN/PROMPTER OUT> terminal | BNC x 1 : Tri-level SYNC or BB (black burst) : VBS signal 1 V [p-p], 75 Ω Functions as when standalone, and as when connecting to an AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ |
BNC x 1 : Tri-level SYNC or BB (black burst) : VBS signal 1 V [p-p], 75 Ω Functions as when standalone, and as when connecting to an AK-UCU600PJ/AK-UCU600EJ/AK-UCU600PSJ/AK-UCU600ESJ |
| <MIC 1> terminal | XLR x 1, 3-pin (female) // switchable For ,/ switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected |
XLR x 1, 3-pin (female) // switchable For ,/ switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected |
| <MIC 2> terminal | XLR x 1, 3-pin (female) // switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected |
XLR x 1, 3-pin (female) // switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected |
| <MIC> terminal (front) | XLR x 1, 3-pin Switchable with terminal |
XLR x 1, 3-pin Switchable with terminal |
| <INTERCOM1> terminal | XLR x 1, 5-pin (female) | XLR x 1, 5-pin (female) |
| <INTERCOM2> terminal | XLR x 1, 5-pin (female) | XLR x 1, 5-pin (female) |
| <EARPHONE> terminal | Stereo mini jack x 1 | Stereo mini jack x 1 |
| <OPT FIBER> terminal | Optical composite connector x 1, Tajimi/LEMO | Optical composite connector x 1, Tajimi/LEMO |
| <LENS> terminal | 12-pin x 1 | 12-pin x 1 |
| <VF> terminal | 20-pin x 1 | 20-pin x 1 |
| <VF> terminal (rear) | 29-pin x 1 | 29-pin x 1 |
| <DC IN> terminal | XLR x 1, 4-pin, DC 12 V | XLR x 1, 4-pin, DC 12 V |
| <DC OUT 12 V 1 A> terminal | 4-pin x 1 | 4-pin x 1 |
| <RET CTRL> terminal | 6-pin x 1 | 6-pin x 1 |
| <EXT I/O> terminal | 20-pin x 1, DC 12 V, 0.5 A | 20-pin x 1, DC 12 V, 0.5 A |
| <REMOTE> terminal | 10-pin x 1 | 10-pin x 1 |
| <TRUNK> terminal | 12-pin x | 12-pin x |
| <DC OUT> terminal | 2-pin x 1, DC 12 V 2.5 A | 2-pin x 1, DC 12 V 2.5 A |
| <LAN> terminal | RJ-45 x 1 | RJ-45 x 1 |
| <USB2.0> terminal (host) | Type A connector, DC 5 V, 0.5 A | Type A connector, DC 5 V, 0.5 A |
| Build-up terminal | 20-pin x 1 | Build up Terminal not available on the UC4000B |
| Footnotes | *1: When power is supplied from CCU.*2: A codec developed by intoPIX. Stands for “Tiny Codec”*3: Optional feature scheduled for release in the fall of 2018.***: When in HD Hi-Speed mode. An optional feature, scheduled for release in the fall of 2018.*2: A codec developed by intoPIX. Stands for “Tiny Codec”**: Optional feature with a charge, scheduled for release in the spring of 2019 | *1: When power is supplied from CCU.*2: A codec developed by intoPIX. Stands for “Tiny Codec”*3: Optional feature scheduled for release in the fall of 2018.***: When in HD Hi-Speed mode. An optional feature, scheduled for release in the fall of 2018.*2: A codec developed by intoPIX. Stands for “Tiny Codec”**: Optional feature with a charge, scheduled for release in the spring of 2019 |

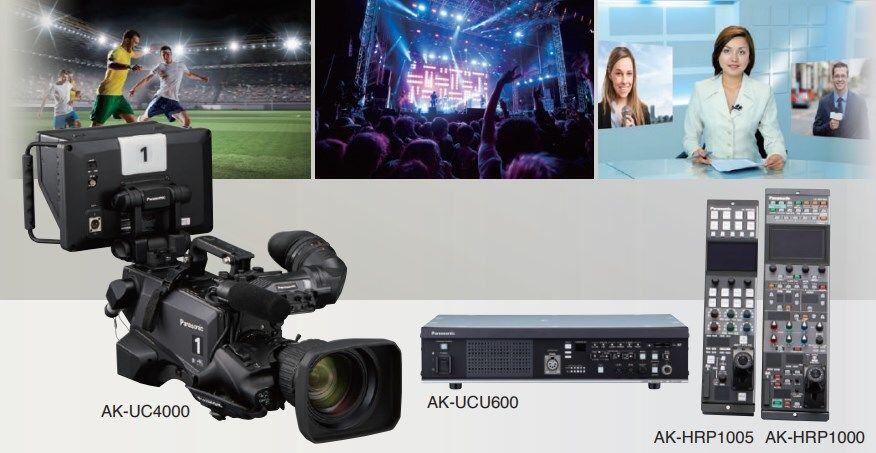

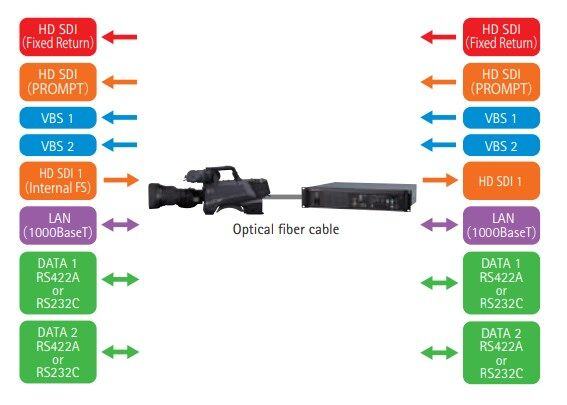

Versatile Systems for Diversified Needs
The AK-UC4000 camera system offers high video quality that is only possible with a large sensor, along with a wide range of 4K acquisition with the latest functions such as HDR (HLG), BT.2020 and high-speed shooting*1. The camera keeps up with diversifying systems with features such as 12G-SDI, TICO*2 over SDI (4K over 3G-SDI) output and MoIP*3, making it suitable for a wide range of operations such as sports broadcasting, concert IMAG, studio production, live events and so much more. With high video quality and a system that can be adapted to various situations, this camera provides the level of high-end production that is expected in the 4K age.
V-Log for Live Production Workflows
With available V-Log, the AK-UC4000 becomes fully compatible with the CINELIVE workflow of the VariCam LT, as well as the EVA-LIVE workflow of the EVA1. This allows for accurate camera color matching across your production and opens up a world of possibilities. Combined with its recent official approval by the Netflix Post Alliance, the AK-UC4000 joins the list with the already approved Cinema VariCam lineup and the EVA1 cameras as another powerhouse for creating Netflix approved content.

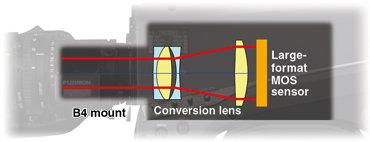

Advanced B4 Lens Mount
The 2/3 lens can be used without an external adapter, and the internal lens is specially designed for large sensors, ensuring high video quality. This new acquisition method maximizes the effectiveness of incident light. With the exclusive Chromatic Aberration Compensation (CAC) technology, communication between the lens and camera allows for the deployment of a sophisticated algorithm that automatically compensates for the registration error caused by lens chromatic aberration and minimizes the circumjacent blur.

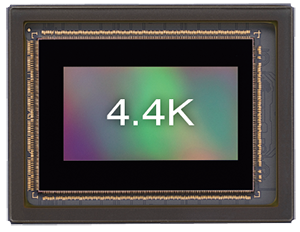

High Resolution: Large 4.4K Sensor
With a newly developed large format 4.4K MOS sensor, the AK-UC4000 realizes ultra-high-definition resolution, high sensitivity, low noise and a wide dynamic range. Two shooting modes can be selected. In High Sense Mode, it is possible to obtain an S/N ratio of 62 dB or higher while also achieving F10 high sensitivity (in HD mode). The result is low-noise and high-image-quality video. This camera’s normal and low skew reading speeds are around 1/2 and 1/3 of those on a standard camera (1/60 of a second) respectively. The skewing characteristic of MOS sensors has been reduced by reading out the MOS sensor signal at high speed.
2000 TV Line Resolution
Beyond 4K sampling achieves a resolution of 2000 TV lines in the horizontal and vertical directions for a richly detailed picture of a wide range of subjects in a variety of settings.
3 Levels of High-Speed Output in HD Mode
High-speed*1 capture at 1080p, 1080i and 720p is available for sports and other active settings. This feature achieves a richly detailed picture even for fast-moving subjects. 2x, 3x or 4x output can be selected for compatibility with various slow-motion servers, and simultaneously output with standard (1x) output.
HDR (High Dynamic Range) Compatibility
This mode provides rich gradation to render contrast, color, and shadow in dark image areas that could not previously be reproduced due to blackout, thus resulting in more realistic image quality. It supports a variable HDR by adjusting the high dynamic range. In addition, it is possible to configure a system supporting simultaneous HDR/SDR in order to handle production environments with both. SDR image can be adjusted overexposed by offset gain and knee function adjusts bright image as well as HDR.

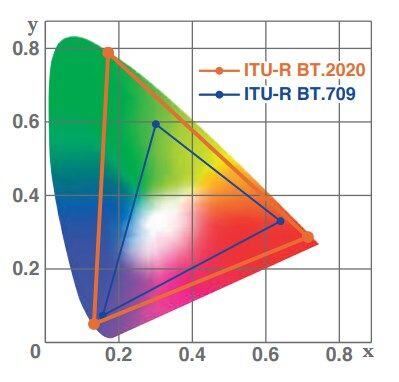

ITU-R BT.2020
This camera is compatible with BT.2020, a color space that can recreate almost every color in the natural world, enabling a wider range of color expression.
Skin Tone Detail Correction

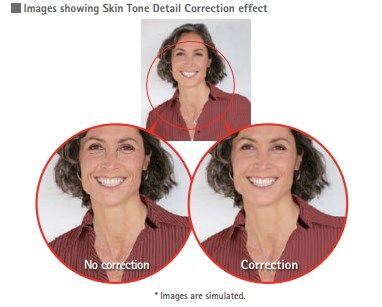

Tone down wrinkles and blemishes in on-air personalities to beautifully shoot natural skin tones. While designed to soften skin tones, the skin tone detail feature can be applied to any hue phase so it could likewise be used to soften areas of other colors (such as green grass). The skin tone detail feature can define three independent skin tone ranges to manage different light levels or different people on camera. A specialized Skintone-get feature finds a specific color in the frame to simplify the setup process and help save you time.
Focus Assist Functions
Quick and accurate focusing is supported with focus assist functions such as Focus Bar (indicates focus level), Focus-in-Red (uses color to indicate areas in focus), MAG (magnifies central portion), and Focus Squares (shows focus status of a screen as a whole). Lenses with autofocus and focus assist capabilities are also supported*5. The Remote Operation Panel (ROP) can also be used to focus and zoom while using the digital lens.
Intercom Connection

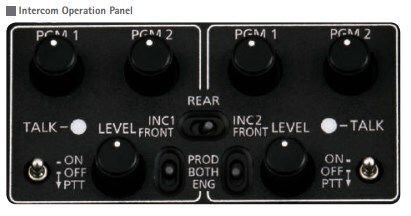

With two independent intercom lines, in addition to Intercom 1 and Intercom 2 switching, an Intercom 1 and 2 mix mode has been added and can be selected to observe the situation. With the Intercom front/rear switch and front volume, it is possible to adjust the intercom audio level even when the camera is being used from the shoulder.
Accessories: AK-HBU500 Camera Build-Up Unit
The build-up unit supports and powers large box-style studio lenses and field lenses and also provides additional accessory power ports and rear controls for the AK-UC4000.
*Not compatible with the AK-UC4000B.
