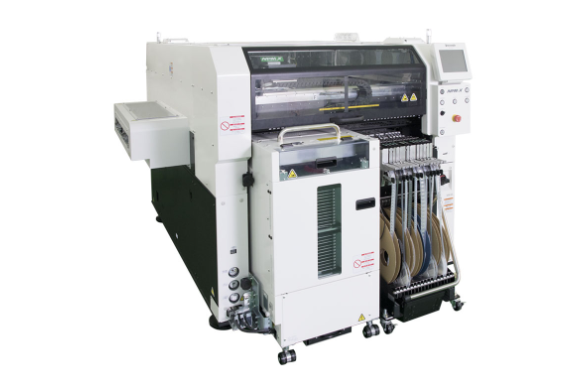

NPM-WX Modular Placement System
The NPM-WX single-beam variant is designed around a stiff frame, constructed of durable materials and built to last. With onboard dual-drive linear motors complimented by light and rigid beam architecture, the NPM-WX introduces new industry-leading options; Linear servo motors with dual-drive Y and High Resolution linear scales in each motor.
Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX sets new industry standards for handling any mix and any volume.
Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX sets new industry standards for handling any mix and any volume.
- Compact footprint - scale production to your factory needs
- Quick-change feeder carts, nozzle banks, and process heads
- AOI information display for closed-loop M2M communication
- 3D Multi Recognition Camera
- High speed placement up to 184,800 CPH
Featured Specs
| SKU | NM-EJM9D |
|---|---|
| Model ID | NPM-WX |
| Model No. | NM-EJM9D |
| PCB Dimensions (mm)* | Single-lane Batch Mounting: L 50 × W 50 ～ L 750 × W 610 2-Position Mounting: L 50 × W 50 ～ L 350 × W 610 |
| PCB Dimensions (mm)* | Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 300 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 300 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 590 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 590 |
| Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA |
| Pneumatic Source * | Min. 0.5 MPa, 200 L /min（A.N.R.) [*1] |
| Dimensions (mm) * | W 1,410 mm [*2] × D 2,570 mm [*3] × H 1,444 mm [*4] |
| Mass | 2,740 kg (Only for main body : This differs depending on the option configuration. |
