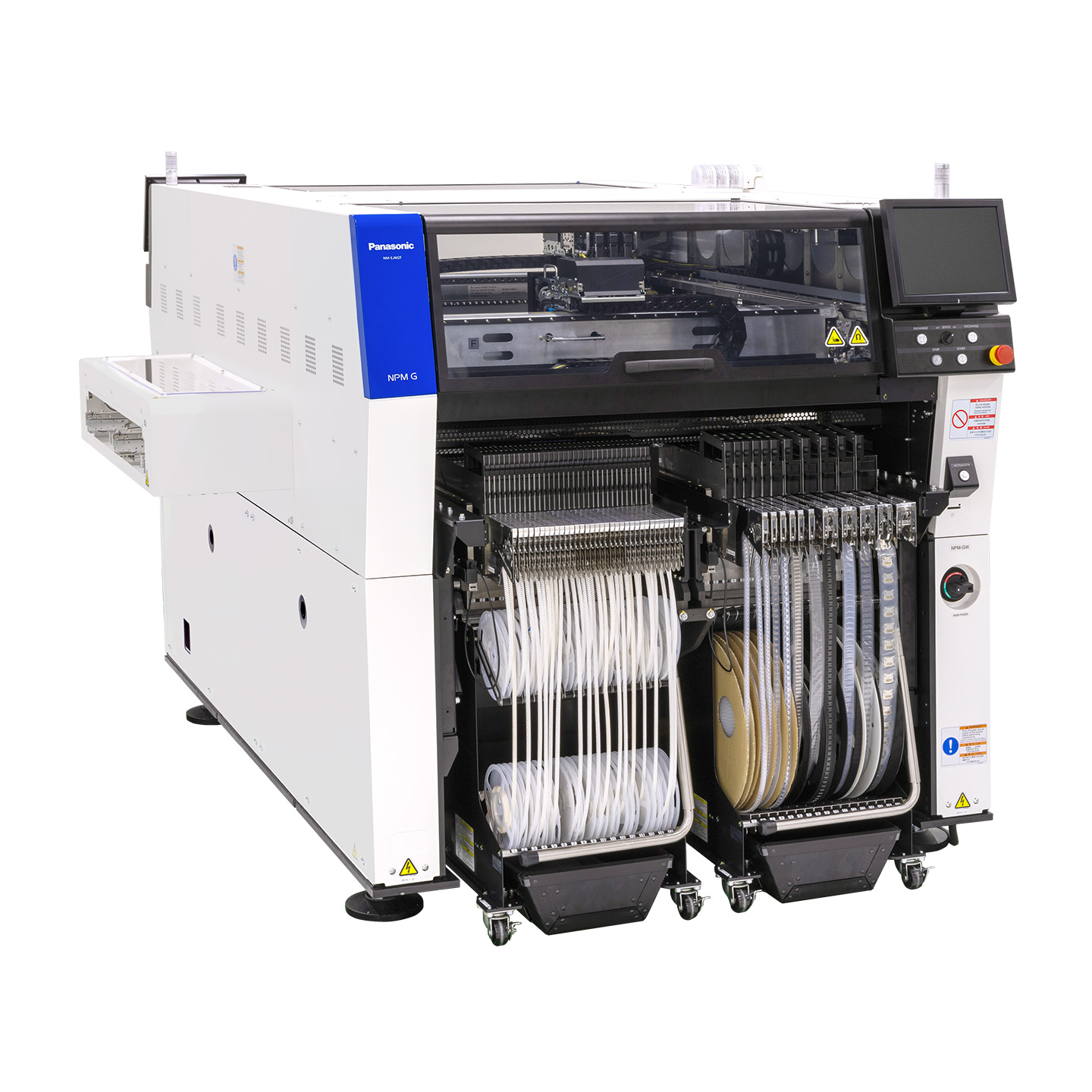

NPM-GW Autonomous High-Capacity Manufacturing Solution
Part of the G-Series, the NPM-GW delivers automated, labor-saving solutions to tackle today’s toughest manufacturing demands. Designed for larger capacity projects, it boosts productivity, enhances PCB adaptability, and enables remote operation. With advanced features like lighter heads, shorter moving distances, and Auto Setting Feeders (ASF), it’s one of the most powerful manufacturing solutions available.
- Auto Setting Feeders (ASF) for faster, more accurate feeding with minimal downtime
- Lightweight heads and higher X-axis acceleration for increased speed and precision
- Advanced PCB adaptability to handle diverse production needs
- Remote operation capabilities for greater flexibility and control
Featured Specs
Download the Full Spec Sheet| SKU | NM-EJM2F |
|---|---|
| Model ID | NPM-GW |
| Model No. | NM-EJM2F |
| PCB Dimensions (mm) | Single conveyor: Batch mounting ：L 50 mm × W 50 mm to L 760 mm × W 687 mm 2 position mounting ： L 50 mm × W 50 mm to L 360 mm × W 687 mm Dual conveyor: Please refer to the specification booklet for details* |
| Electric Source | 3-phase AC 200、220、380、400、420、480 V 2.5 kVA |
| Pneumatic Source | Min.0.5 MPa、200 L / min ( A.N.R. ) [*1] |
| Dimensions (mm) [*2] | W 1 410 mm × D 2 320 mm × H 1 444 mm[*3] / W 1 410 mm × D 2 468 mm × H 1 444 mm[*4] |
| Mass | 2 810 kg [*3] / 2 840 kg [*4] |
