Single-Axis Positioners
The Panasonic Connect series of Tilt-Rotate Positioners are capable of handling payloads up to 1000kg.

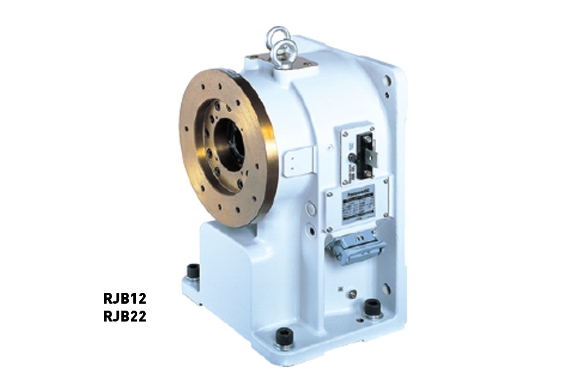

- RJB12 Payload: 250kg
- RJB22 Payload: 500kg

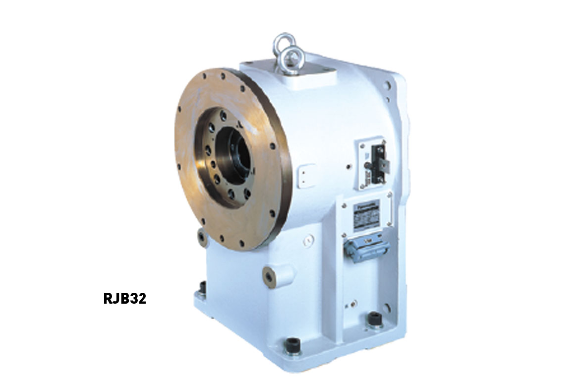

- RJB32 Payload: 1000kg
Featured Specs
| SKU | RJB12 | RJB22 | RJB32 |
|---|---|---|---|
| Model * | RJB12 | RJB22 | RJB32 |
| Payload (kg) | 250kg | 500kg | 1000kg |
| Max Speed Rotation | 190°/s (31 r/min) | 120°/s (20 r/min) | 120°/s (20 r/min) |
| Operating Range Rotation | -3600°+3600° (with multi-rotation data reset function) | -3600°+3600° (with multi-rotation data reset function) | -3600°+3600° (with multi-rotation data reset function) |
| Allowable Torque | 196N · m | 490N · m | 1470N · m |
| Allowable Moment Rotation | 1470N · m | 1470N · m | 6125N · m |
| Position Repeatability | +/-0.05mm (R=250mm) | +/-0.05mm (R=250mm) | +/-0.05mm (R=250mm) |
| Hollow Shaft Diameter | 55mm | 55mm | 75mm |
| Allowable Welding Current | 500 A 60% Duty Cycle | 500 A 60% Duty Cycle | 500 A 60% Duty Cycle |
| Weight | 125kg | 125kg | 225kg |
