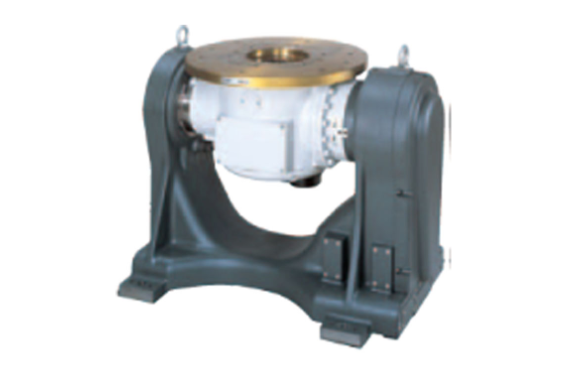

Tilt-Rotate Positioners
The Panasonic Connect series of Tilt-Rotate Positioners are capable of handling payloads up to 500kg.
- RJC62 Payload: 300kg
- RJC72 Payload: 500kg
Featured Specs
| SKU | RJC62 | RJC72 |
|---|---|---|
| Model * | RJC62 | RJC72 |
| Payload (kg) | 300kg | 500kg |
| Max Speed Rotation | 190°/s (31 r/min) | 165°/s (27 r/min) |
| Max Speed Tilt | 125.5°/s (20 r/min) | 90°/s (15 r/min) |
| Operating Range Rotation | -3600°+3600° (with multi-rotation dat a reset function) | -3600°+3600° (with multi-rotation dat a reset function) |
| Operating Range Tilt | -135° to +135° | -135° to +135° |
| Allowable Moment Rotation | 323N · m | 392N · m |
| Allowable Moment Tilt | 882N · m | 1274N · m |
| Position Repeatability | +/-0.05mm(R=250mm) | +/-0.05mm(R=250mm) |
| Hollow Shaft Diameter | 55mm | 55mm |
| Allowable Welding Current | 500 A 60% Duty Cycle | 500 A 60% Duty Cycle |
| Weight | 285kg | 285kg |
